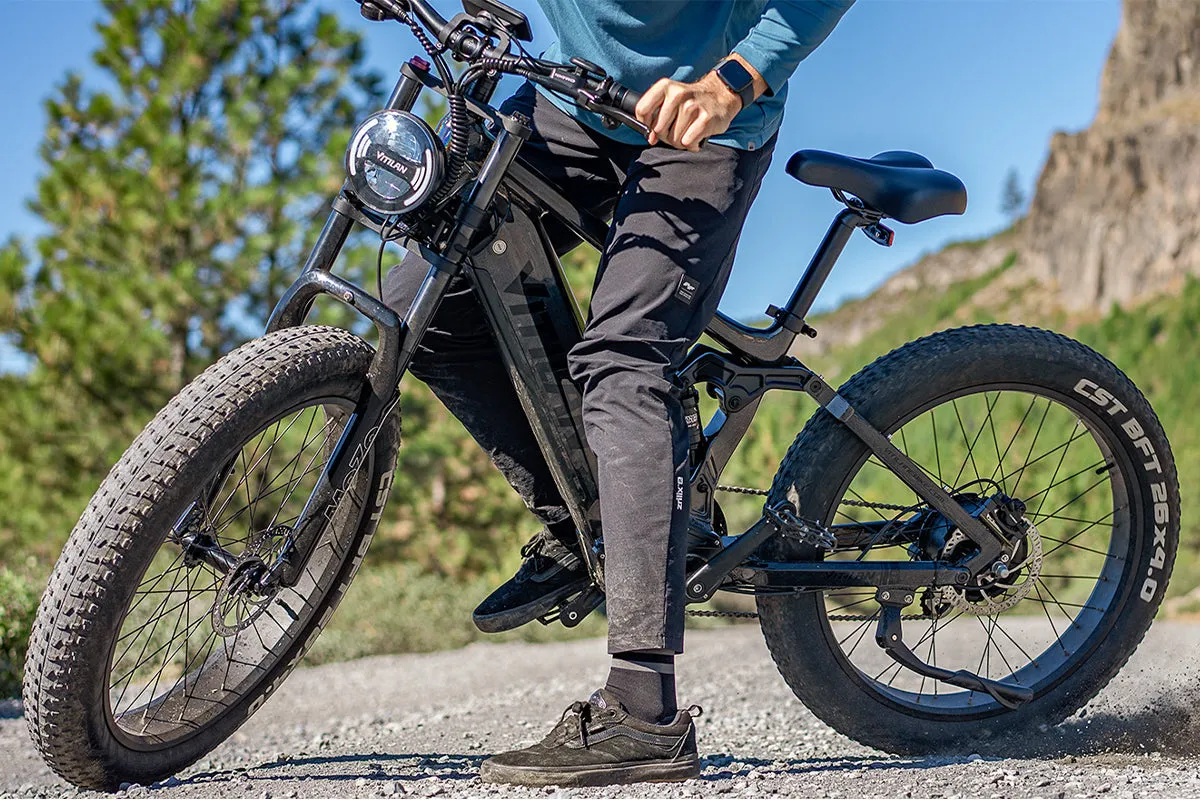

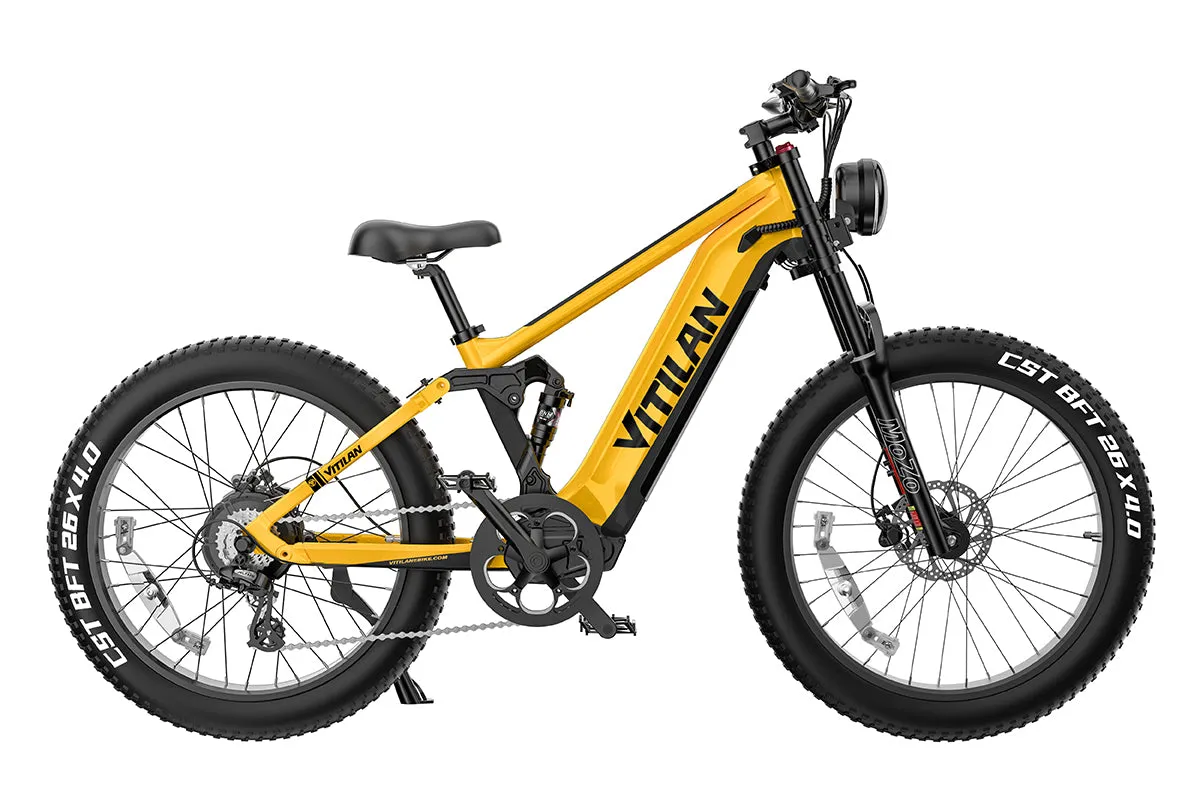

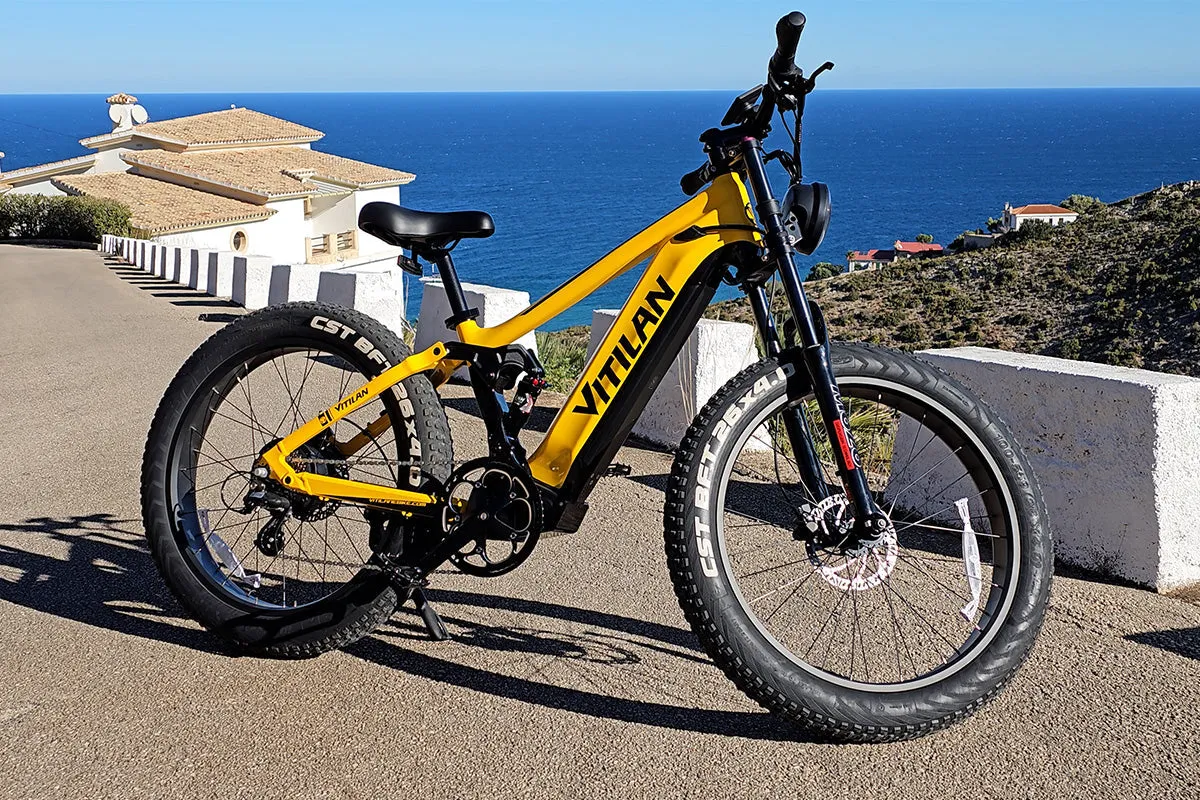

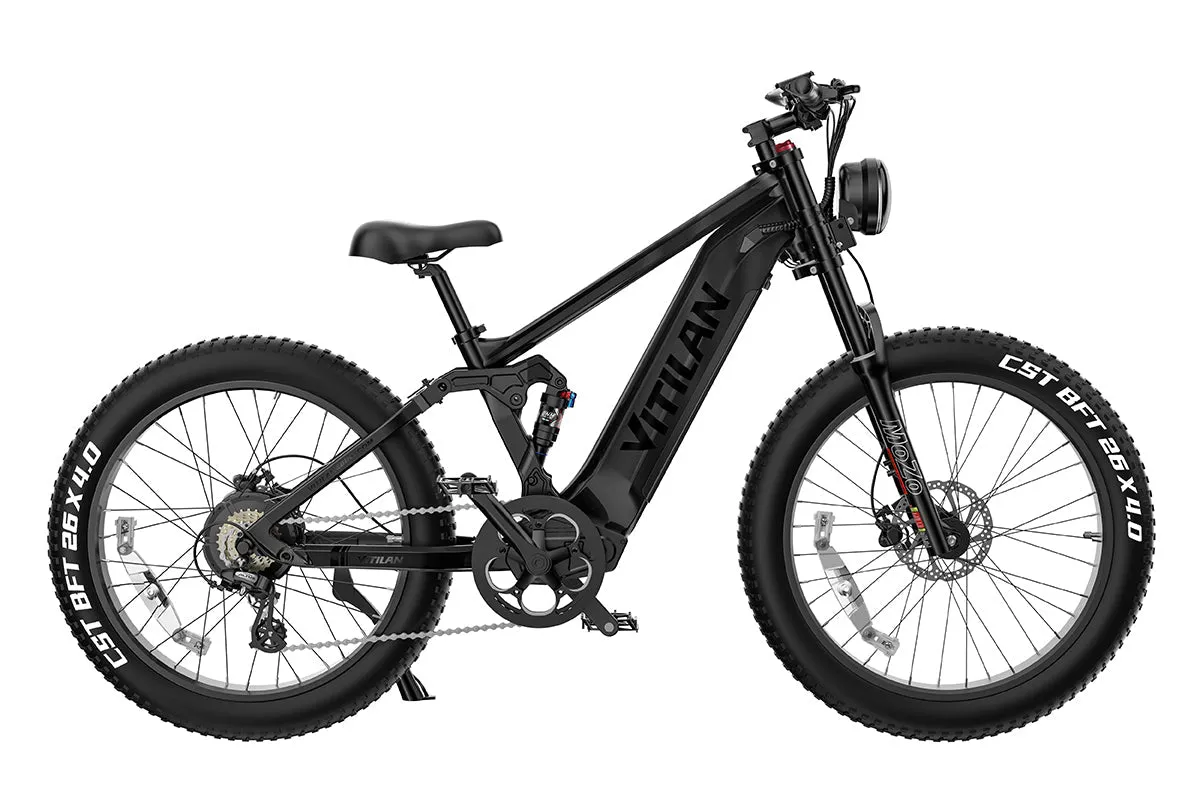

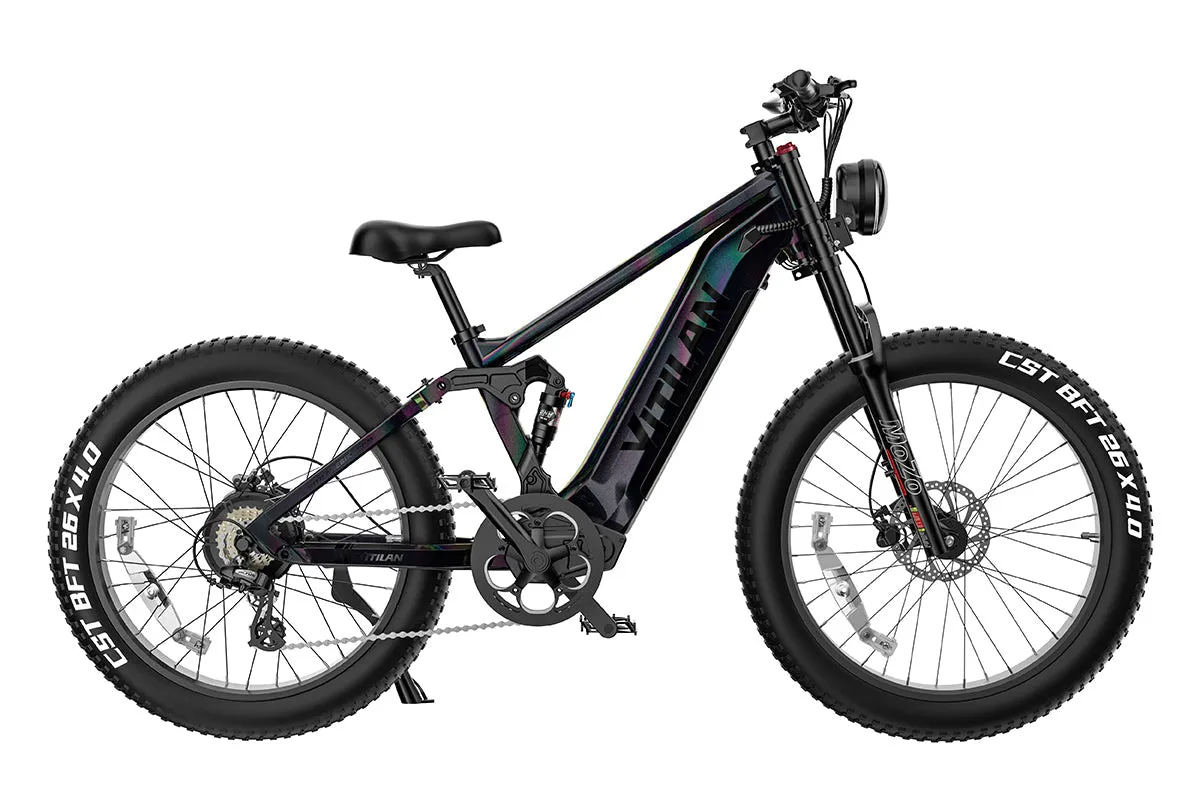

VITILAN T7 Full Suspension Mountain E-bike
Discover the joy of conquering nature on planet's friendliest e-bike with the VITILAN's newest T7, a full suspension mountain e-bike fitted with Bafang motor, hydraulic disc brakes, a 48V 20Ah Samsung battery powering your 65 mile range and Mozo 26" hydraulic dual crown fork, designed to go the distance!
750W BAFANG MOTOR
Ace even 30-degree steep climbs like you are gliding on a neatly laid flat surface thanks to the 750W Bafang motor engineered to reach peak power of 1200W. Its 80Nm torque allows you to effortlessly conquer toughest of terrains at an impressive 28mph.
SAM-SUNG LITHIUM BATTERY
The removable 48V 20Ah SAM-SUNG battery with a 960Wh capacity stores more electricity with a longer service span can give you a 60-80 mile range and lets you explore riding options even as the battery charges away.
MOZO 60mm TRAVE DUAL CROWN FORK
Aping the double shoulder design of your motorcycle, Vitilan T7 boasts of the Mozo 26" hydraulic dual suspension forks with 60mm fork carriers and looks uber cool.
FULL SUSPENSION SYSTEM
Built to handle payload of up to 330lbs, T7 uses manually adjustable dampened forks and a four-link mechanism which allows dissipation of forces and provides high-strength suspension through-out the bike. Engineered to leave you with a comfortable riding experience, this multi-link suspension configuration lets you enjoy a smooth ride even as you cruise through snowy, rough or mountainous trails.
DNM AIR SUSPENSION
Well-adjusted to hype up your recreational rides across all kinds of terrains, T7 utilizes DNM AO-8RC 3-stage adjustable locking pneumonic shocks, to absorb the bumps on the wildest of terrains and gravel filled trails leaving you with a smooth ride.
TFT TRUE COLOR DISPLAY
Get all your ride details real time right on the front display including mileage, speed, battery status and pedal-adjust levels. Turn on/off the headlight and taillight with a simple tap on the display. A handy USB charging port is in place for emergencies.
Highlights:
- Lighting system with 600 lumens LED headlight to illuminate your path
- Shimano 8-speed gear shift system auto-adjusts speed to suit the terrain
- TEKTRO dual piston 180mm hydraulic brake for smooth stops
- Four-link suspension system for stable rides
- Puncture proof tires for longer rides on tough terrains
- Soft bike seat for comfort all the way
- Pedal assist and throttle from a gentle nudge to a powerful push
Specifications:
TECHNICAL
Motor Hub: 48V, 750W (peak 1200W) Bafang Motor, max torque 80Nm
Battery: 48V, 20Ah, 960Wh SAM-SUNG Li-ion Battery
Charger: 54.6V, 3.0A, Operates on 110V-240V AC, 50-60Hz
Display: With Fahrenheit temperature display, with Lishui controller Adjustable steering gear shift Adjustable cruise control
Throttle Assist: Half twist throttle
Headlight: High output integrated LED, IPX6
Pedal Assist Range: 80 Miles
Throttle Range: 60 Miles
Pedal Assist: 1-5 Level, Cadence Sensor
Charging Time: 0-80% 4 Hours, 0-100% 6 Hours
FRAMESETS
Frame: Aluminum alloy, fully integrated & lockable down tube battery
Brake: TEKTRO 180mm front and rear Hydraulic disc brakes
Rims: Aluminum alloy, 36H
IP Level: IPX6
Fork: MOZO Hydraulic suspension with 26'' Dual Shock Forks, with Lock-out with 60MM travel
Tire: CST 26x4.0”, puncture-resistant liner
Shift Lever: Shimano SL-M315, 8-Speed, thumb shifter
Chainrings: 53T
Chain: KMC X8 Anti-Rust Chain
Crankset: Aluminum alloy, 26"*4.0 170mm
Seat Post: Aluminum alloy, 250mm x 33.9mm, quick release clamp
Pedals: full aluminum mountain bike pedals (with pegs)
Max Load: 330lbs
Max Speed: 28MPH
What's in the Box:
1 x VITILAN T7 Full Suspension Mountain E-bike
1 x User Manual
