LIGHTWEIGHT 6061
ALLOY FRAME
30MM DOUBLE
WALL RIMS
DUAL
SUSPENSION
21 SPEED
DRIVETRAIN
The Bike for Everywhere
Take the edge off rough trails, and ride in comfort with a full suspension set-up with the Trail Mountain Bike.

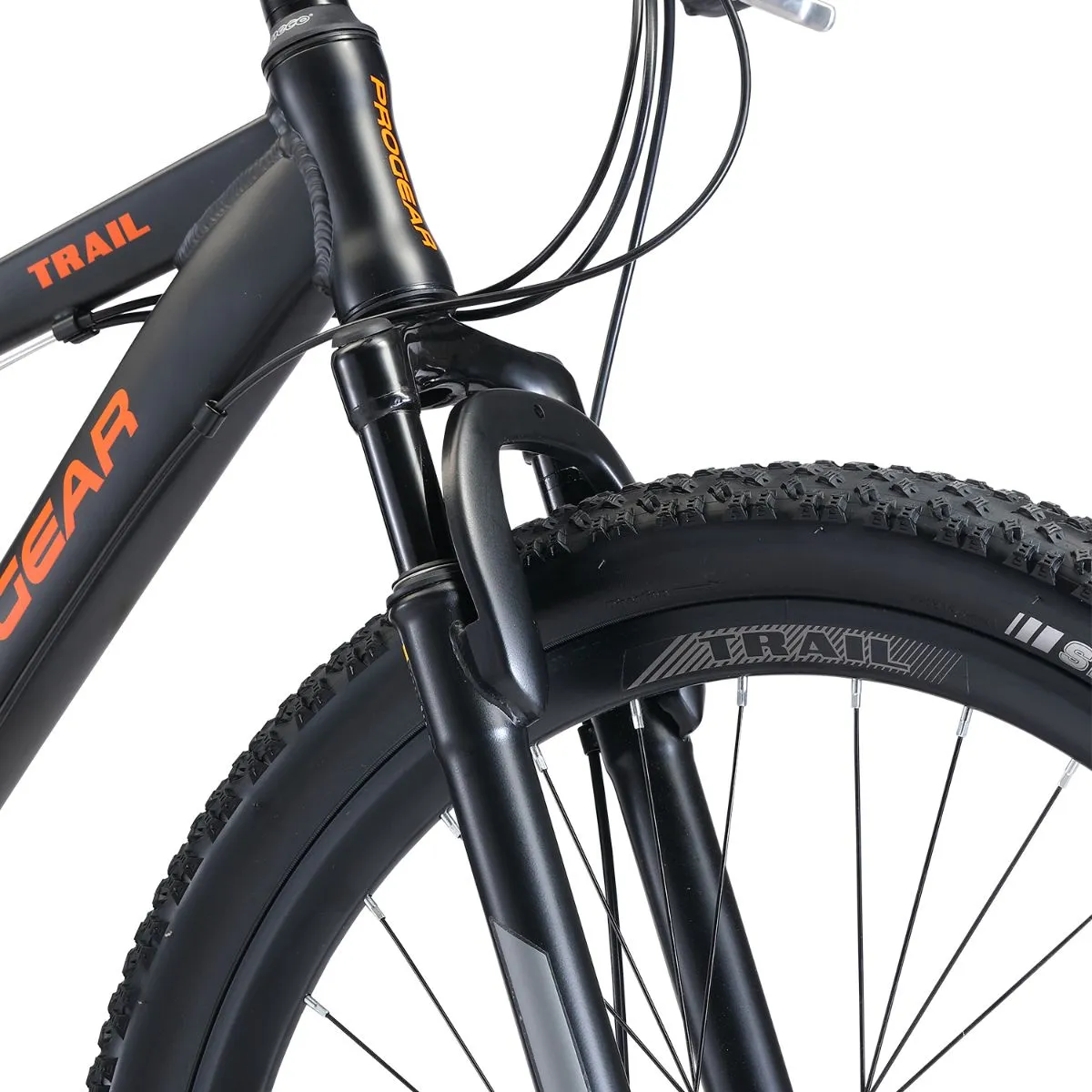

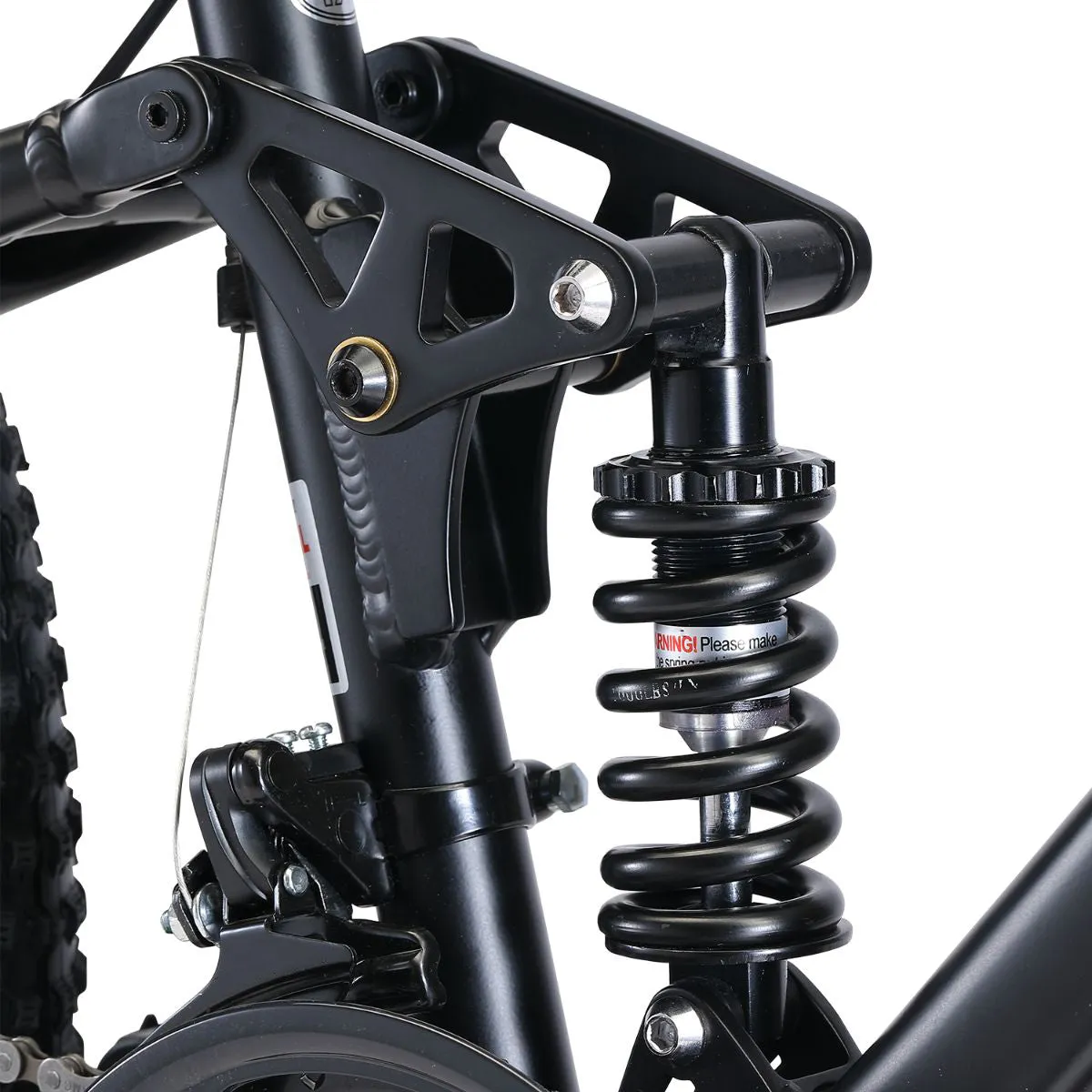

Dual Suspension
Fitted with front and rear suspension, our dual suspension set-up allows you to experience the highest levels of comfort and control to tackle even the most rugged and toughest terrain. Absorb bumps from front and rear wheels with ease while keeping you in close contact and control on the ground for the tricky terrains.
Lightweight 6061 Alloy Frame
Experience less drag on or off the road with a lightweight but durable alloy frame.

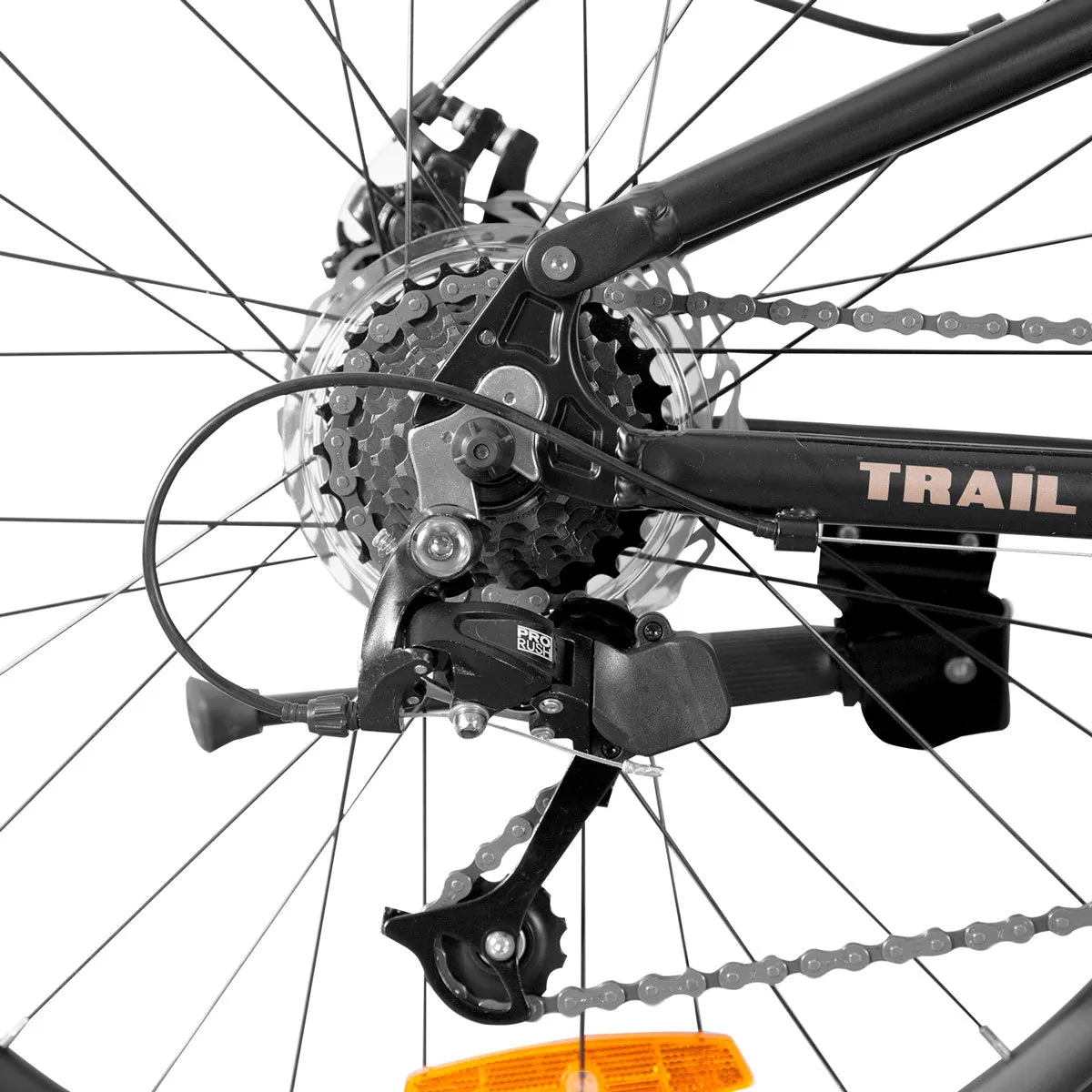

21 Speed Drivetrain
Maintain cadence and find the right gear ratio for any incline with the (3x7) 21 Speed Drivetrain.
Reliable Braking
Experience a smooth and comfortable stop with Front and Rear mechanical disc brakes.These brakes are simple, reliable and easy to maintain.
30mm Double Wall Rims
Our 30mm Double Wall Rims are appropriately sizes for mountain bike riding, for optimum weight and strength.
The Blueprints
An awesome package with the following components:
- A. Removable Bar Ends

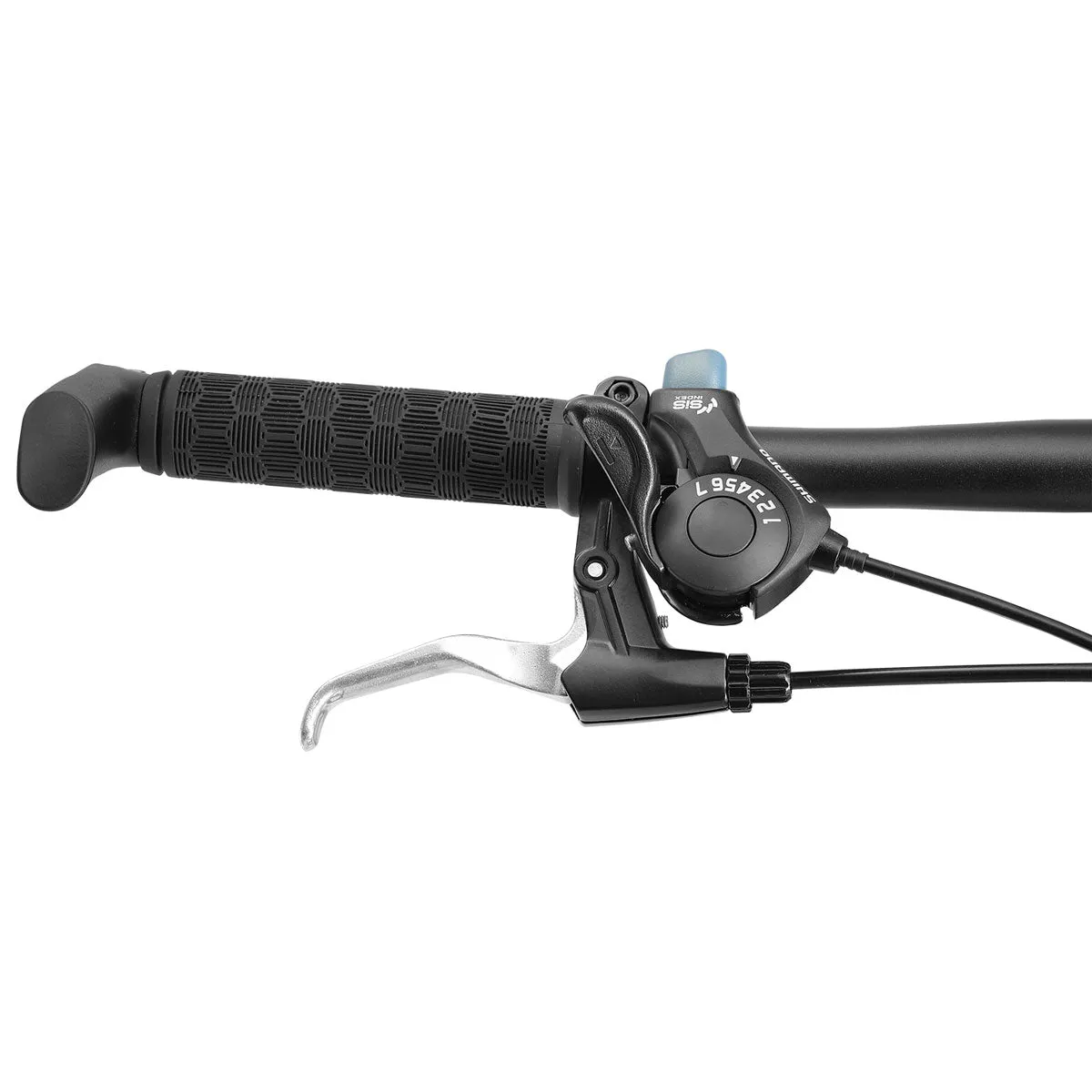

- B. Alloy Brake Levers
- C. Alloy 6061 Alloy Frame
- D. Quick Release Adjustable Seat-Post
- E. 21-Speed Drivetrain
- F. Front Mechanical Disc Brake
- G. 30mm Double Wall Rims
Where to ride?
Specification
Technical Specifications
| Frame Sizes | 17", 19" |
|---|---|
| Frame | Alloy 6061 MTB Dual Suspension Frame |
| Fork | Suspension Forks |
| Grips | Rubber, Black, 125mm |
| Handlebars | Alloy Handlebar with Bar Ends |
| Brakes | Front and Rear Alloy Disc Brakes (160mm) |
| Brake Levers | Alloy Brake Levers |
| Chainwheel | 3/32"—24/34/42T—170L |
| Gear Shifters L | 3-SP positioning thumb shifter |
| Gear Shifters R | 7-SP positioning thumb shifter |
| Front Derailleur | ￠31.8 clamp 42T |
| Rear Derailleur | 7-SP index |
|---|---|
| Freewheel | 14-28T 7-SP |
| Saddle | Progear Sports Saddle |
| Seat Clamp | Alloy Quick Release |
| Wheels | Alloy rims, 26" |
| Tyres | Kenda 26" x 2.35" A/V |
| Front Hub | Steel 14Gx32H 3/8"x100x108 QR |
| Rear Hub | Steel 14Gx32H 3/8"x135x145 7-SP |
| Suspension Travel | 70mm |
| Warranty | Lifetime warranty on frame and fork |
Box Sizing Guide
| Frame Size Number | 17" | 19" |
| Wheel Size | 26" | 26" |
| Suggested Height | 150-180cm | 175-195cm |
| Minimum Suggested Inseam | 75cm | 78cm |
| A - Seat Tube | 43.2cm | 48.3cm |
| B - Seat Tube Angle | 71deg | 71deg |
| C - Head Tube Length | 11cm | 11cm |
| D - Effective Top Tube | 57cm | 58.5cm |
| E - Chainstay length | 47.5cm | 47.5cm |
| F - Wheelbase | 109cm | 109cm |
| G - Standover | 70cm | 73cm |
