Details

Easy to Read, Easy to Set

Name: Tekton TRQ62203 1/2 Inch Drive 72-Tooth Split Beam Torque Wrench (40-250 ft.-lb.)
SKU: 168136

Set – Quickly turn to the desired torque value with a smooth thumbscrew adjustment.

Lock – Teeth inside the cover lock the torque setting in place while you are using the wrench.

Leave – Since there’s no internal tension when the wrench is at rest, you don’t need to turn it to the lowest setting for storage.

Serialized Certificate of Calibration

Each wrench is calibrated according to the ASME B107.300-2010 standard. The detailed test results are recorded on the included certificate.

Initial accuracy

Expected future accuracy

All torque wrenches lose accuracy with repeated cycles. The information in this section helps you evaluate when recalibration may be necessary.

Serial number

Each wrench is engraved with a unique serial number that corresponds to a certificate of calibration.

Split Beam Design and Operation

See How it Works

0:34

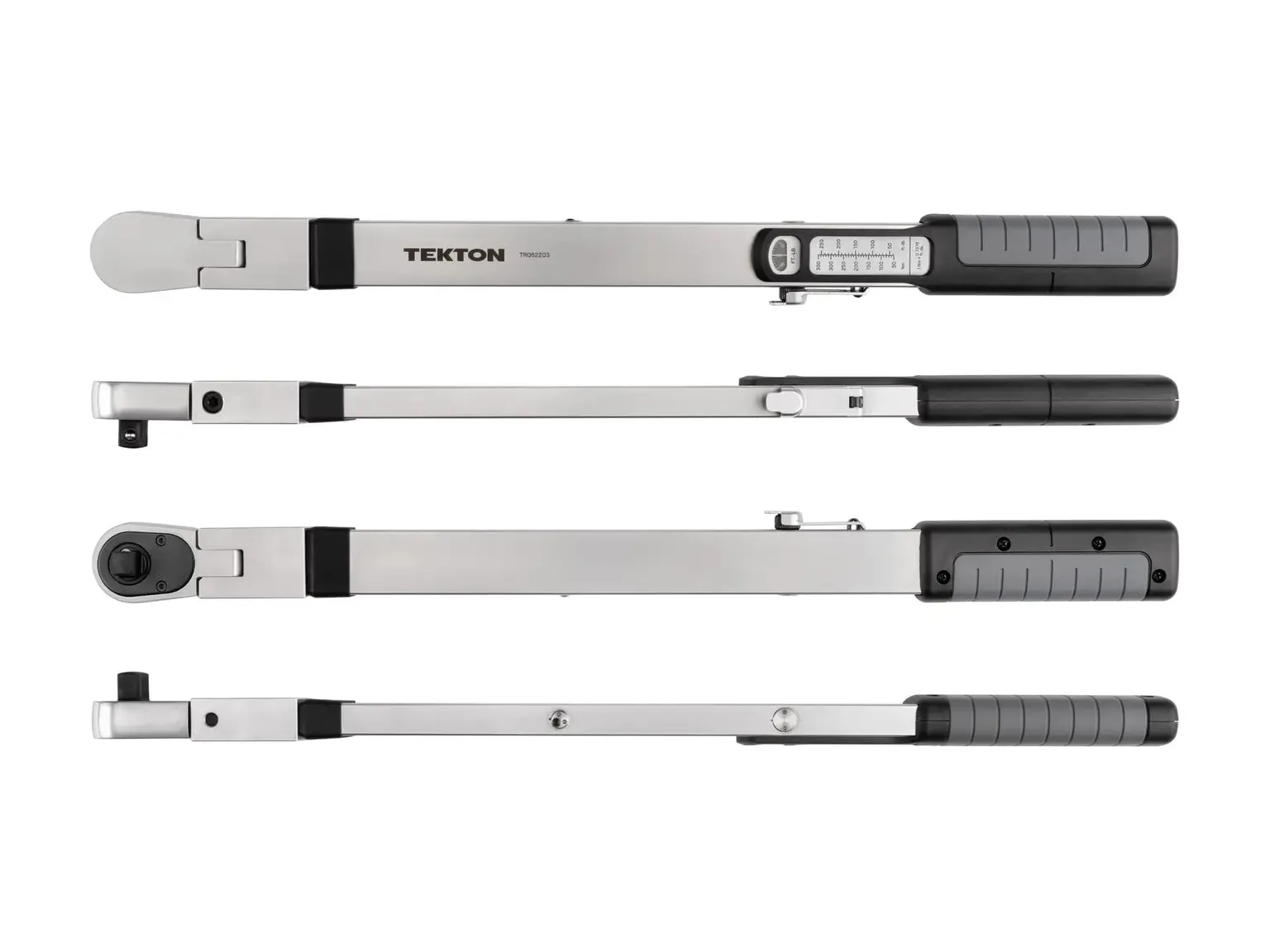

Flexible Head

The flexible head offers the clearance to work around nearby obstructions.

As with any flex-head torque wrench, some accuracy is lost when the handle is not in the straight position, so this feature should only be used when needed.

Specs

1/2 Inch Drive 72-Tooth Split Beam Torque Wrench (40-250 ft.-lb.)

Drive Size	1/2 inch
Torque Range	40 - 250 ft.-lb.
Dial Increment	5 ft.-lb.
Accuracy	Specified on each calibration certificate
Measuring Direction	Clockwise
Tooth Count	72
Country of Origin	Taiwan
Item Weight	3.7 lb.
