Steel TIG
Welded 17"
26"
MTB Tyres
Alloy Lever
& Clamp
Shimano 21-Speed
Drivetrain
Portability, convenience and performance, all in one.
Lightweight, high performance, easy to use and best of all, foldable for convenience.

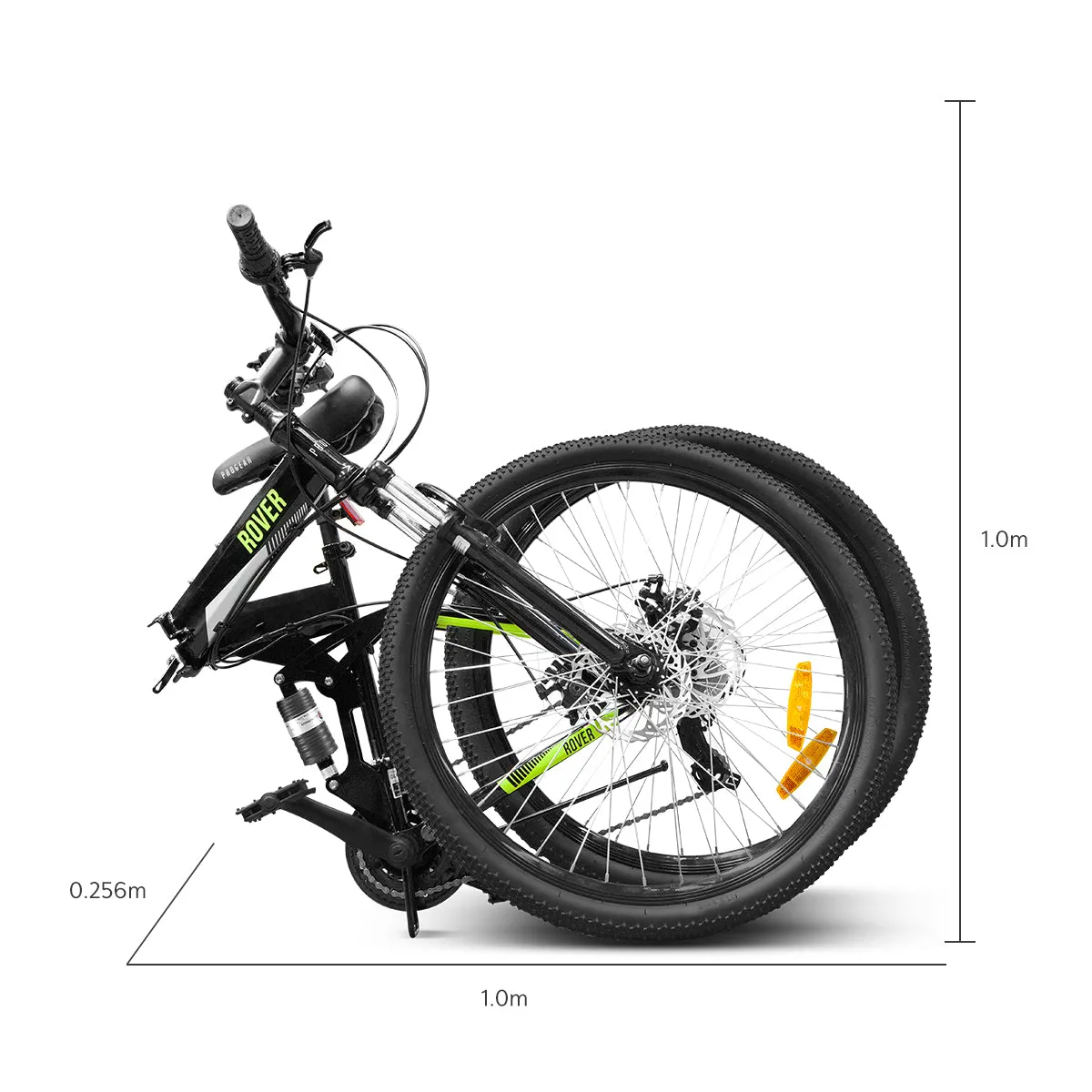

Folding Frame
Simply unfold your frame for storage and transportation with an easy to use center latch.
Dual Suspension
With front and back suspension, you'll be able to chew up bumpy and uneven terrain with ease.

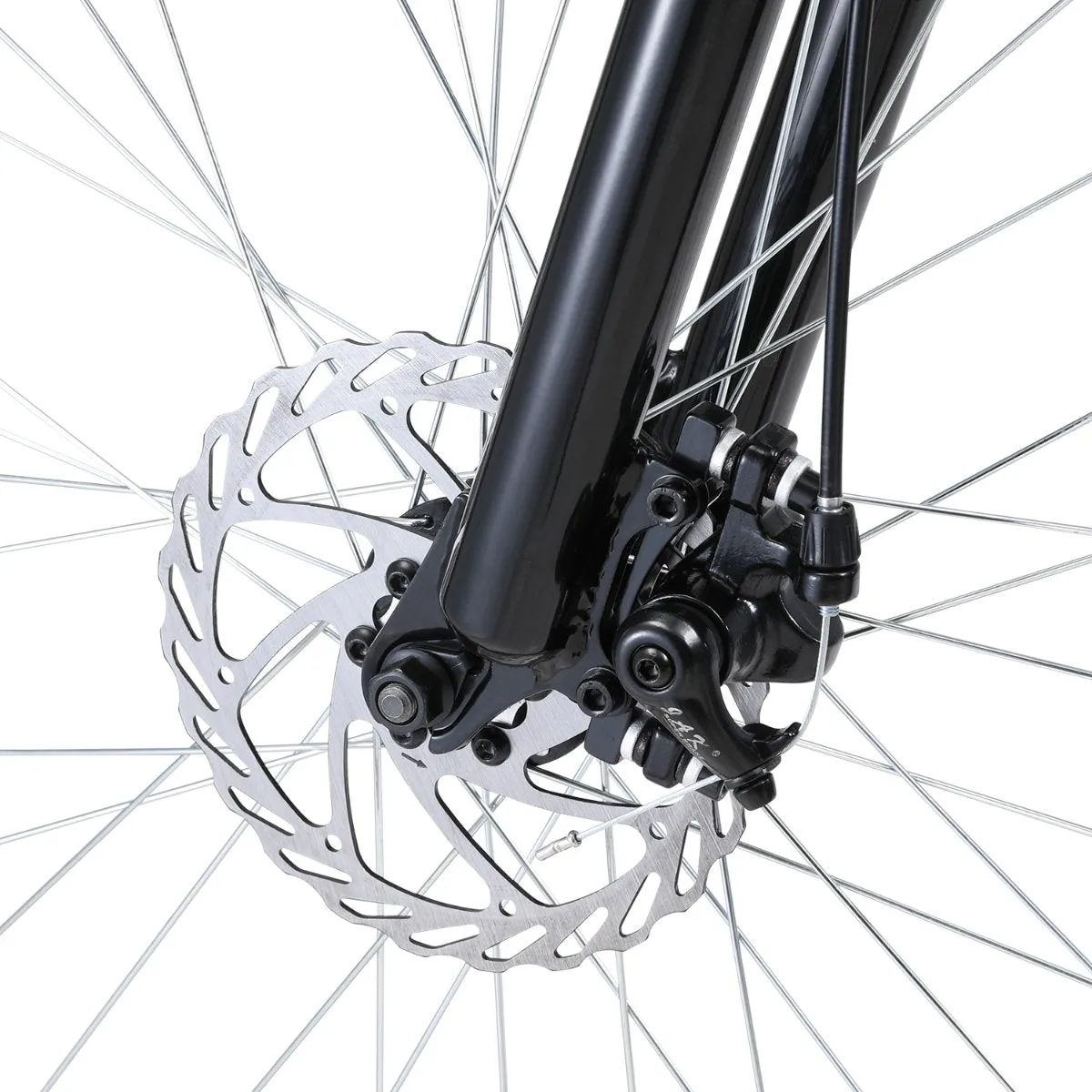

Stopping Power
Strong, reliable stopping power is paramount to any bike rider, especially if you're maneuvering through tough terrain. That's why our Rover comes with Disc brakes for consistent, high-powered braking performance.
- Premium quality disc brakes
- Longer lasting
- Stronger braking performance
- Less adjustment and maintenance required

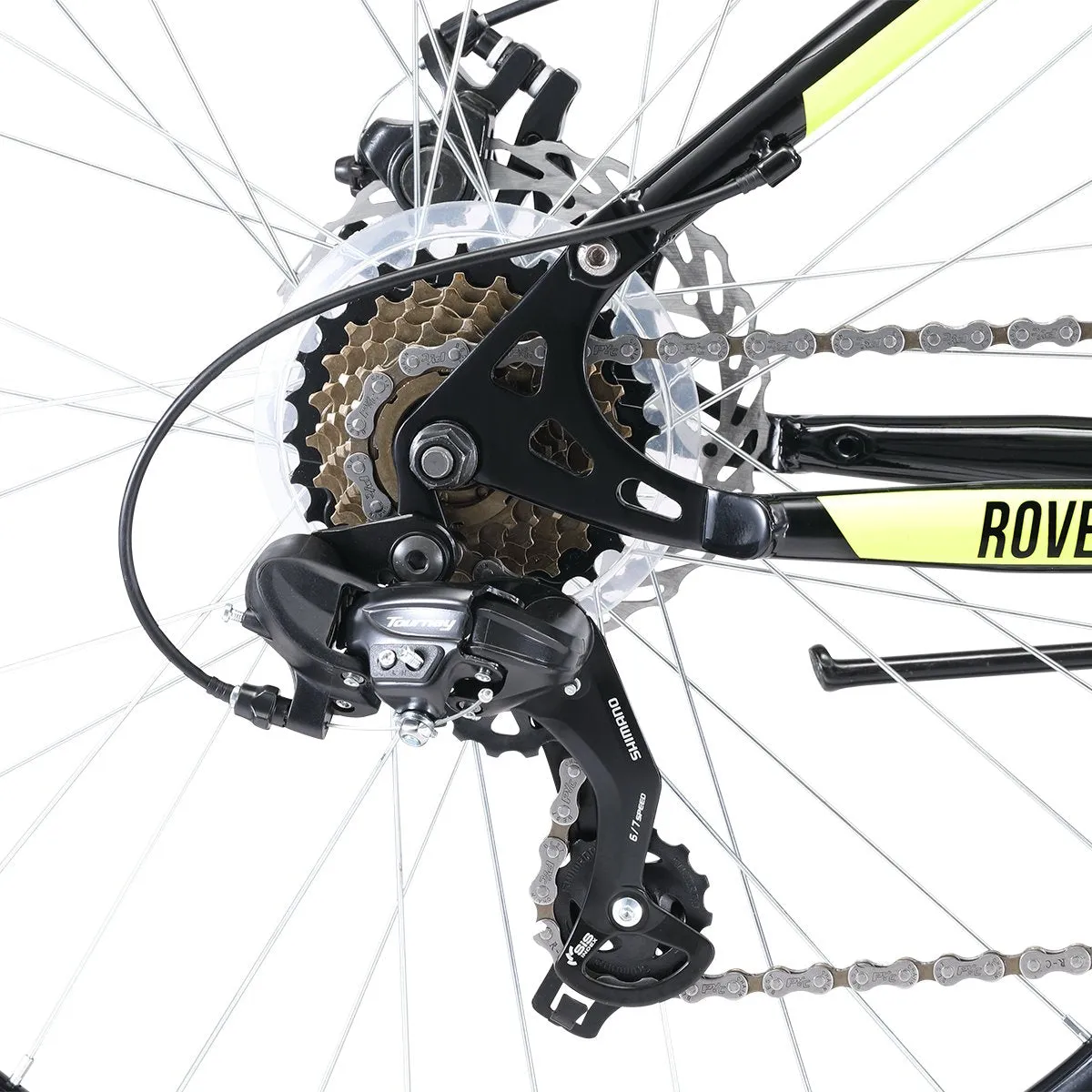

Shimano 21-Speed Drivetrain

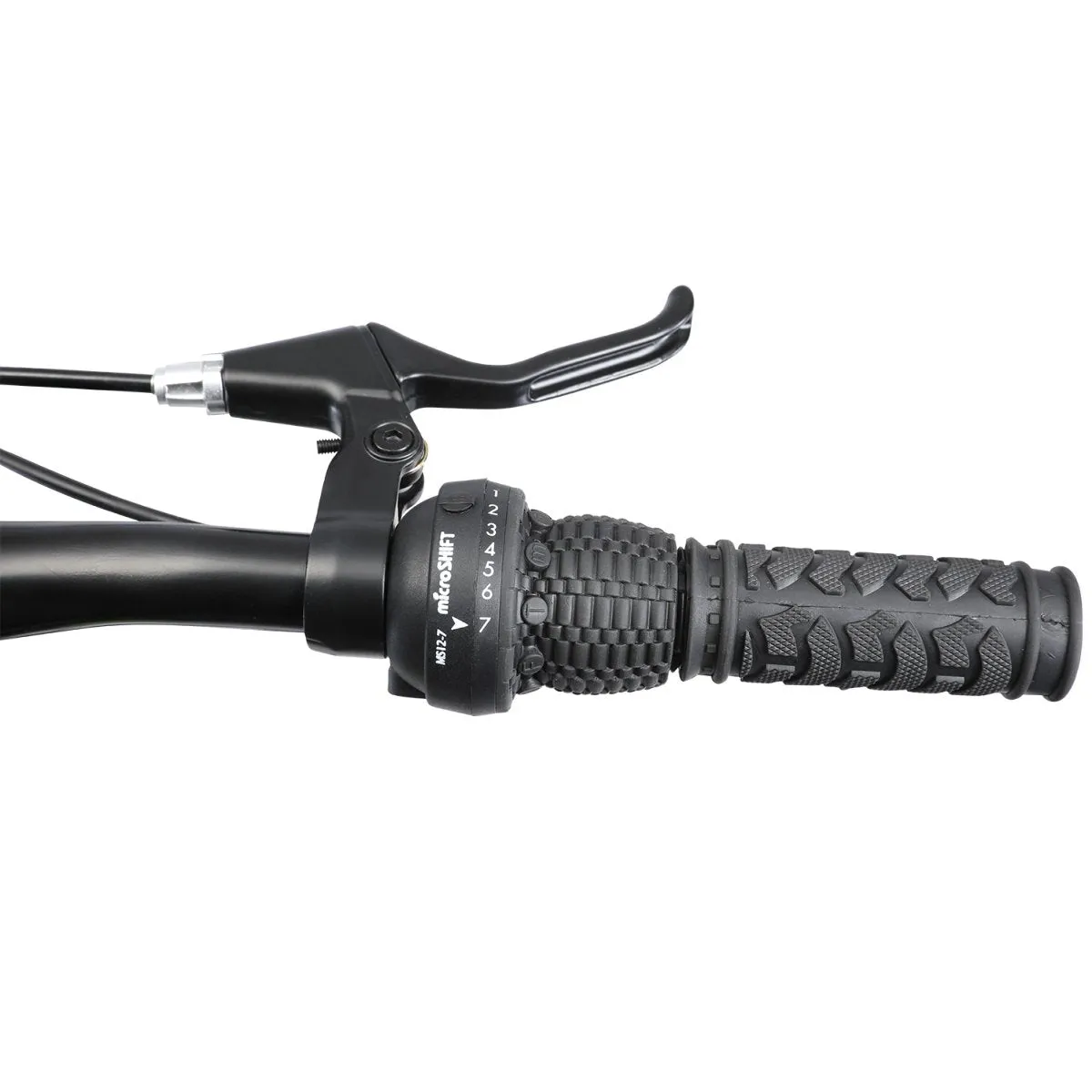

Grip shift microSHIFT makes it super easy for every-day commuting. Simply twist to gear up or gear down. We know these bikes can be folded up and tossed around, we've chosen less intrusive, integrated grip shifters. No protruding big thumb shifters that can be prone to impact/damage.
Our 21-speed reliable Shimano drivetrain comes with great gearing ratios to tackle any MTB environment.
Double Wall Rims
Double wall alloy rims to provide excellent strength and reliability, and tough rim walls help with the braking performance of the V-Brakes. Comfort tread tyres to provide a smooth riding experience, as well as less rolling resistance for greater efficiency.
Quick Adjustments
Making the right adjustments is easy - quick unlock and re-lock on the seat height using the alloy seat-post clamp.
The Blueprints
An awesome package with the following components:
- A. Adjustable Seat Height
- B. Double Wall Alloy Rims
- C. Rear Suspension
- D. Rear Disc Brakes
- E. Shimano 21-Speed Drivetrain
- F. microSHIFT Shifters
- G. Mid-Frame Folding Joint
- H. Front Suspension
- I. Front Disc Brakes
Where to ride?
Specification
Technical Specifications
| Frame | Steel TIG Welded 17" Dual Suspension Folding MTB |
|---|---|
| Fork | Steel Front Suspension |
| Handlebars | Steel MTB Style |
| Grips | Rubber 85mm |
| Seatpost | Steel 25.4 x 300mm |
| Seat Clamp | Alloy Quick Release |
| Saddle | Padded MTB Saddle |
| Pedals | MTB Platform 9/16" |
| Gear Shifters | Front: MicroSHIFT, 3-Speed / Rear: MicroSHIFT, 7-Speed |
| Front Derailleur | Shimano Tourney FDTY300 |
| Rear Derailleur | Shimano Tourney RD-TY300D |
| Brakes | Alloy Disc Brakes with 160mm Rotors |
| Brake Levers | Alloy Lever & Clamp |
| Freewheel | FW-7I 7SPD 14-24T 28T index |
|---|---|
| Chainwheel & Cranks | Steel 1/2"x3/32" 24Tx34Tx42T Chainwheel : 170mm Alloy ED Cranks |
| Chain | 110L |
| Bottom Bracket | XR-BB04 |
| Front Hub | Steel 14G x 36H x 100 x 140mm x (3/8") |
| Rear Hub | Steel 14G x 36H x 7SPD x 135 x1 75mm x (3/8") |
| Spokes | Steel 14g |
| Tyres | 26" x 1.95" Multigrip |
| Rims | Alloy Double Wall 26" x 1.75 x 36H x 14G, A/V |
| Bell | Alloy/Plastic |
| Seat Height (Seat to Ground) (Min/Max) | 83cm/98cm |
| Kickstand | Steel 285MM |
| Box Dimension | 141x19x71 (LxWxH, cm) |
