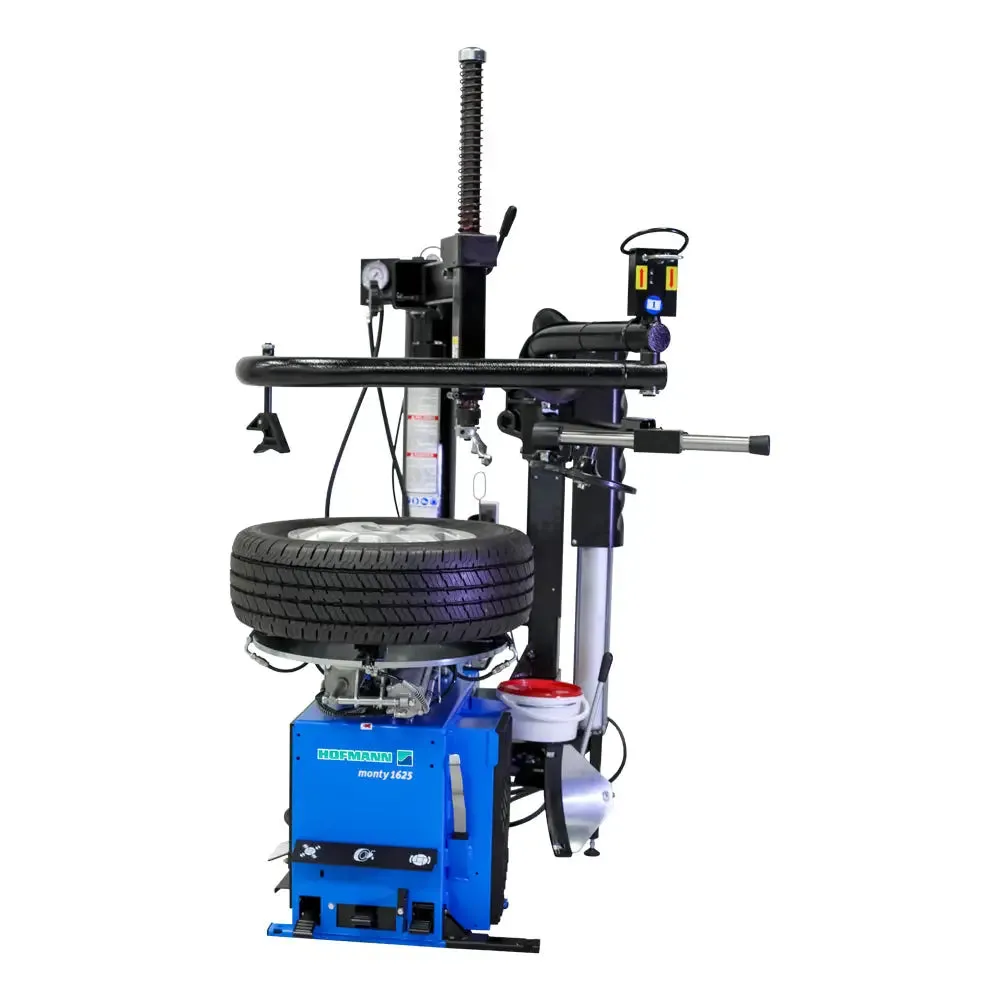

Hofmann Monty 1625 Swing-Arm Tire Changer
Hofmann Monty 1625 Swing-Arm Tire Changer
Title:
  • DefaultTitle

$ 54.15

$ 41.65

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Introducing the Hofmann Monty 1625 Series Tire Changers, designed for high-volume tire shops, multi-bay repair shops, and car dealerships. With patented EasyMont Pro Bead Assist and dual pneumatic clamping cylinders, these high-performance tire changers make one-operator tire changes possible on low-profile, high-performance, and run-flat tires. Accommodating large wheel and tire assemblies up to 50" diameter and 24" outer-wheel diameter, the Monty 1625 Series also features a self-centering four-jaw clamping chuck, multi-position bead breaker, and powerful tire inflation system for efficient and precise operation. Built to last with heavy, solid steel construction and rust-proof components, the Monty 1625 Series is the ultimate tire changer for your business.

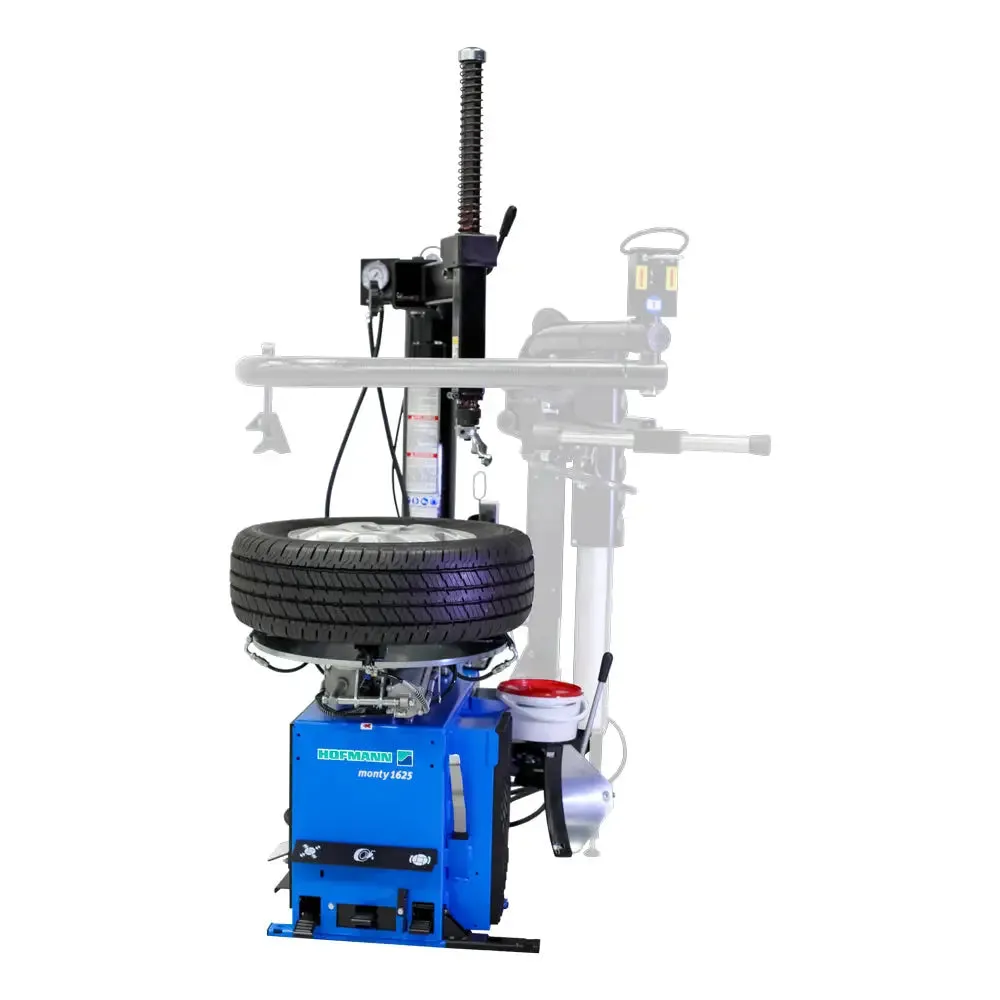

Note: Shown with optional bead assist (EAA0329G36B)


Features:

  • Fit up to 50" wheels with ease - accommodates 24" outer-wheel diameter too!
  • Dual pneumatic clamping cylinders eliminate damage from slippage
  • Self-centering four-jaw clamping chuck fits 26" inner or 24" outer diameter wheels
  • Multi-position bead breaker with 6,000 lbs of power and up to 18" wide range
  • Powerful tire inflation system with precise positioning and foot pedal operation
  • Get durability with solid steel, rust-proof parts, and an onboard lubricator/regulator.
  • Two-speed capability for faster throughput and increased efficiency

Specs:

Outer-Clamping Diameter: 10in-24in (250 - 609.6 mm)
Inner-Clamping Diameter: 12in-24in (304.8 - 609.6 mm)
Maximum Wheel Width: 15in (380 mm)
Maximum Tire Diameter: 53in (1,346 mm)
Compressed Air Supply: 110-170 PSI (7.6-11.7 BAR)
Adjustable Four Claw Clamp: Included
Integrated Bead-Seating Jets: Included
Pressure Timer: Included
Twin Cylinder Turntable Clamping: Included
Rotation Speed: 6.5 RPM
Bead Breaker Power: 2,700 lbs (12 kN)
Bead Breaker Range: 1.7in - 16.3in (43-414 mm)
Recommended Floor Space (W x D x H): 53.3in x 46.1in x 80.75in (1.4 x 1.2 x 2m)
Shipping Weight: 750 lbs (340 Kg)
Power Requirements: 115V 1Ph 50/60Hz 12A

Application:

Tire shops
Multi-bay repair shops
Car dealerships
Shop Type
High-volume

Includes:

Adjustable Four Claw Clamp
Integrated Bead-Seating Jets
Pressure Timer
Twin Cylinder Turntable Clamping
