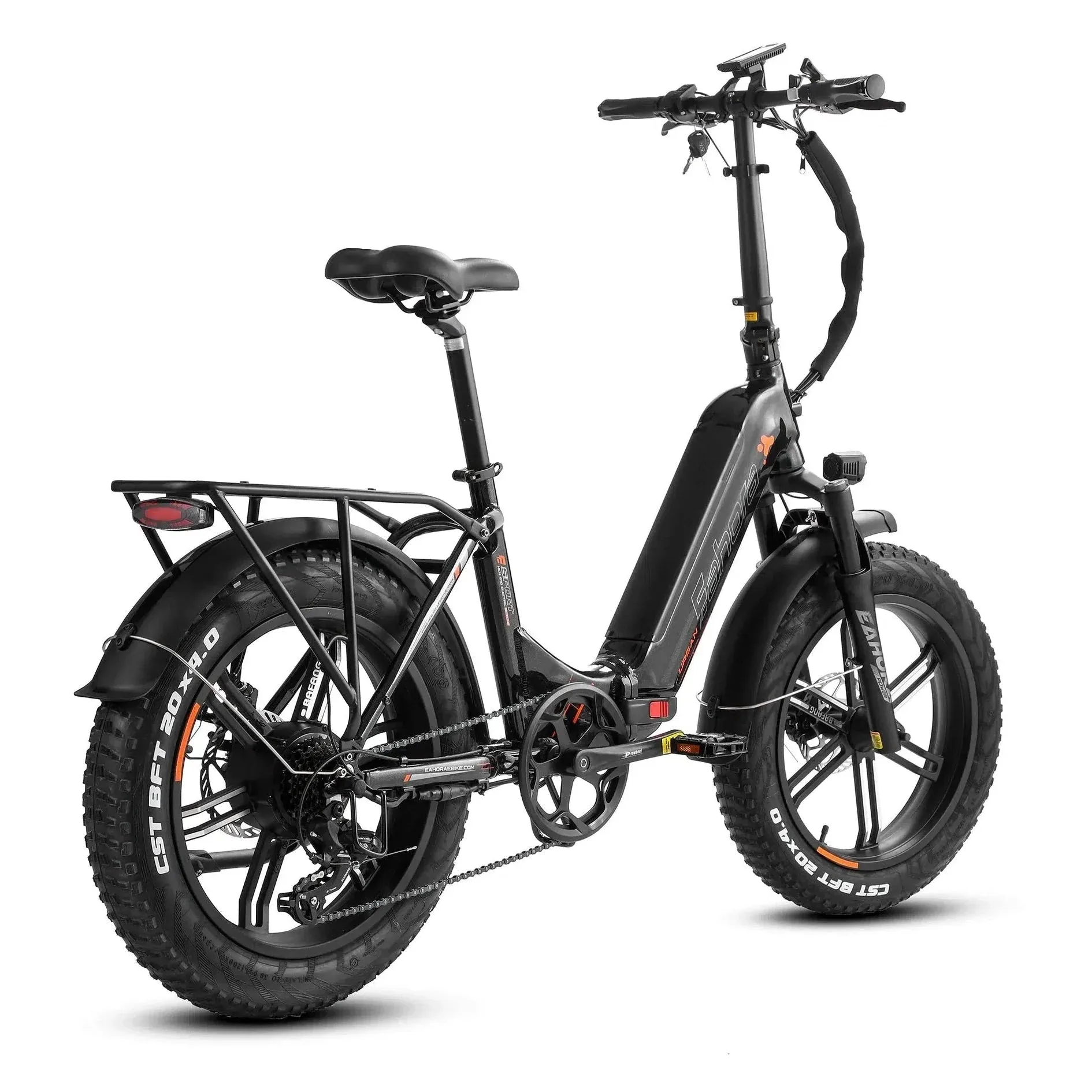

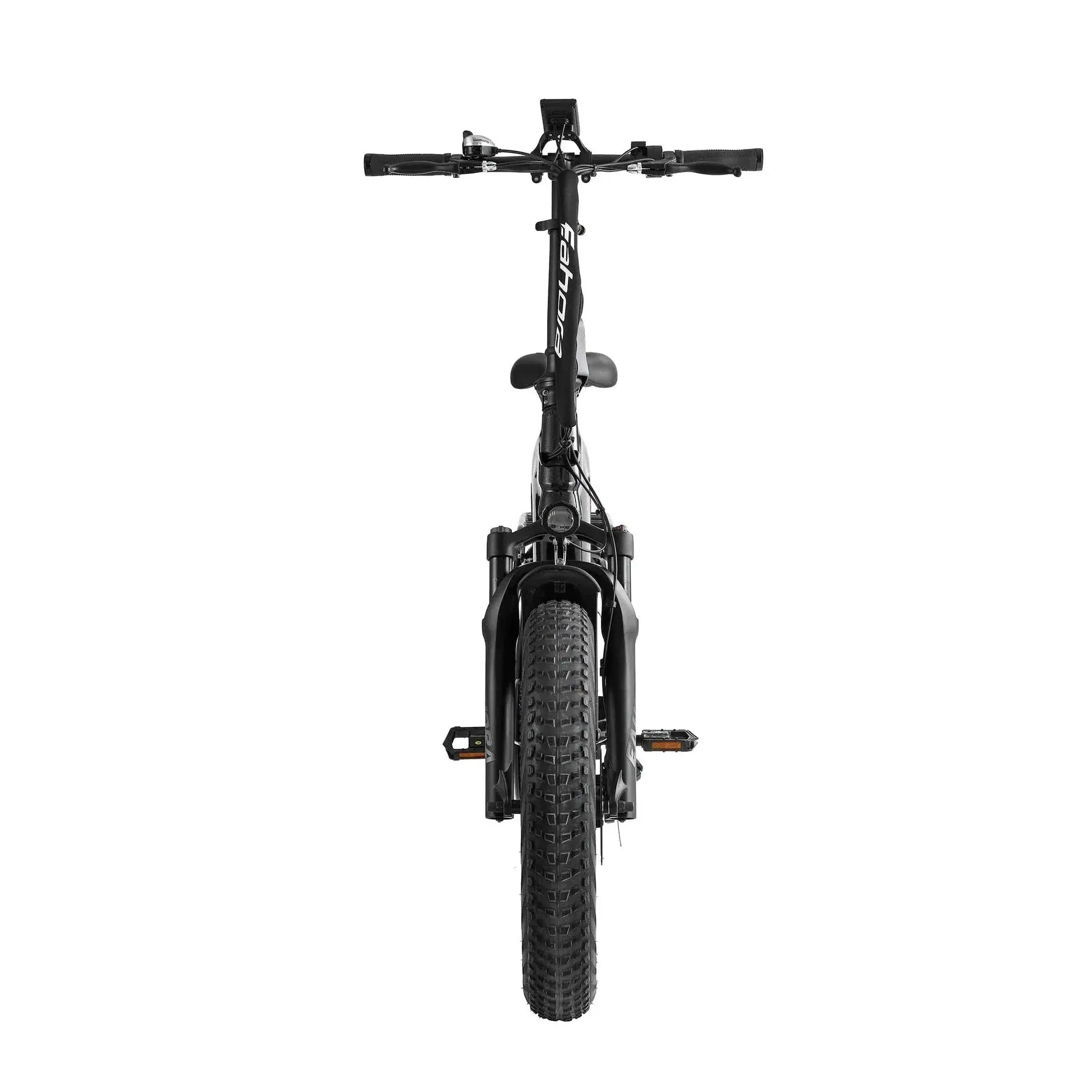

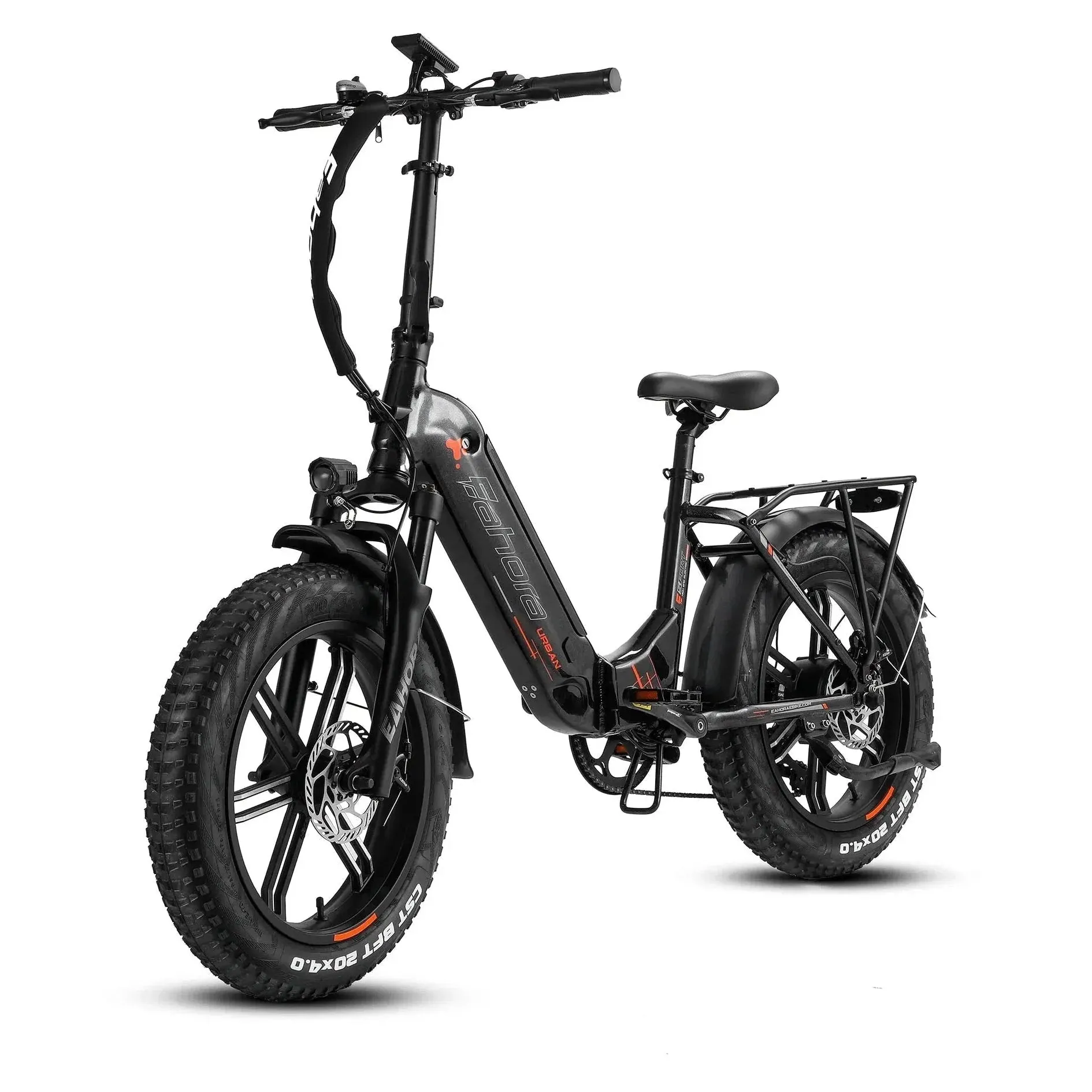

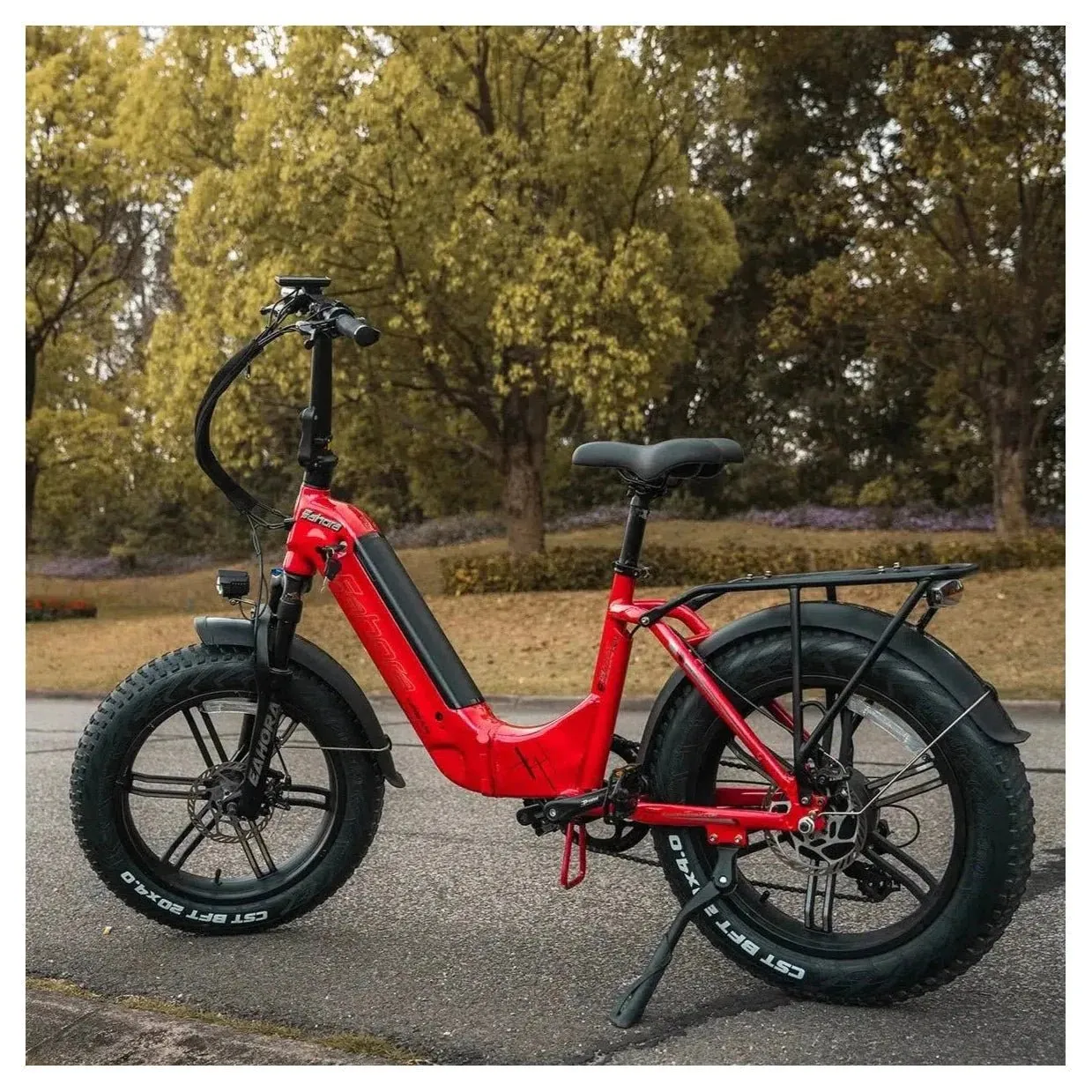

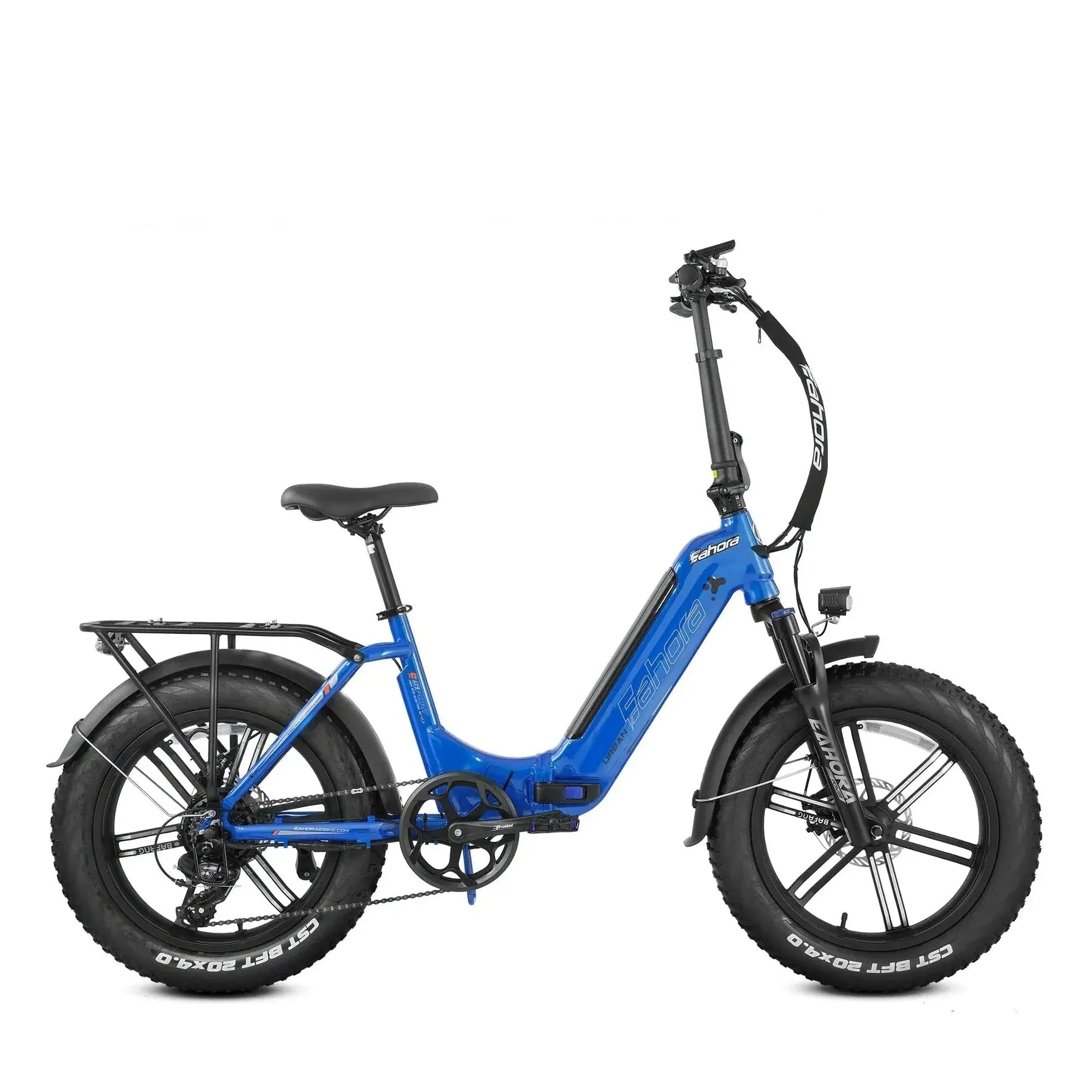

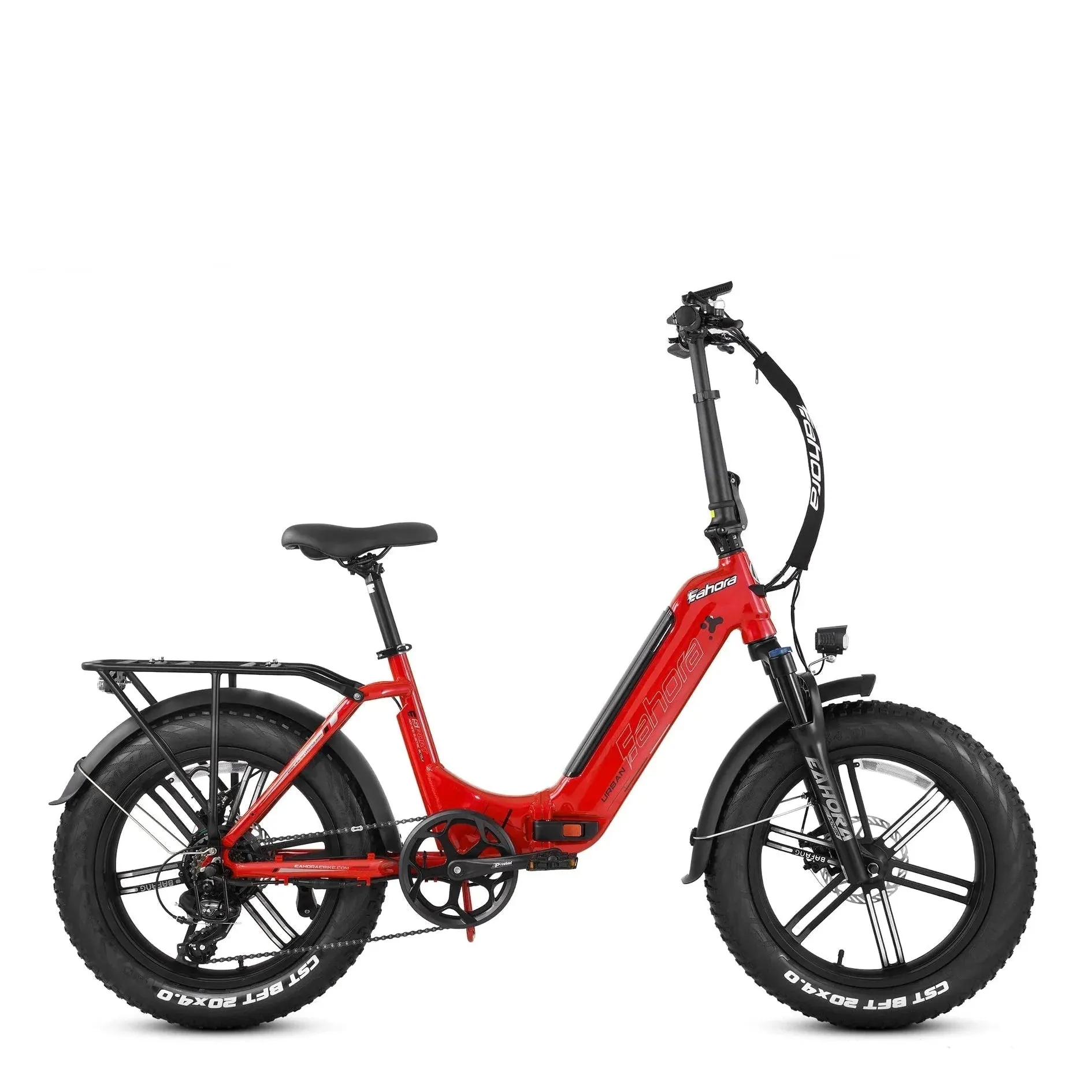

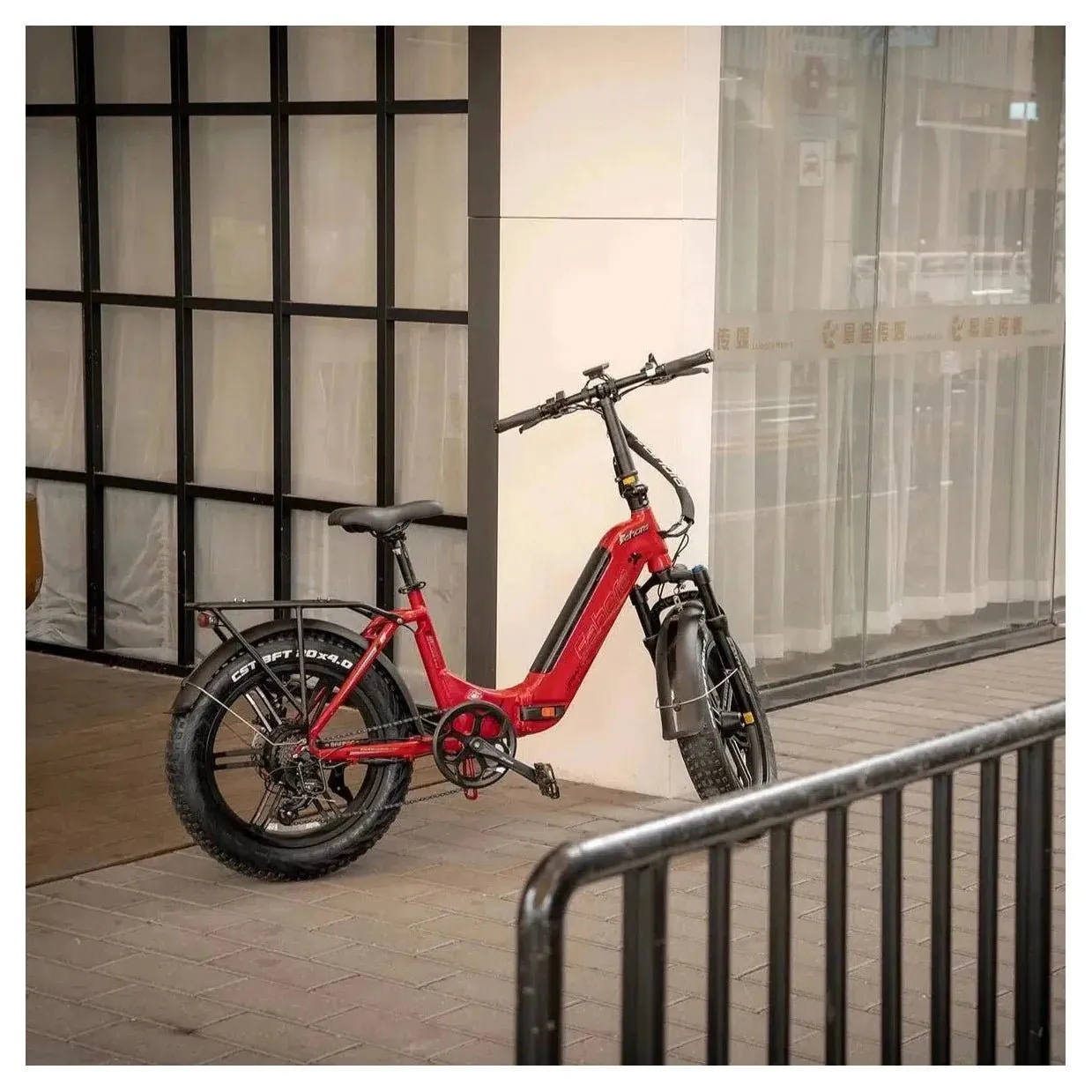

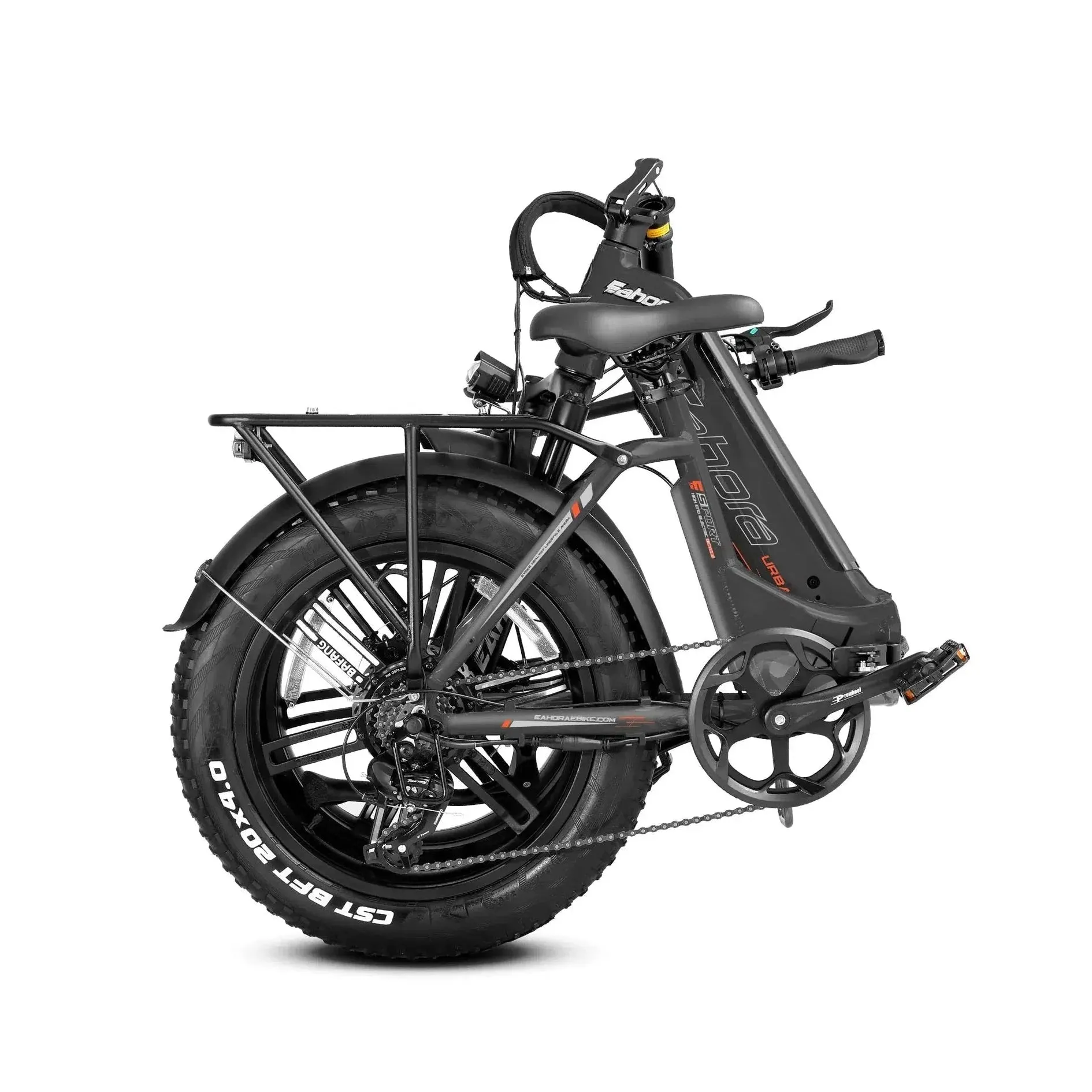

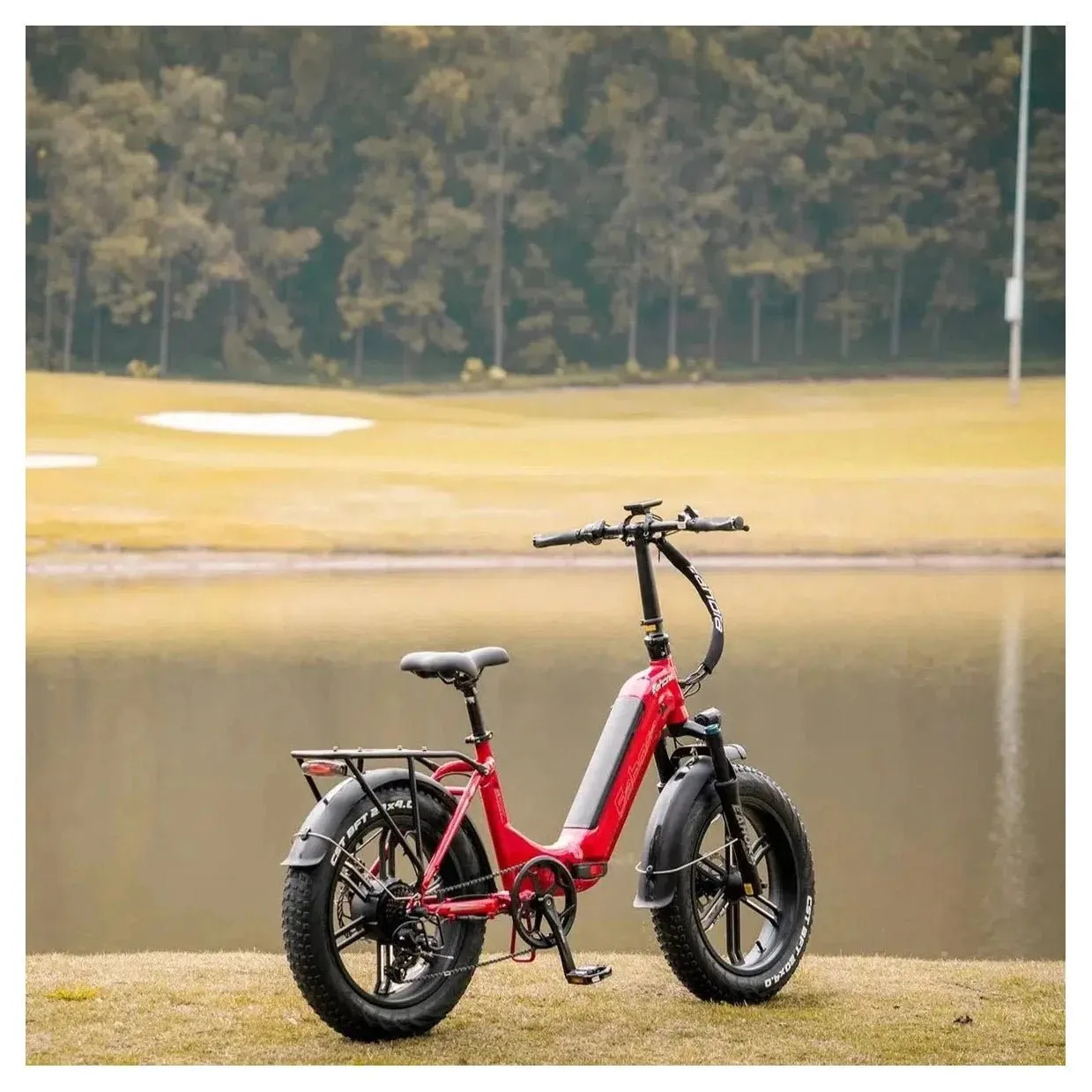

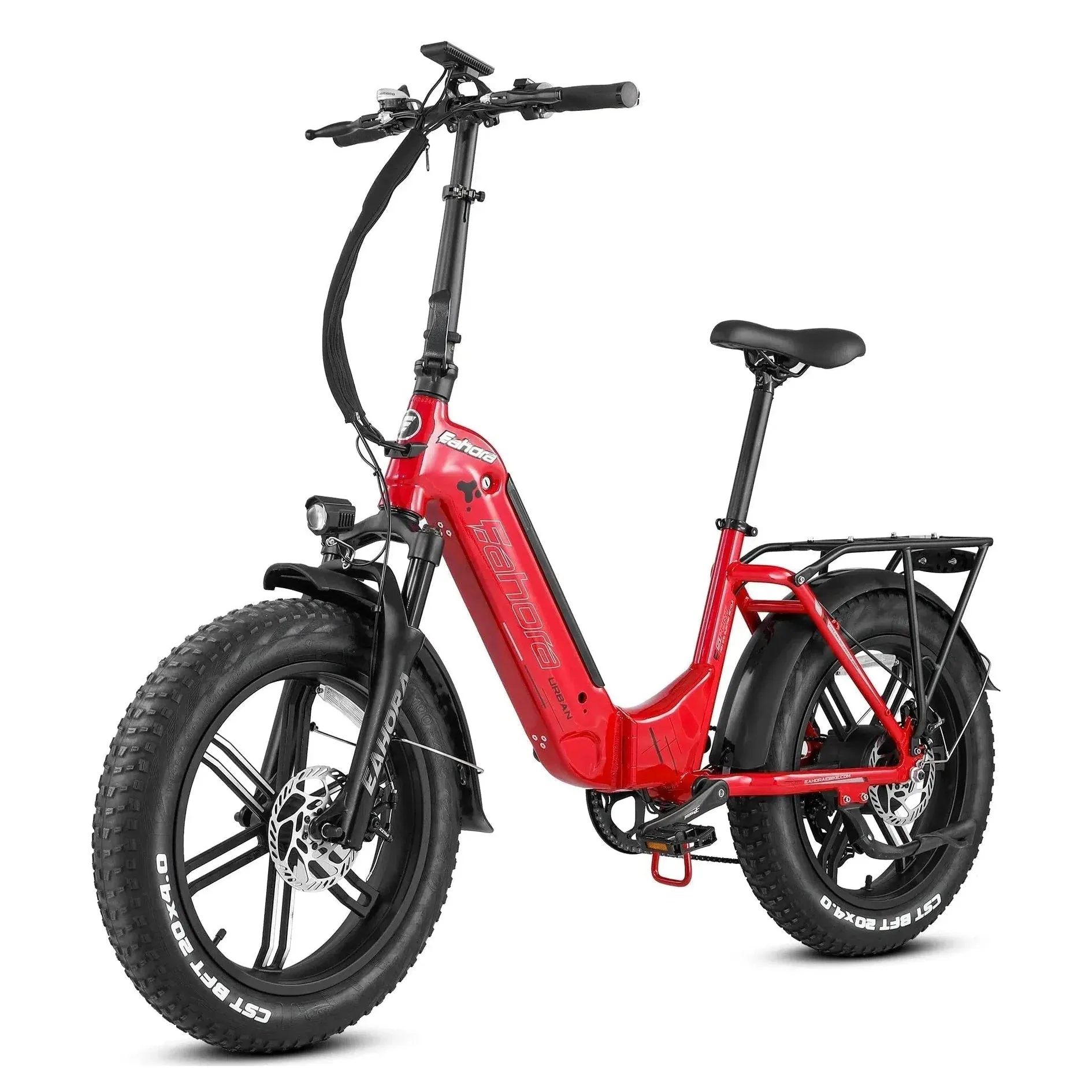

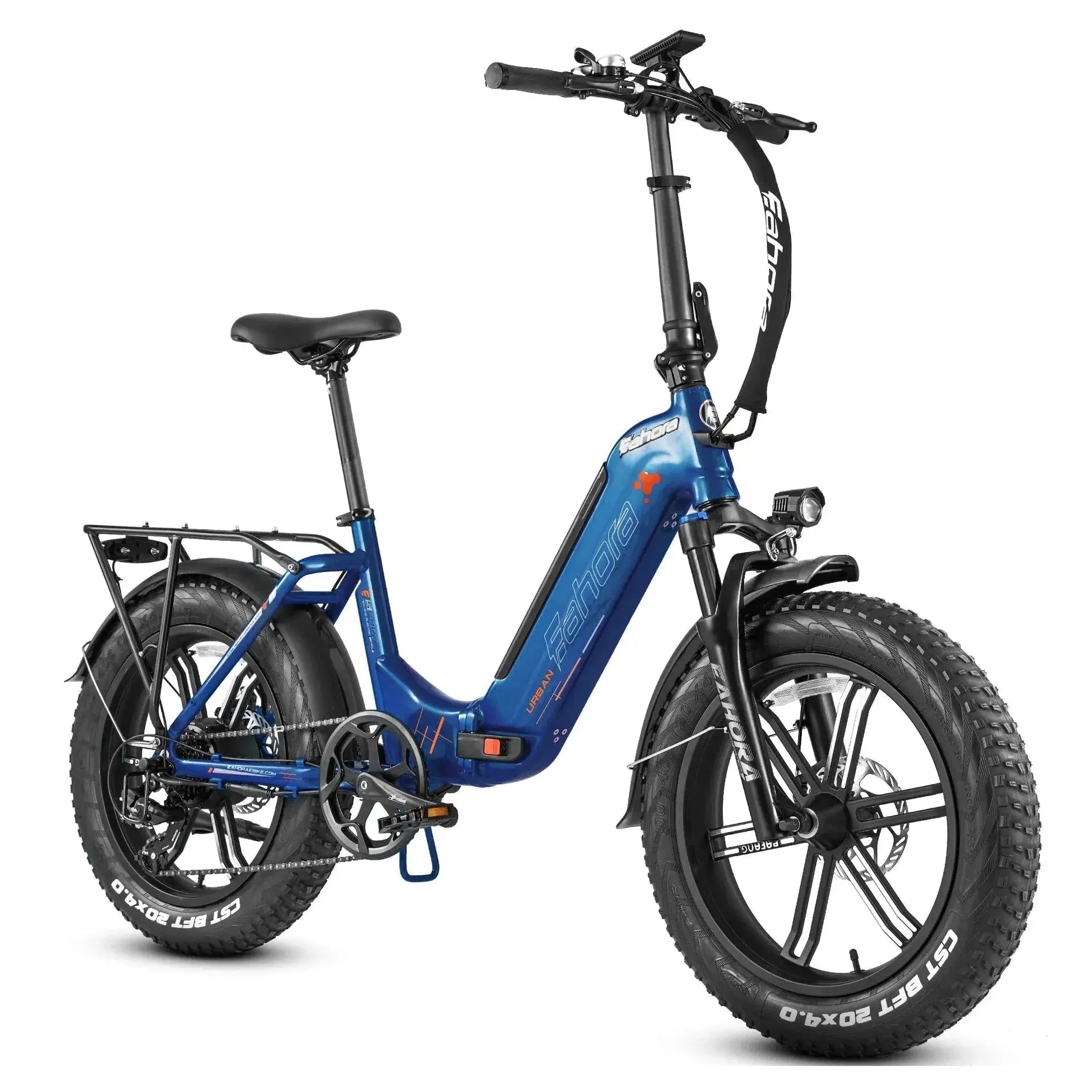

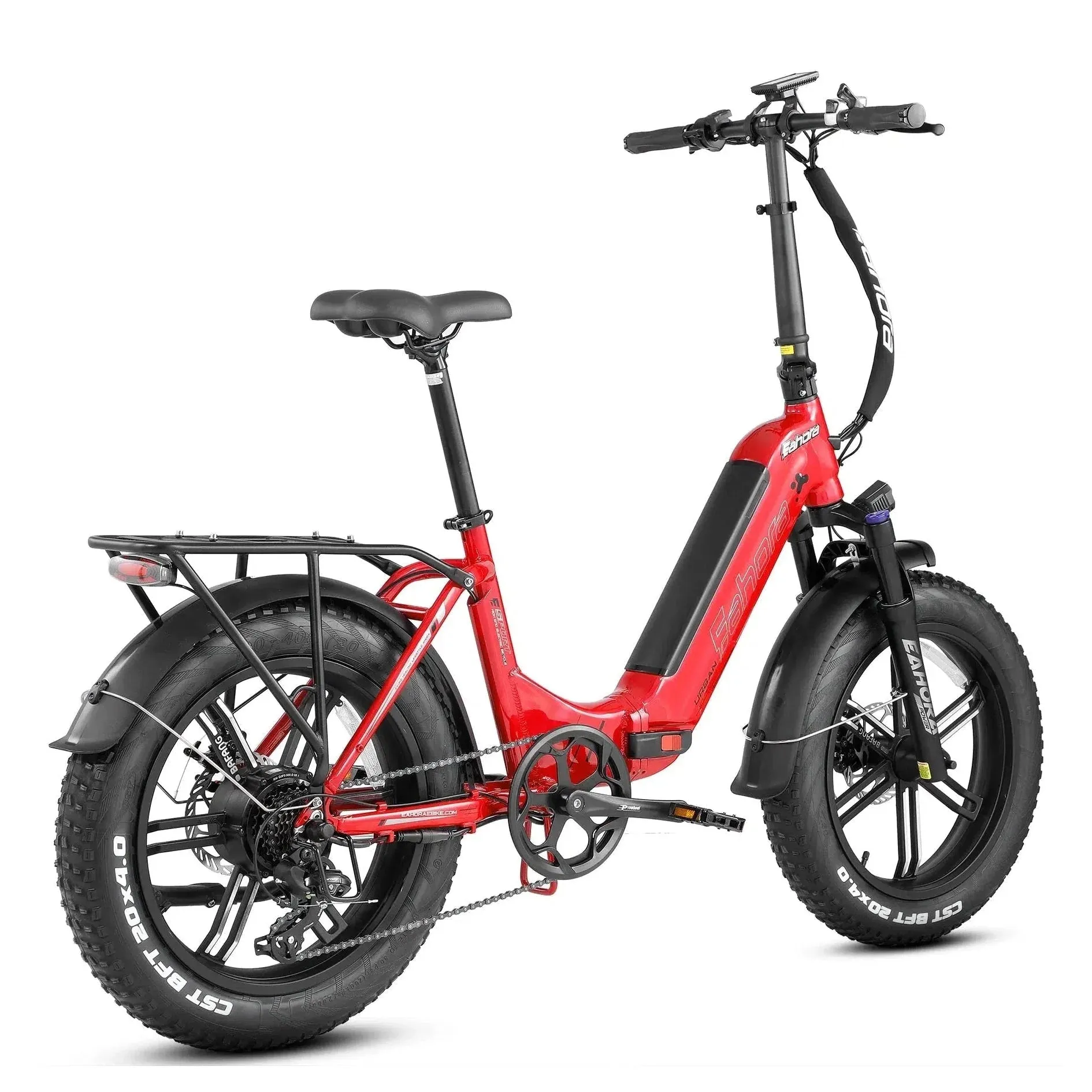

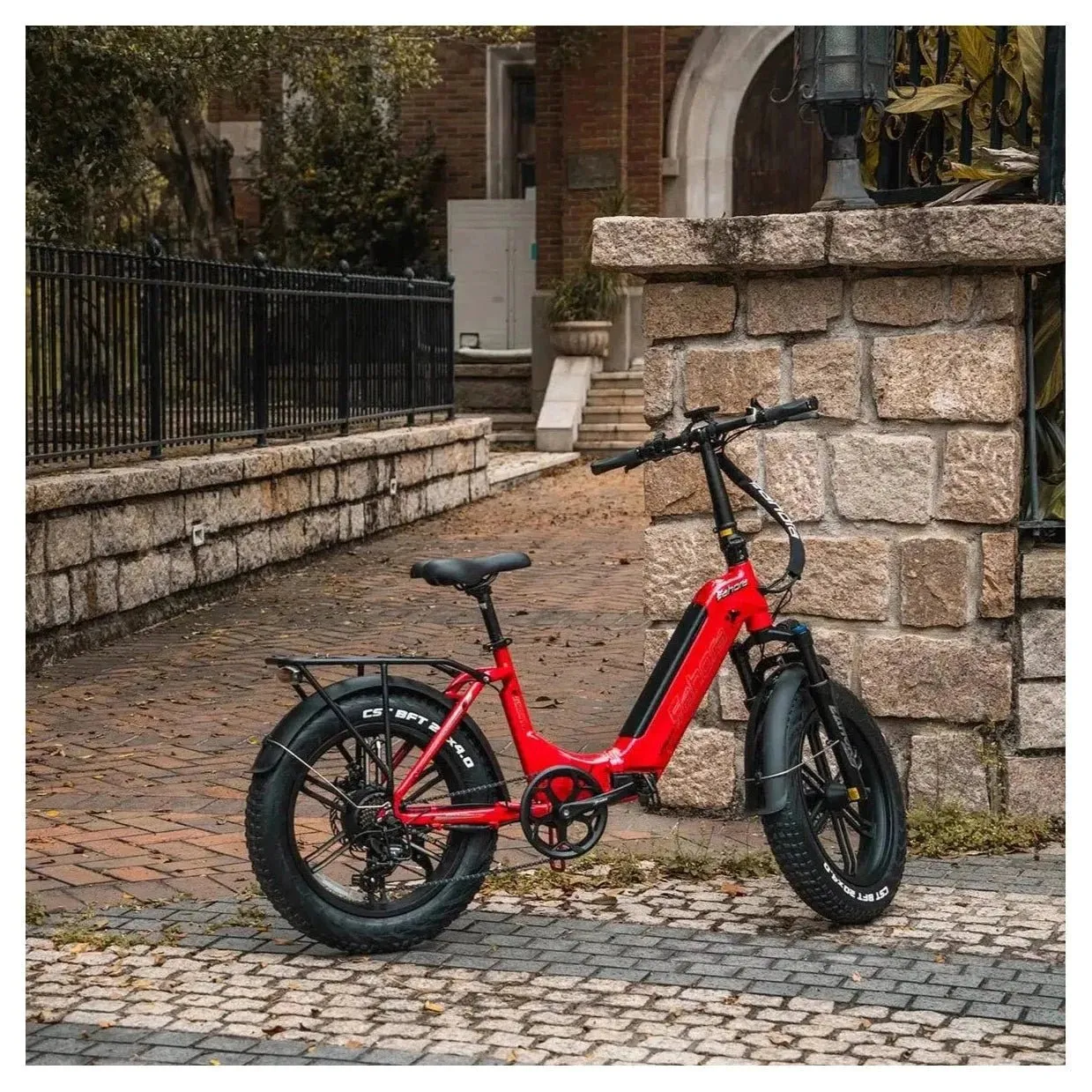

Eahora Urban 750W Folding Fat Tire Electric Bike
Eahora Urban has upgraded to Special edition with 750W motor & 48V 13Ah(624Wh) battery, which possesses an impressive max range of 34 miles. Its outlook not only looks classic among all folding e-bikes, but it also makes for a great all-terrain conqueror by virtue of practical 160mm mechanical brakes and full suspension.
750W Hub Motor (BAFANG)
Bafang powerful and efficient H500 integrated Rear Drive Hub Motor, With 750W dependable power offers strong support where needed. The on-piece design of the wheel, rim, and body makes the Urban ride more stable, and rough road conditions or hard riding will not deform the wheels at all.
Torque: 70N.m
Gradeability: 30˚
48V 13Ah Battery
Urban has an embedded removable battery. The built-in 13Ah battery efficiently improves the range, stability and safety, which can last up to 25 miles with PAS mode on a single charge.
Throttle Mode Range: 24 - 26 Miles
PAS Mode Range: 49 - 52 Miles
Electronics
Motor
750W DC hub motor, cassette. Max torque: 70N.M.
Battery
48V 13AH (624WH) lithium battery; anti-fall battery dual locks.
Controller
48V, 18 ± 1A; 9MOS.
Charger
54.6V ~ 2A smart charger; input 100-240V 50/60HZ.
Display
2.4" portrait display(S830), IP65 waterproof.
Lights
Front light 48V LED light; rear intergrated brake lights.
Wiring
Water resistant connectors and wiring harness.
Components
Frame
6061 aluminum; frame size: 20" * 15".
Brakes
160mm front and rear mechanical disc brakes.
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch.
Tires
20" * 4" CST tires; tire pressure marked on sidewall.
Fork
Mechanical suspension alloy fork, adjustable.
Rear Suspension
None.
Chain
KMC Chain.
Crank Set
48T * 170MM; single-sided chainring guard.
Shifters
Shimano(SL-TX50-7R) 7-speed.
Derailleur
Shimano(RD-TY300) 7-speed.
Freewheel
7-speed, 14-28T.
Grip
Comfort rubber ergo grips.
Handlebar
Rise handlebar.
Pedals
Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.
Headset
Intergrated threadless headset.
Rack
Intergrated rear rack.
Kickstand
Aluminum leg with durable plastic cover, adjustable.
Fenders
Snow tire fenders.
Saddle
Comfort leather saddle.
Rims
Aluminum 36H spoke wheel.
Seatpost
Aluminum seapost with clamp.
Bell
Integrated electric horn.
Assembly Video
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Geometry
Recommended Rider Height: 5'1" - 6'2" or 155CM - 190CM
Ⓐ - Total Length: 66.9" or 170CM
Ⓑ - Wheel Base: 44.5" or 113CM
Ⓒ - Seat Height: 30.3" - 39.0" or 77CM - 99CM
Ⓓ - Handlebar Height: 44.9" - 50.8" or 114CM - 129CM
Ⓔ - Rim Diameter: 16.5" or 42CM
Ⓕ - Standover: 16.1" or 41CM
Ⓖ - Reach Distance: 15.4" or 39CM
Ⓗ - Chain Stay Length: 16.5" or 42CM
Ⓘ - Seat Angle: 72.8°
Ⓙ - Seat Tube Length: 14.6" or 37CM
Ⓚ - Bike Width: 23.2" or 59CM
Ⓛ - Top Tube Length: 24.4" or 62CM
