Small. Light. Electric.

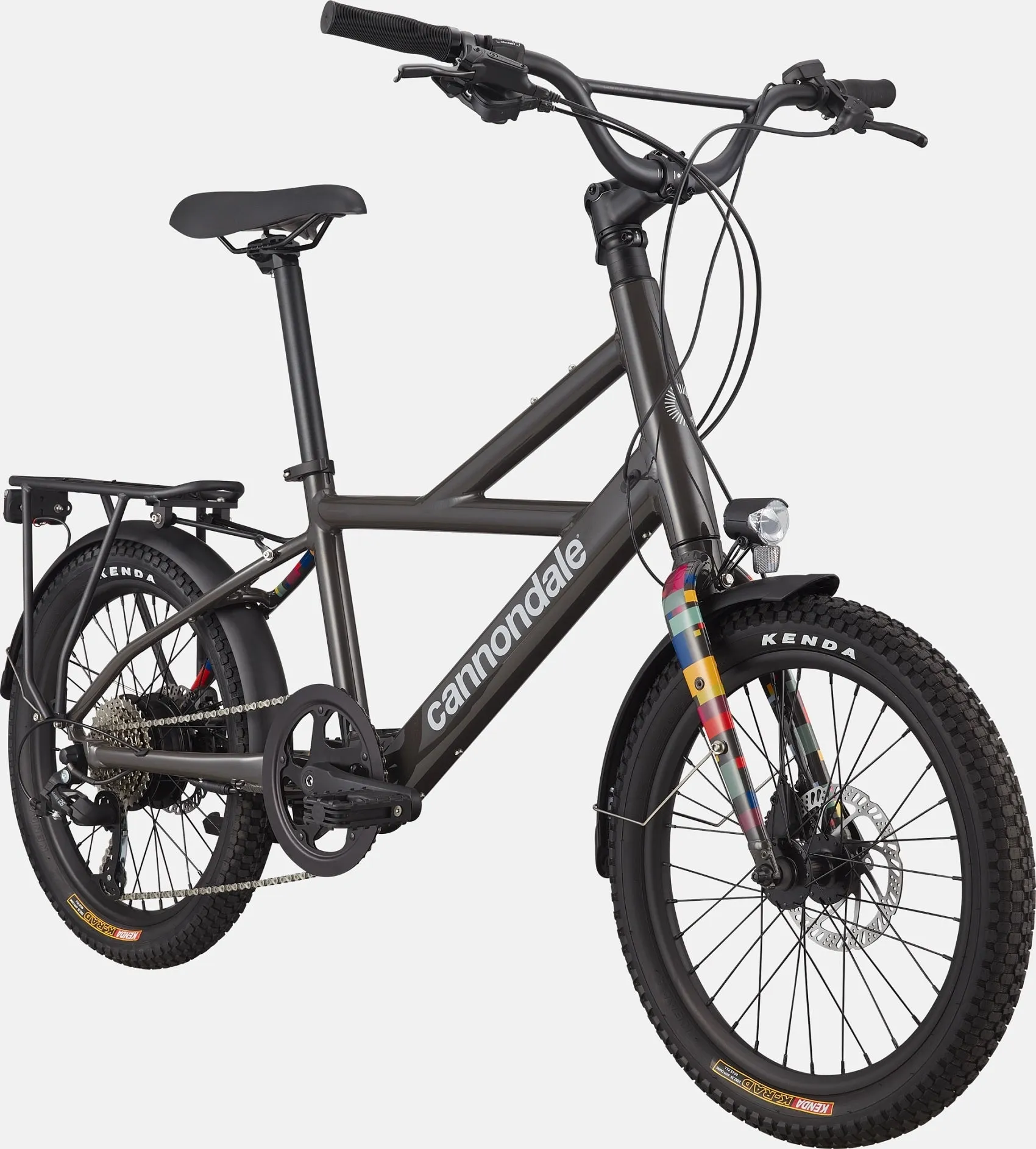

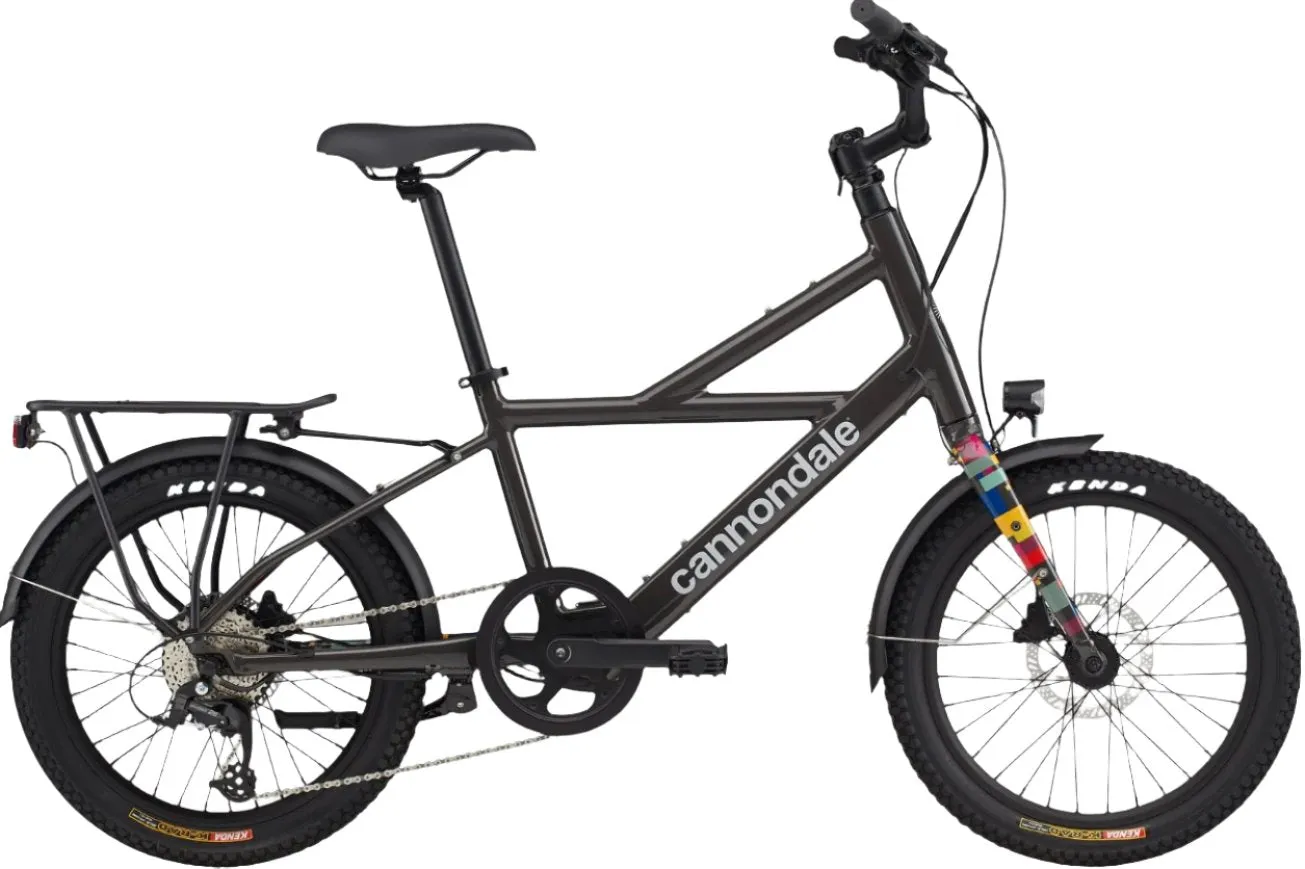

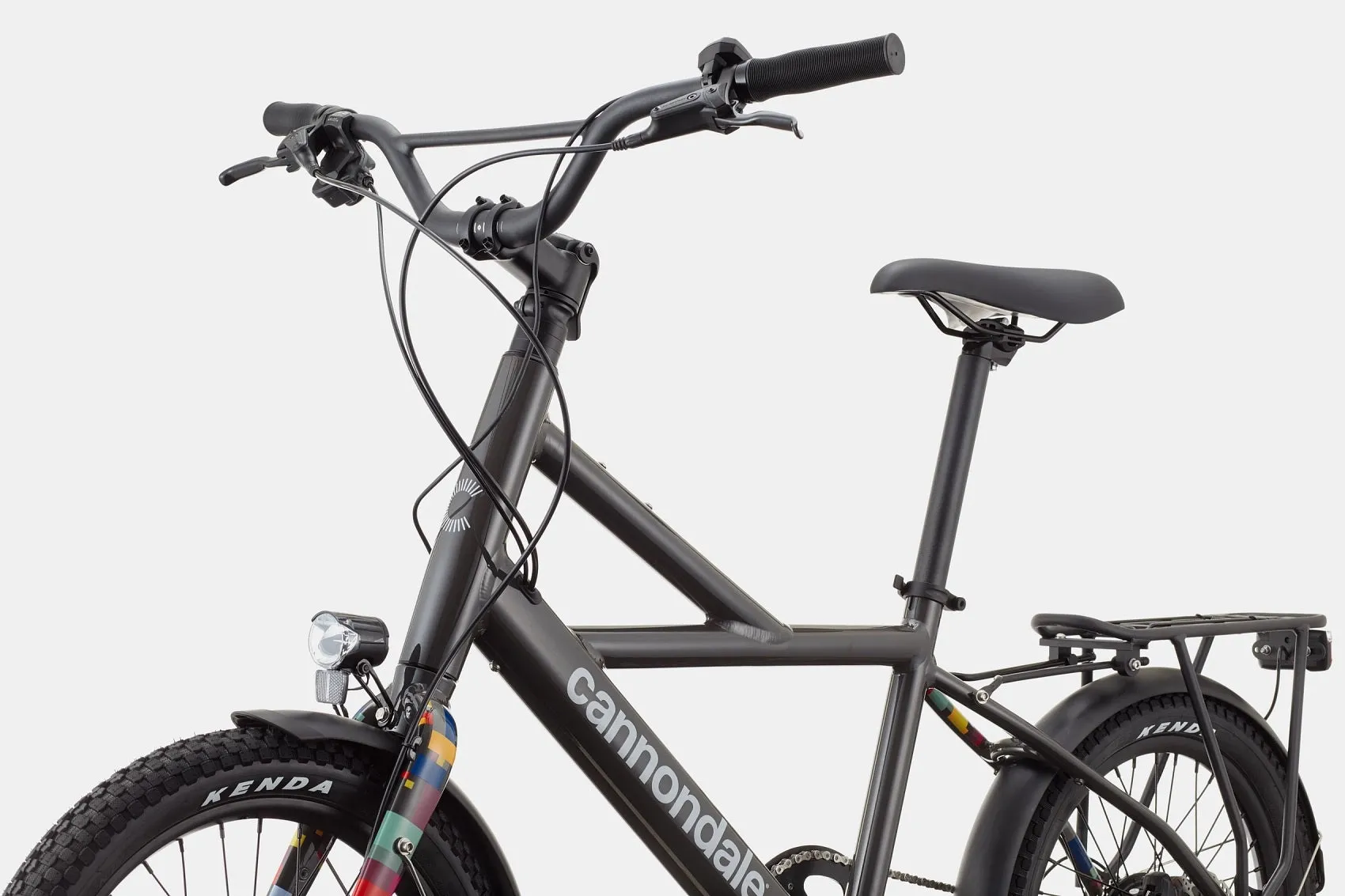

The Cannondale Compact Neo Urban E-Bike is a fun, compact and lightweight electric bike with smart features that make it easy to go by bike. Suddenly everything is within your reach when riding the Cannondale Compact Neo Urban E-Bike. The Cannondale Compact Neo Urban E-Bike thrives in town and is built for agility, comfort, and a ride that can be classified as pure joy!
Highlights
- Light, powerful rear-hub drive system / 250Wh Battery

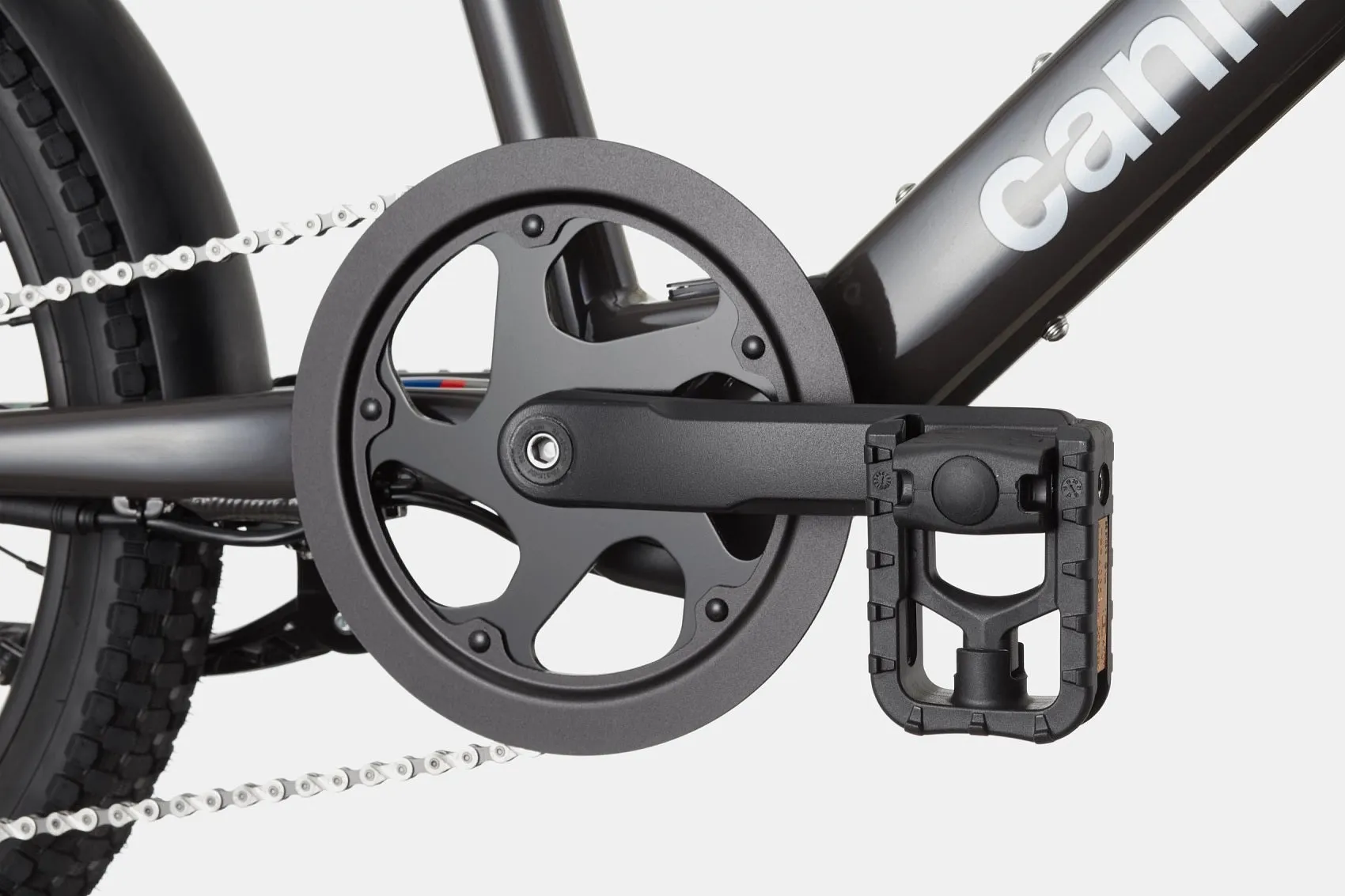

- Folding stem and pedals for easy parking
- 20” wheels, 8-speed shifting, rack, lights, fenders
Small is Smart
When combined with smart features like a folding stem and pedals, Compact Neo’s tidy footprint makes it as easy to park around town as it is to store. The smart design quickly adapts to accommodate different rider sizes, making it an ideal electric bike for busy families or shared use.
Small is Fun

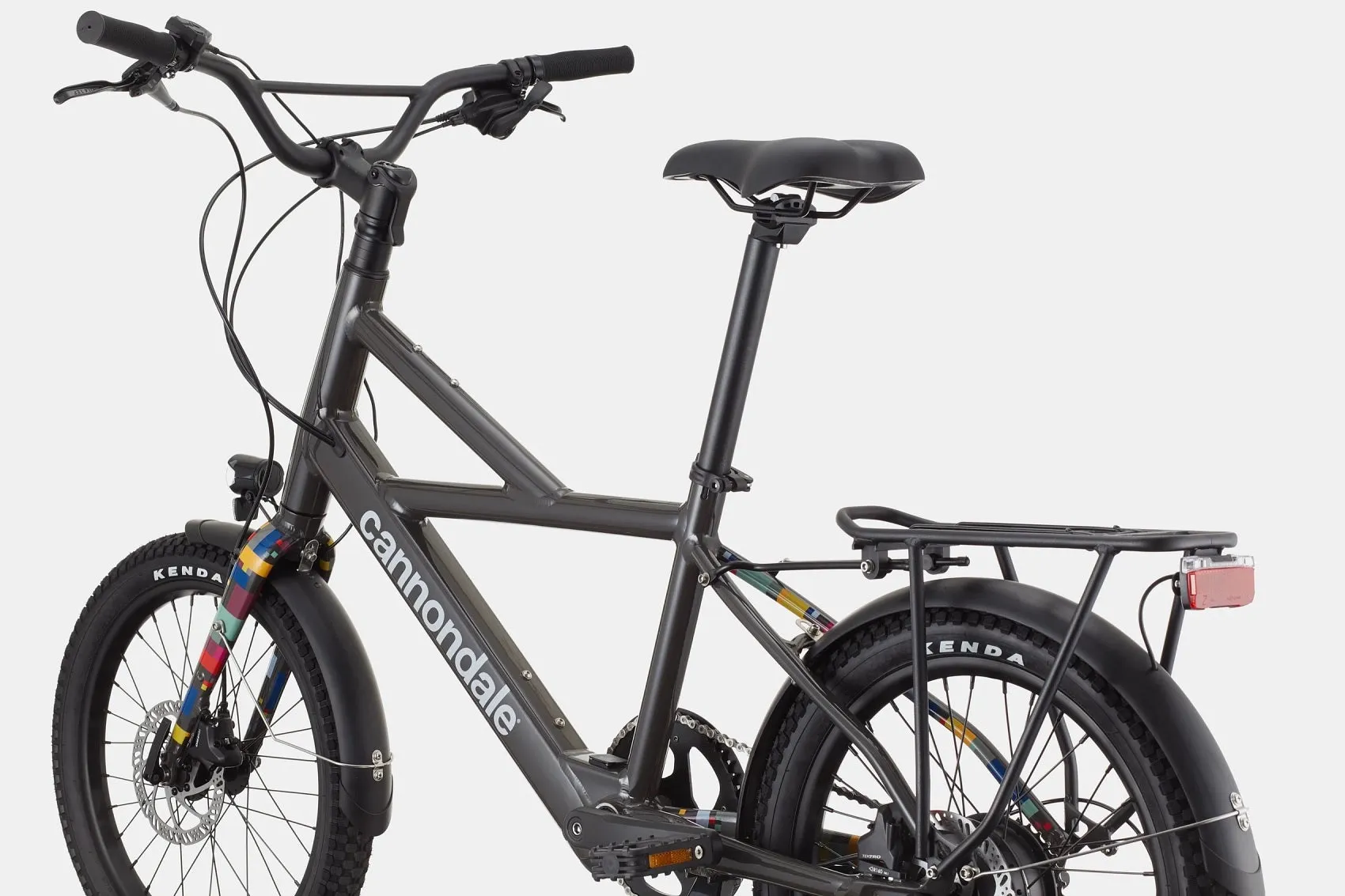

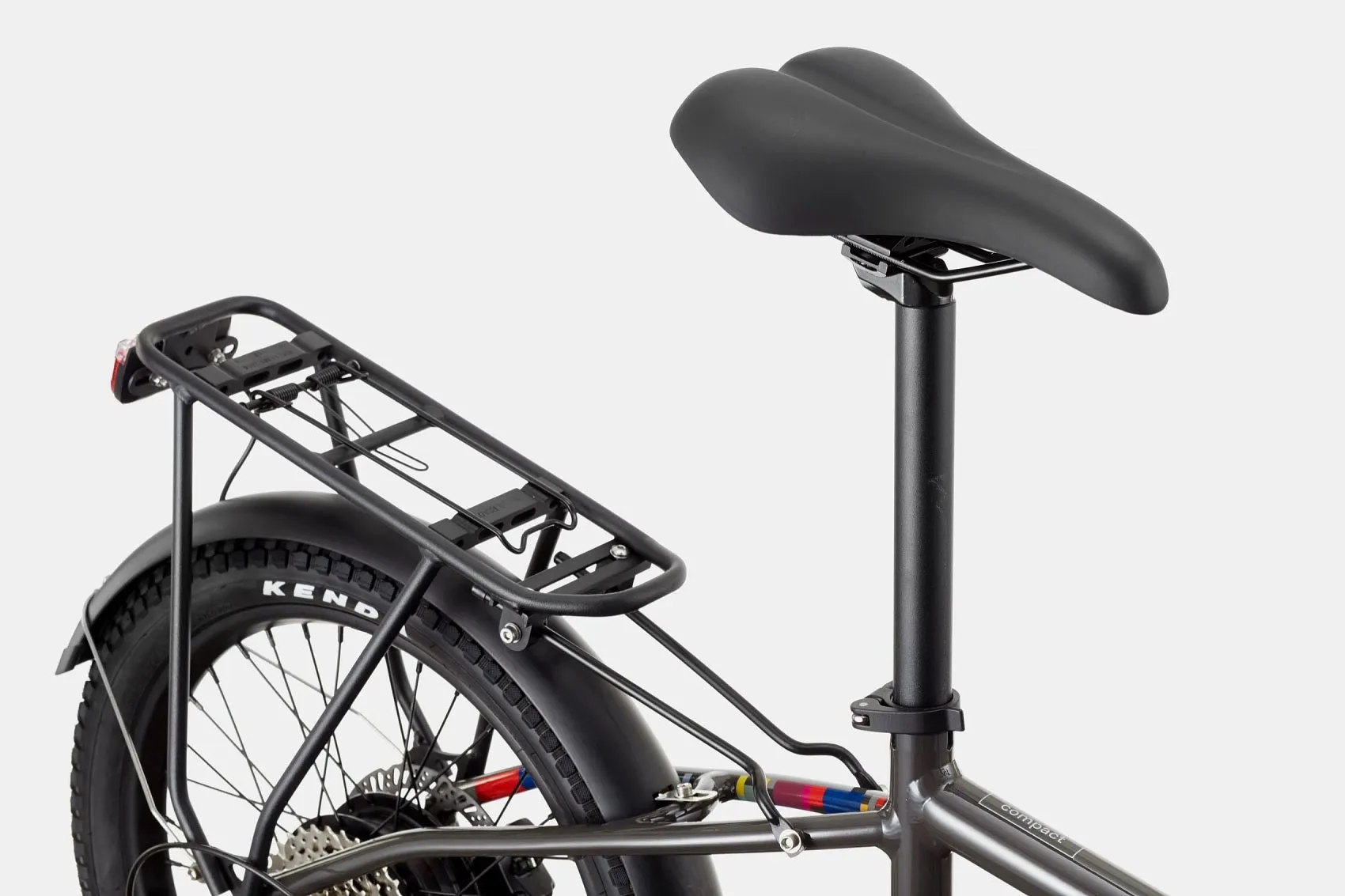

Fully equipped with lights, fenders, a rear rack, and big, grippy tires, Compact Neo is a versatile, easy to ride e-bike that gets you to where you’re going in style. From joyrides and commuting, to finding your next favorite place, Compact Neo can get you there with ease.
Specs
- Platform - Compact Neo
- Model Name - Compact Neo
- Model Code - C60102U
FRAMESET
- Frame - Compact Neo, SmartForm C2 Alloy, hidden downtube battery, 135x9mm, BSA 73, post mount disc
- Fork - Compact Neo SmartForm C2 Alloy, 1-1/8" steerer, post mount disc, 100x9mm
- Headset - Semi-Integrated, 1-1/8"
E-SYSTEM
- Drive Unit - Hyena MRC-250, 250W
- Battery - Hyena 250Wh
- Charger - 2A
- Display - Hyena HMI LED
DRIVETRAIN
- Rear Derailleur - microSHIFT M26S Short-Cage
- Shifters - microSHIFT 39-8R Thumb-Tap, 8-speed
- Chain - KMC X8, 8-Speed
- Crank - Samox, 48T
- Rear Cogs - Sunrace, 11-34, 8-Speed
- Bottom Bracket - Hyena torque sensor
BRAKES
- BrakesTektro HD-R280 hydraulic disc, 160/160mm rotors
- Brake Levers - Tektro
WHEELS
- Rims - Cannondale, lightweight alloy, 20", 32h Front / 36h Rear
- Spokes - (F) Stainless Steel, 14g / (R) 13g
- Tires - Kenda K-Rad, 20 x 2.35"
- Tire Size - 2.35
- Wheel Size - 20
- Hubs - (F) Formula DC-1420, 100mm QR / (R) Hyena 250W Rear Hub Motor MRC-250
- Front Tire - Kenda K-Rad, 20 x 2.35"
- Rear Tire - Kenda K-Rad, 20 x 2.35"
COMPONENTS

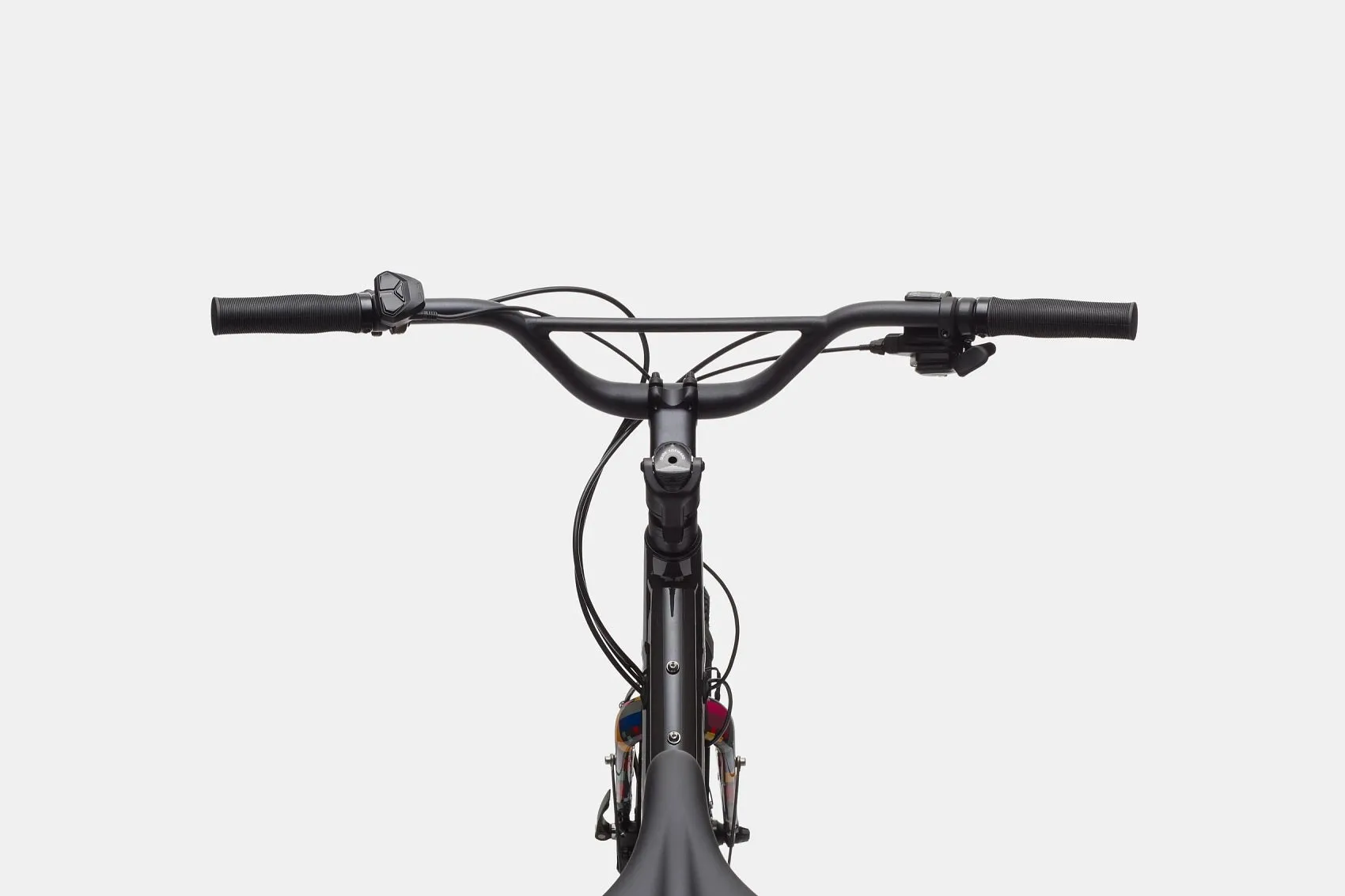

- Handlebar - Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm

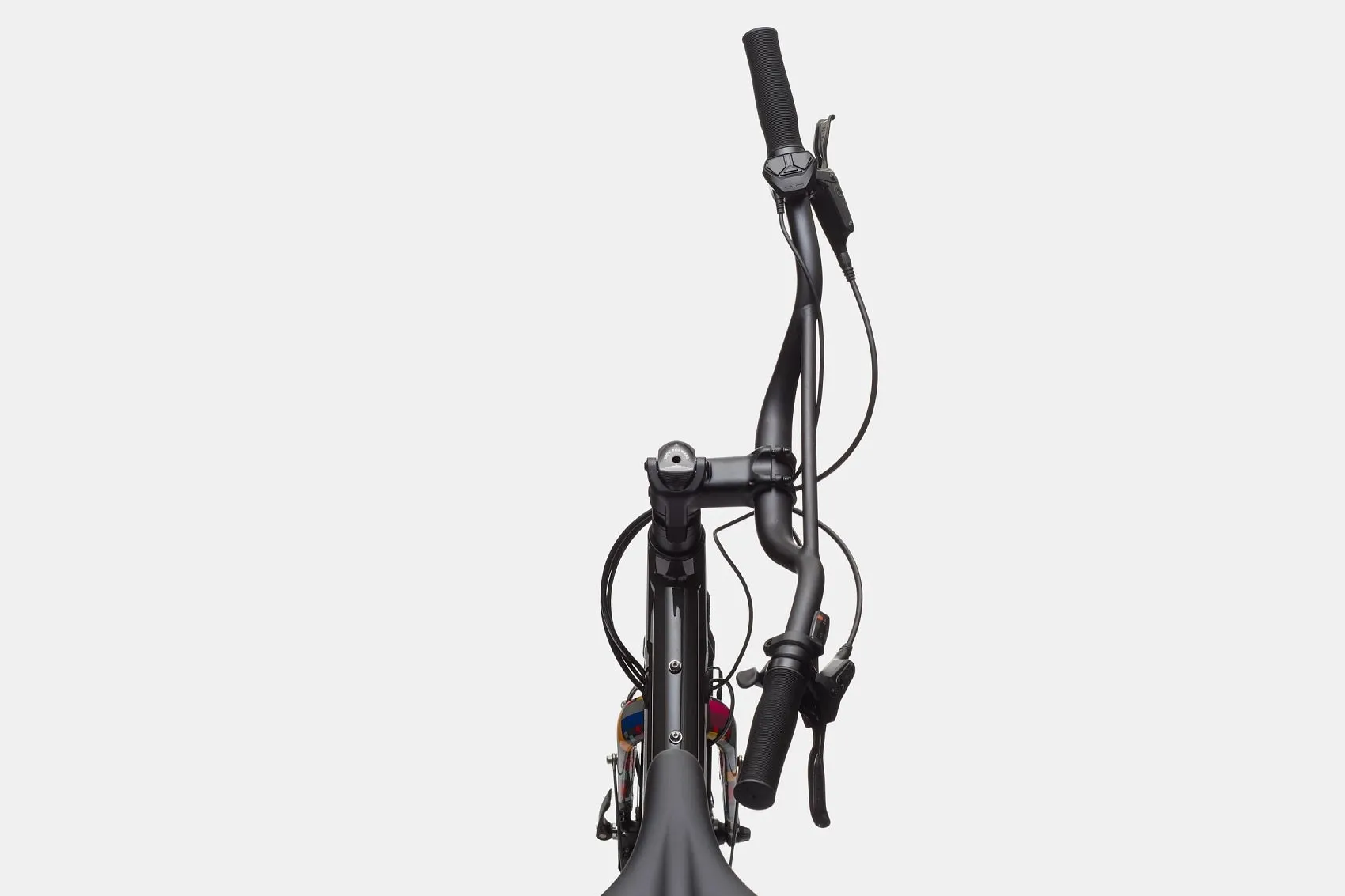

- Stem - TranzX Folding Stem
- Grips - Cannondale Comfort
- Saddle - Cannondale Treadwell, 170mm, steel rails
- Seatpost - Cannondale 4, 6061 Alloy, 31.6
CONNECTIVITY
- Wheel Sensor - Cannondale Wheel Sensor
* Specifications subject to change without notice
