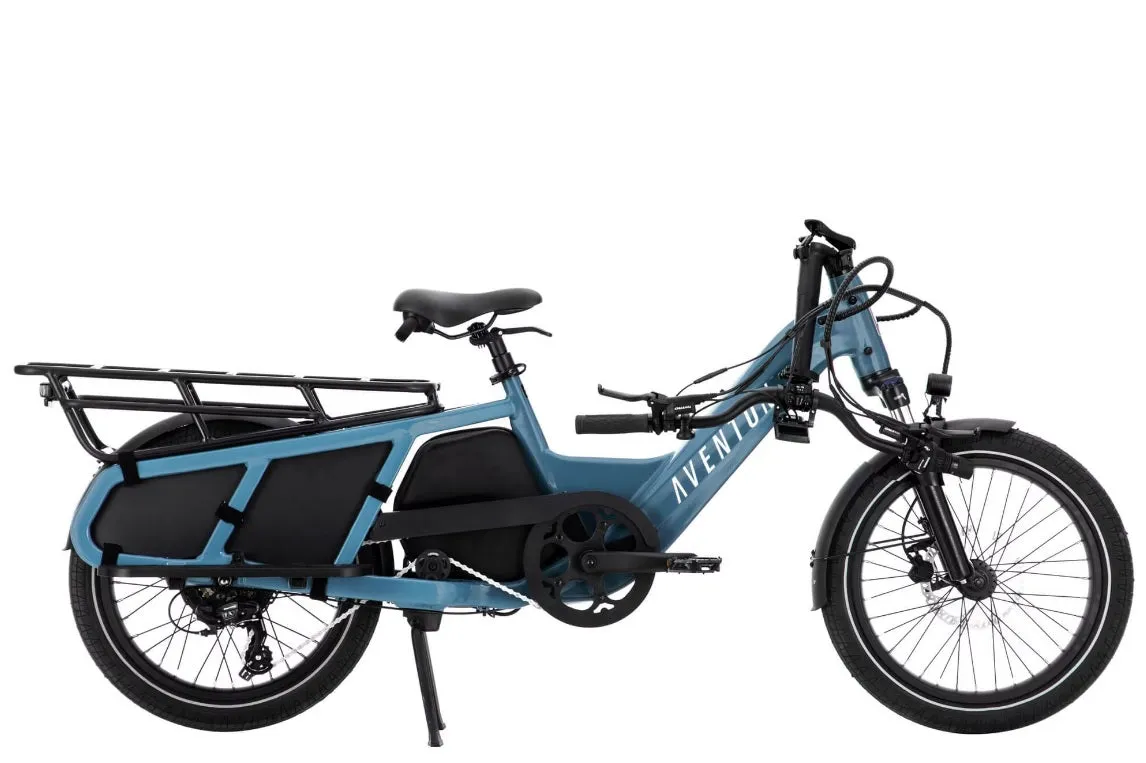

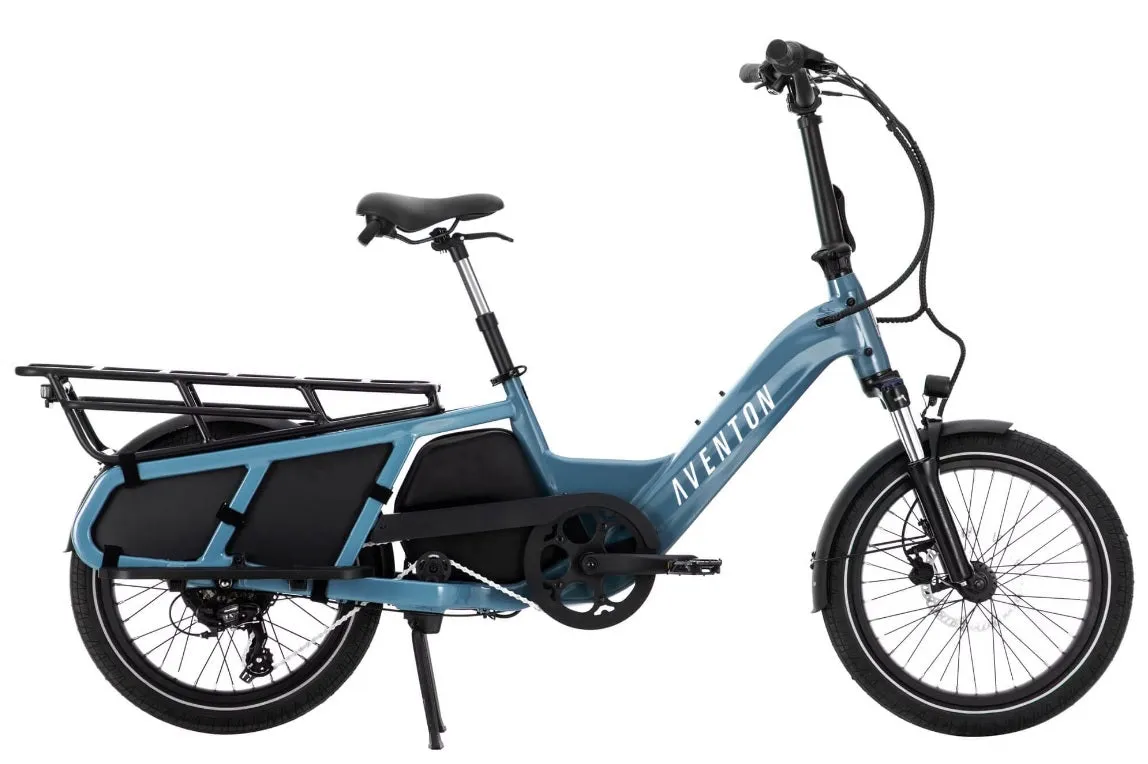

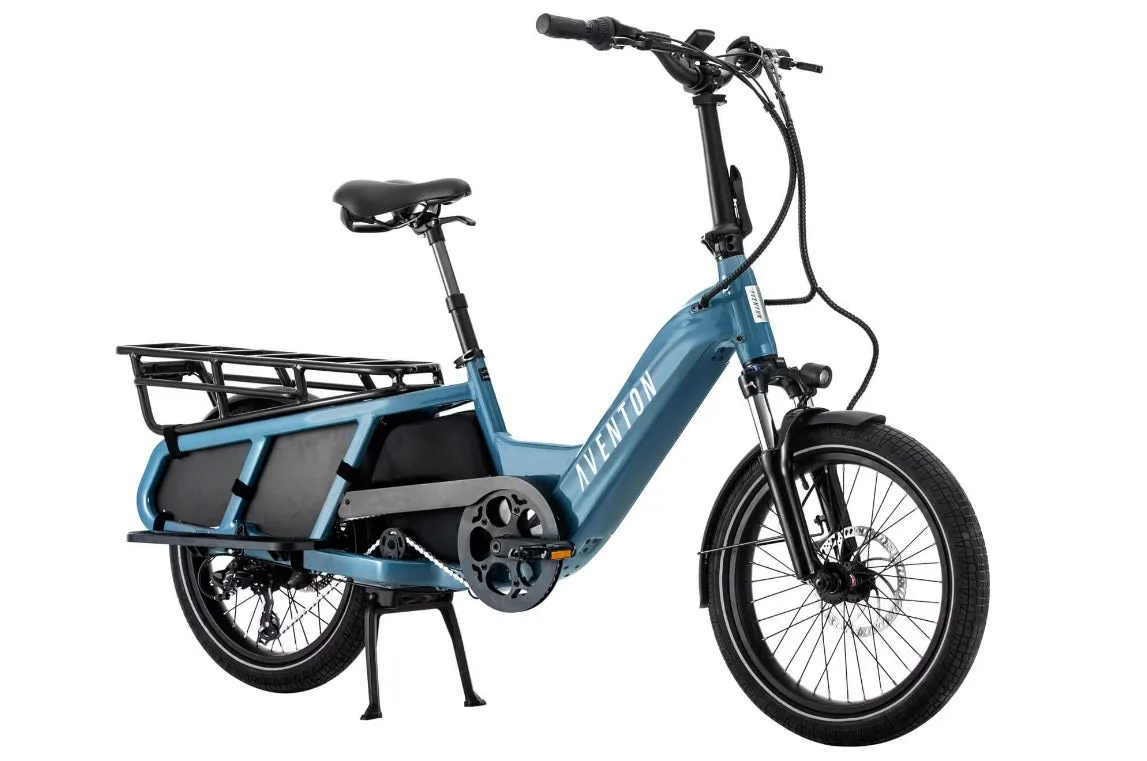

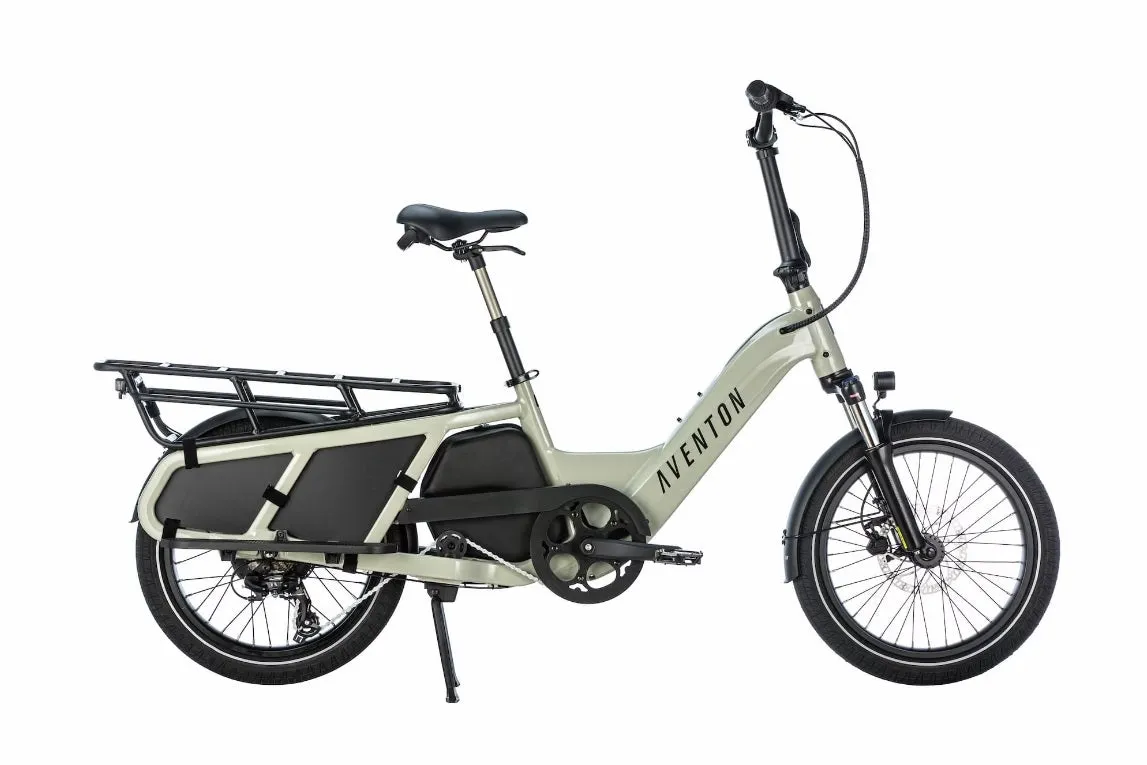

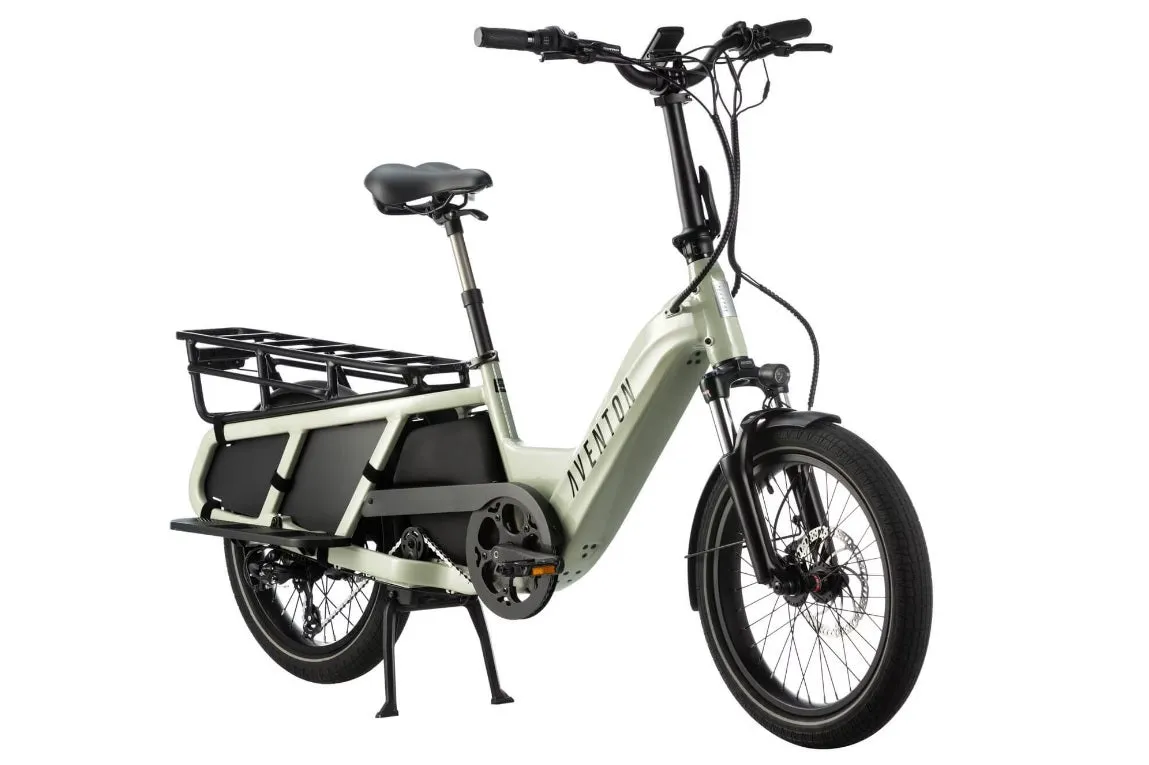

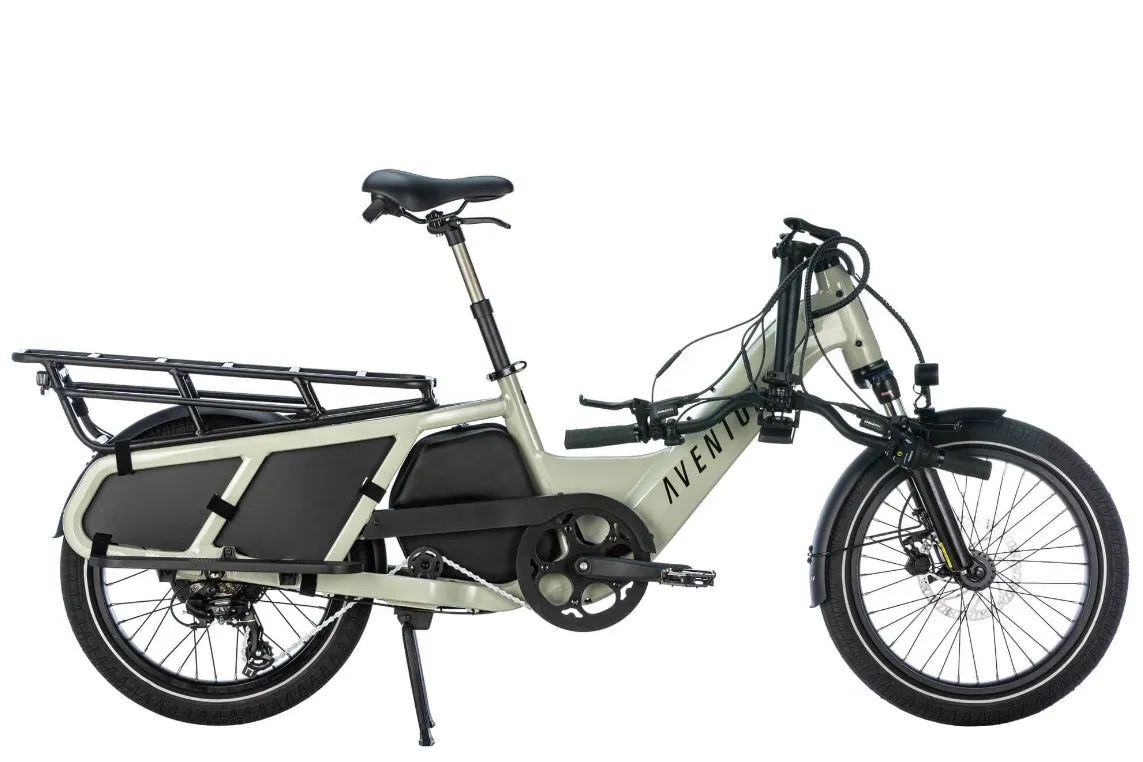

Haul it all with the Aventon Abound Cargo E-Bike, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos, too! The Aventon Abound Cargo E-Bike is equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let the Aventon Abound Cargo E-Bike do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.
Technical Overview

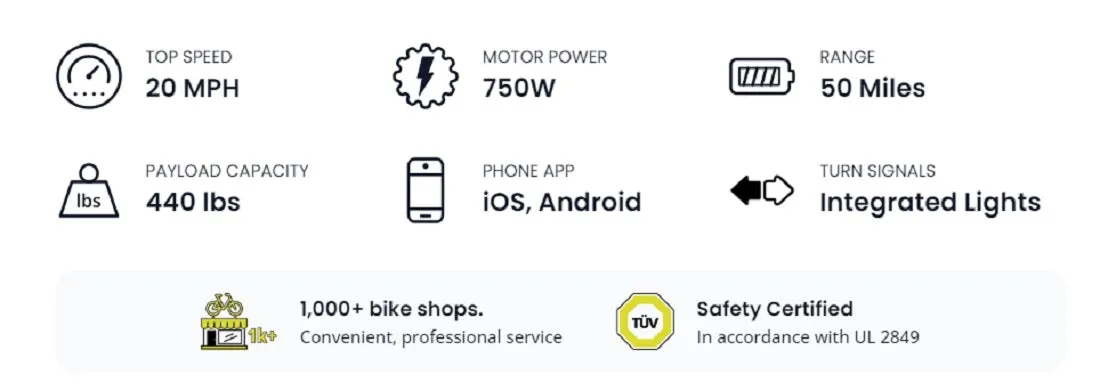

Technical Specifications
- Model - Abound Ebike

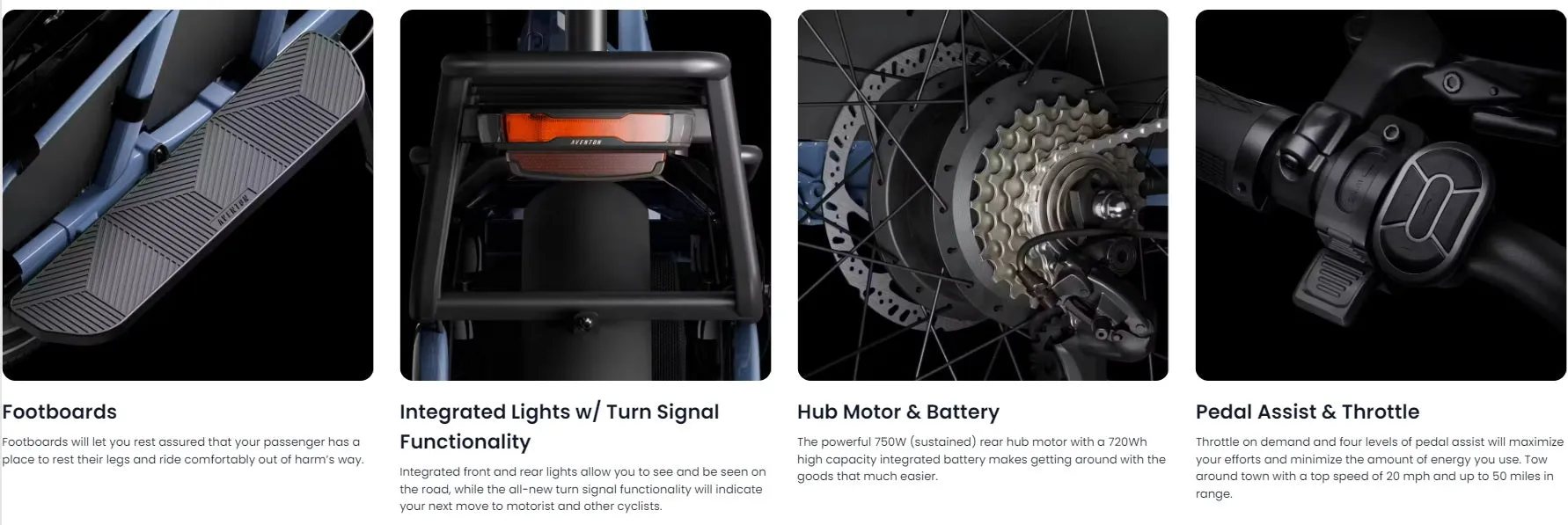

- Motor - 750w (sustained), 48v Rear Hub
- Throttle - Throttle on demand

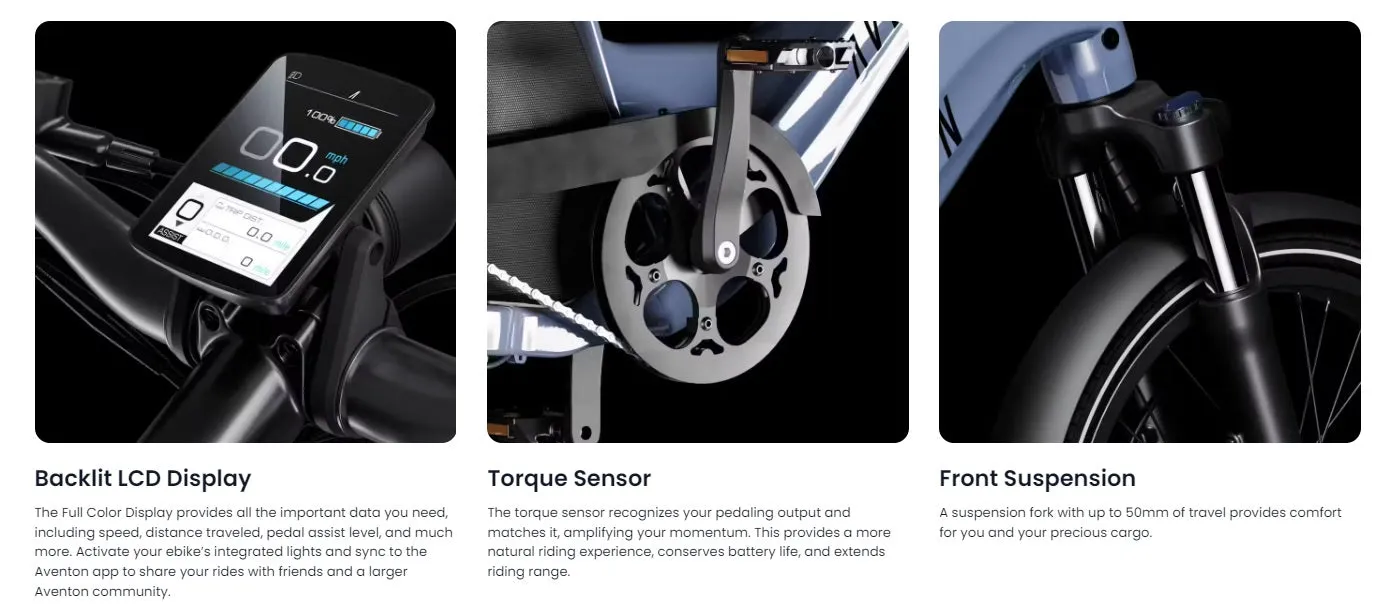

- Display - LCD Smart "Easy Read"
- Speed - 20 MPH
- Battery - 48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant
- Sensors - Torque Sensor
- Pedal Assist - 4 Levels
- Charger - 48V, 3 Amp Fast Charger
- Range - Up to 50 miles
- Frame - Double-Butted Aluminum Alloy
- Weight - 81 lbs
- Pedals - 9/16" Alloy Platform
- Fork - Suspension Fork with 50mm travel, with lockout
- Total Cargo Weight Limit - 440 lbs
- Kickstand - Included, center mount
- Bottom Bracket - Square Taper, Sealed, Torque Sensor
- Crankset - 170mm w/ 52 T
- Rear Derailleur - Shimano 7 speed
- Cassette - 14-28T, 7 Speed
- Shift Lever - 7 Speed Twist
- Brakes - Hydraulic
- Chain - 148 Link, 7 Speed
- Rims - Double Wall Aluminum 36h Front & Rear
- Tubes - Butyl Rubber, Schrader Valve
- Hubs - 36H Disc Nutted Front, Nutted Rear
- Tires - 20 x 2.4
- Saddle - Aventon Saddle
- Seatpost - Dropper Seatpost, 30.9mm x 440mm
- Stem - Folding, Height Adjustable, 31.8mm, 9 Degree Rise
- Seat Clamp - 34.9mm Quick Release
- Handlebars - Aluminum 31.8mm, 700mm
- Headset - Sealed Bearing Headset
- Grips - Ergonomic Comfort
- Storage Bag - Polyester, EVA Waterproof
- Bike Box - Bike Box: 167cm x 37cm x 73cm (65in. x 15in. x 29in.)
- Footboards - Aluminum
- Spokes - Black Stainless 13G Front / 12G Rear

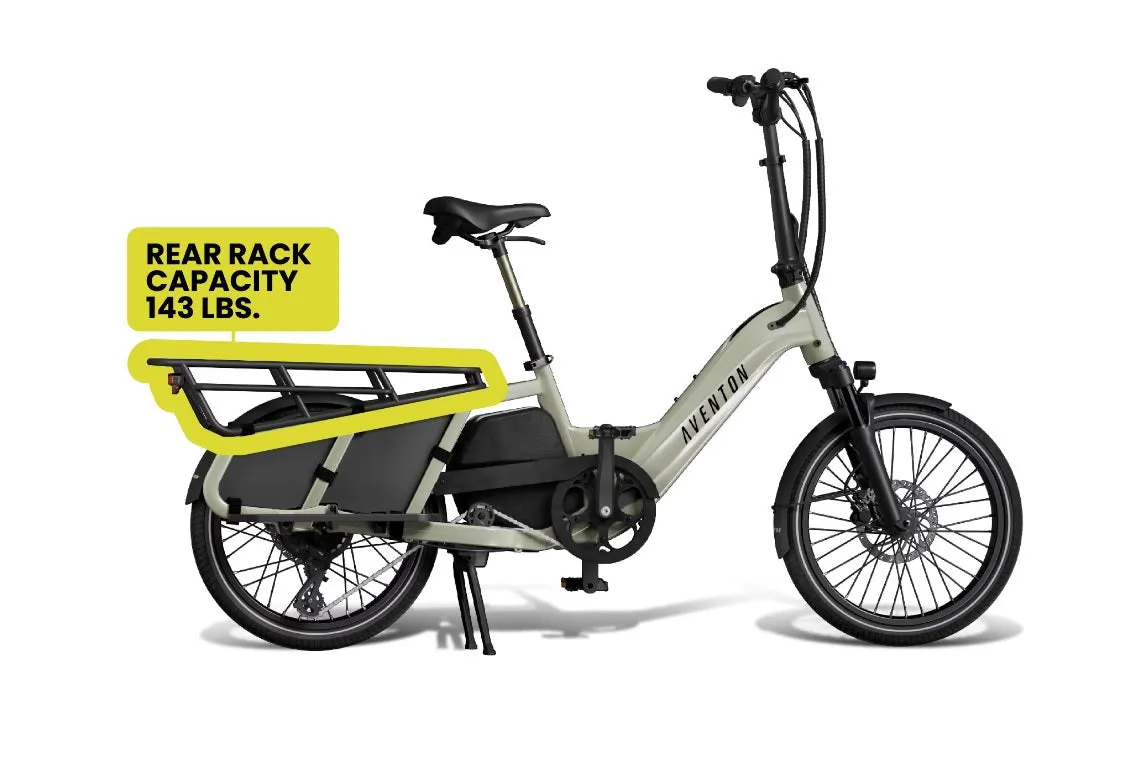

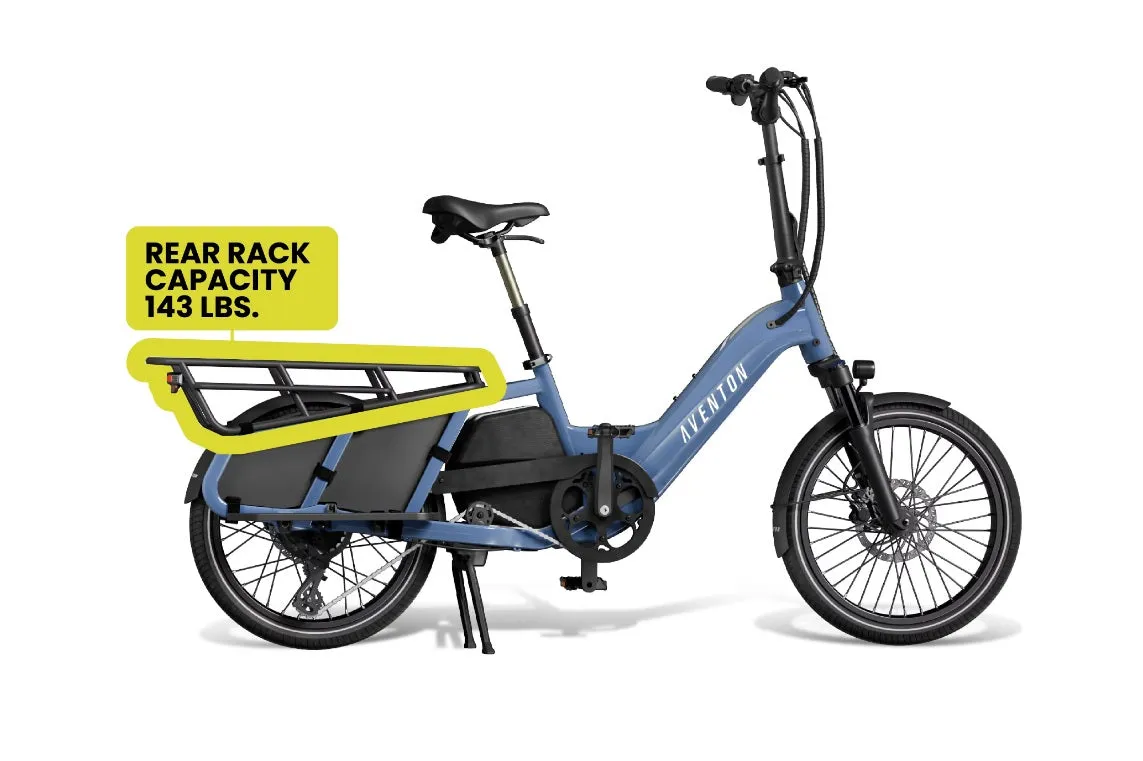

- Rear Rack Weight Limit - 143 lbs
- Ideal Use - Cargo
- Frame Style - Step-Through
- Lights - Front and rear lights integrated
- Folding - No

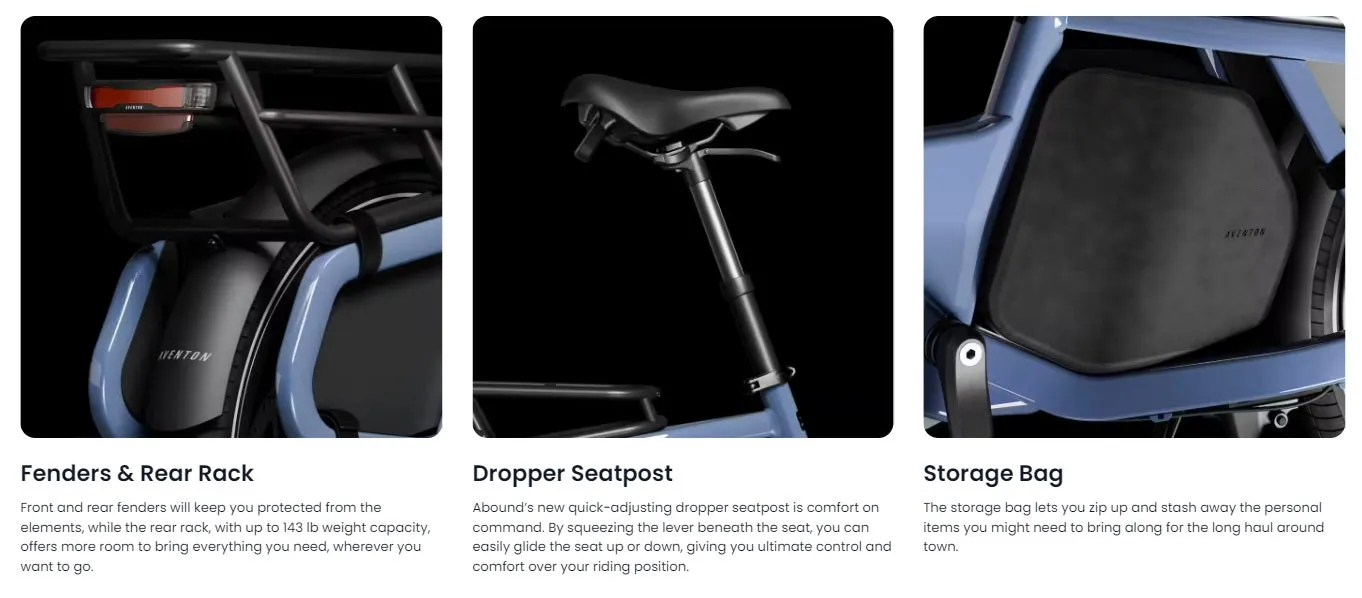

- Fenders - Included
- Suspension - Front
- Rear Rack - Included

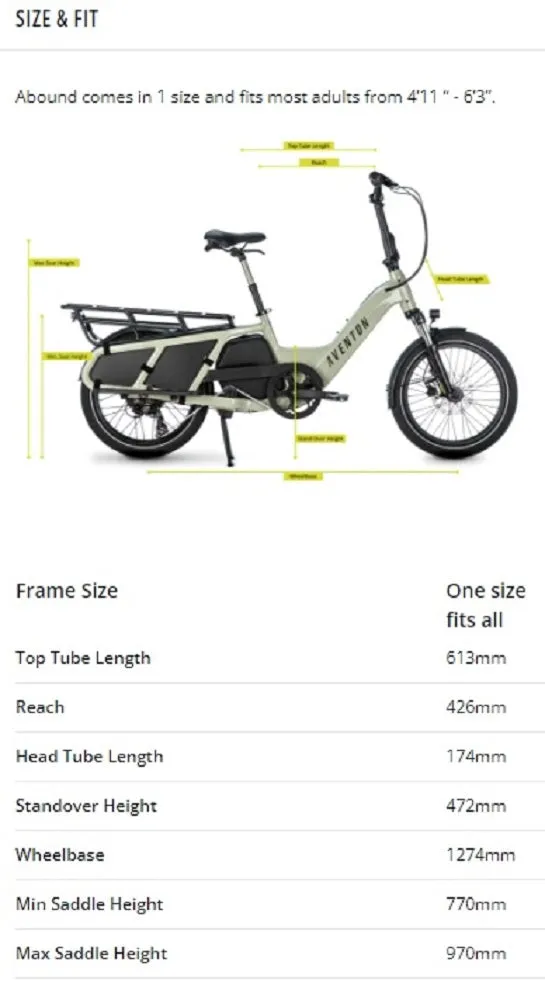

- Recommended Rider Height - 4'11" - 6'3"
*Specifications subject to change without notice
* Mack Cycle recommends to have your local bike store or authorized mechanic complete the assembly of your new Aventon Abound E-bike.
