The motor gives you plenty of power to tackle hills or headwinds, while the folding design makes it easy to take with you on the go. And if you need to stop in a hurry, the front and rear disc brakes will make sure you come to a safe halt.

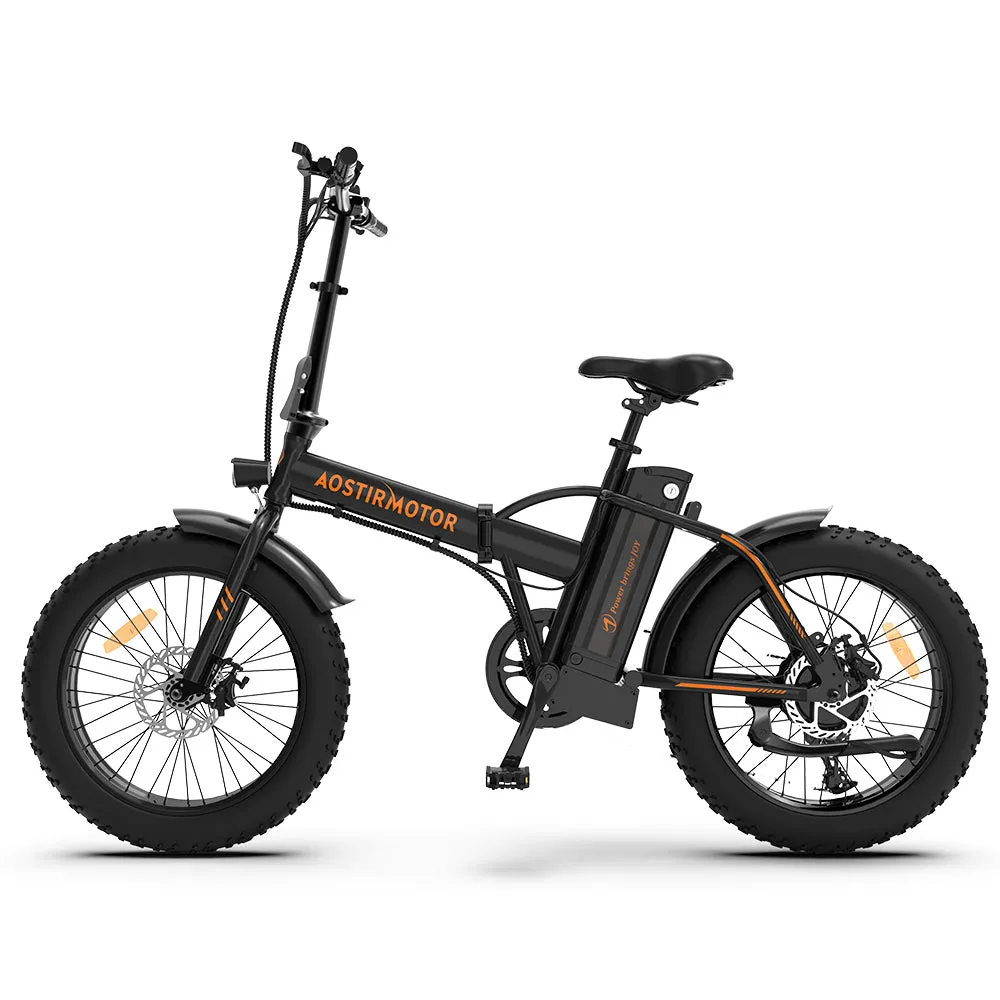

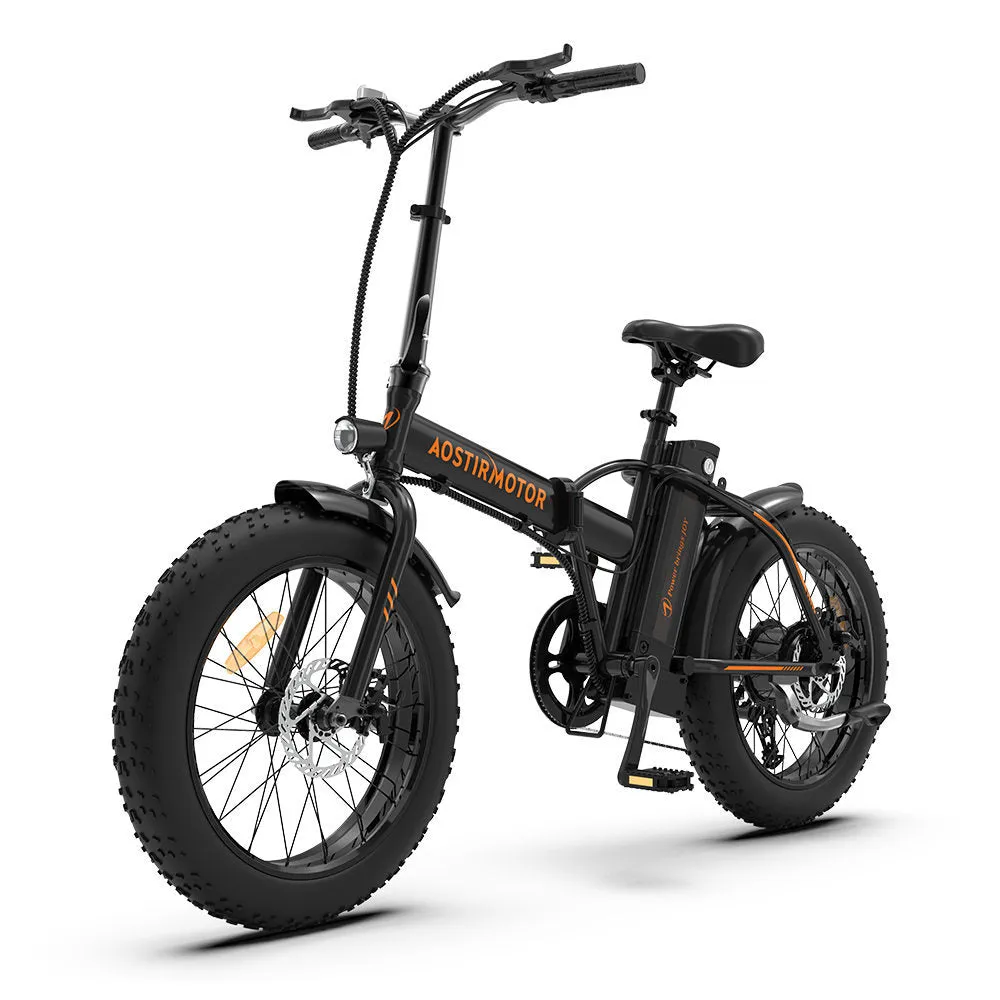

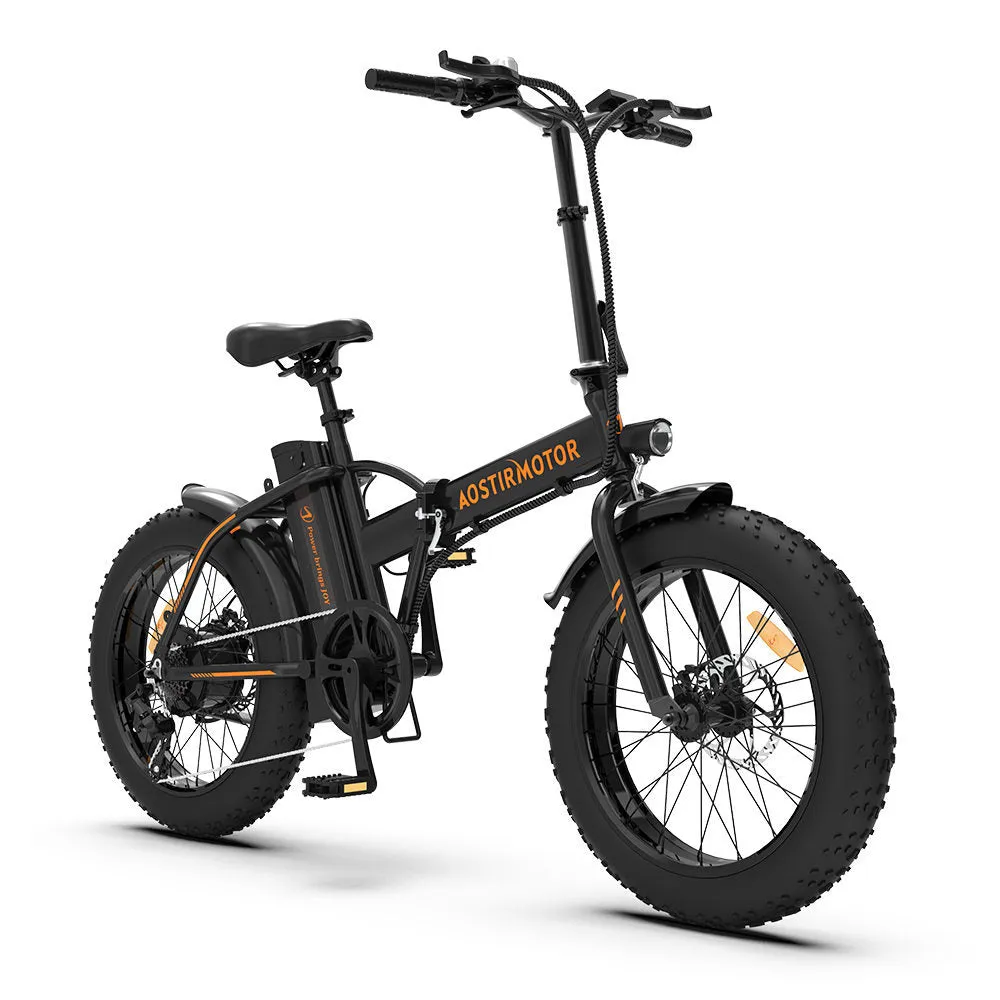

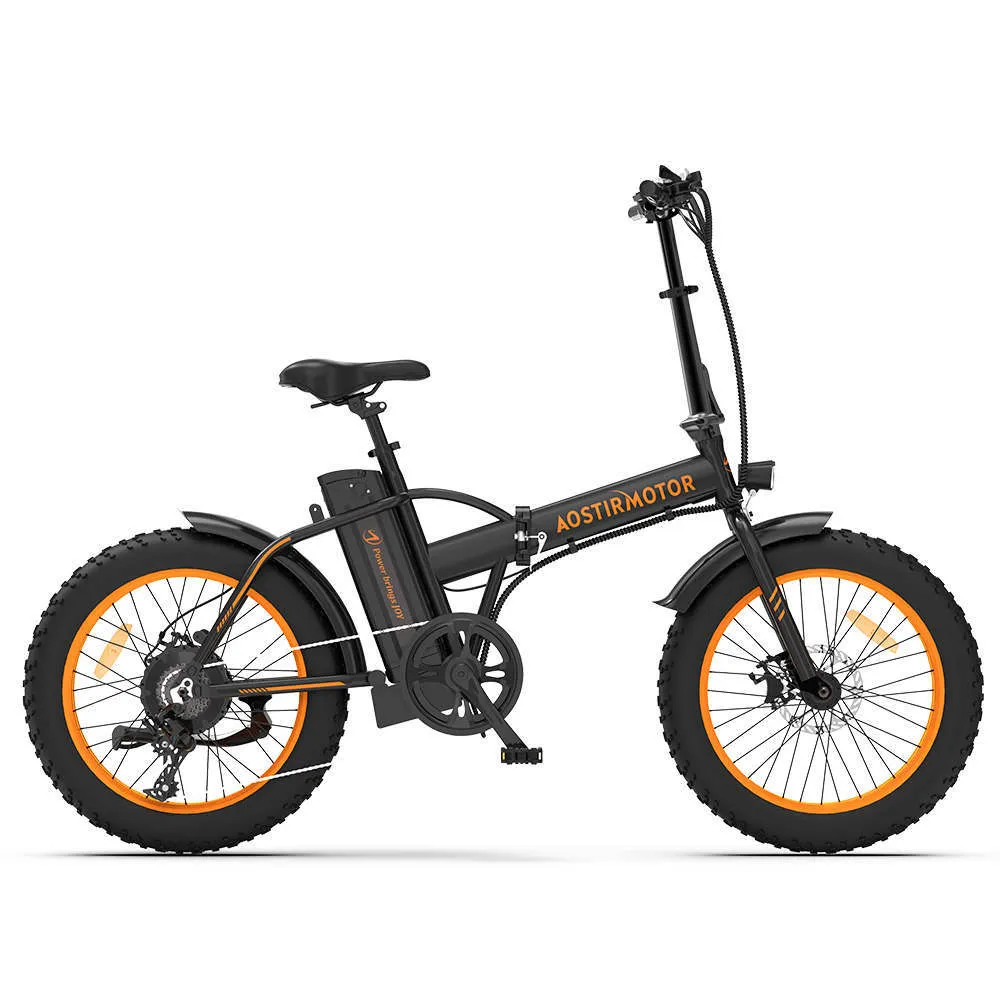

So whether you're looking for an electric bike to take on your next adventure, or just want a reliable and fun way to get around town, the AostirMotor Fat Tire Folding Electric Bike A20 is a perfect choice.

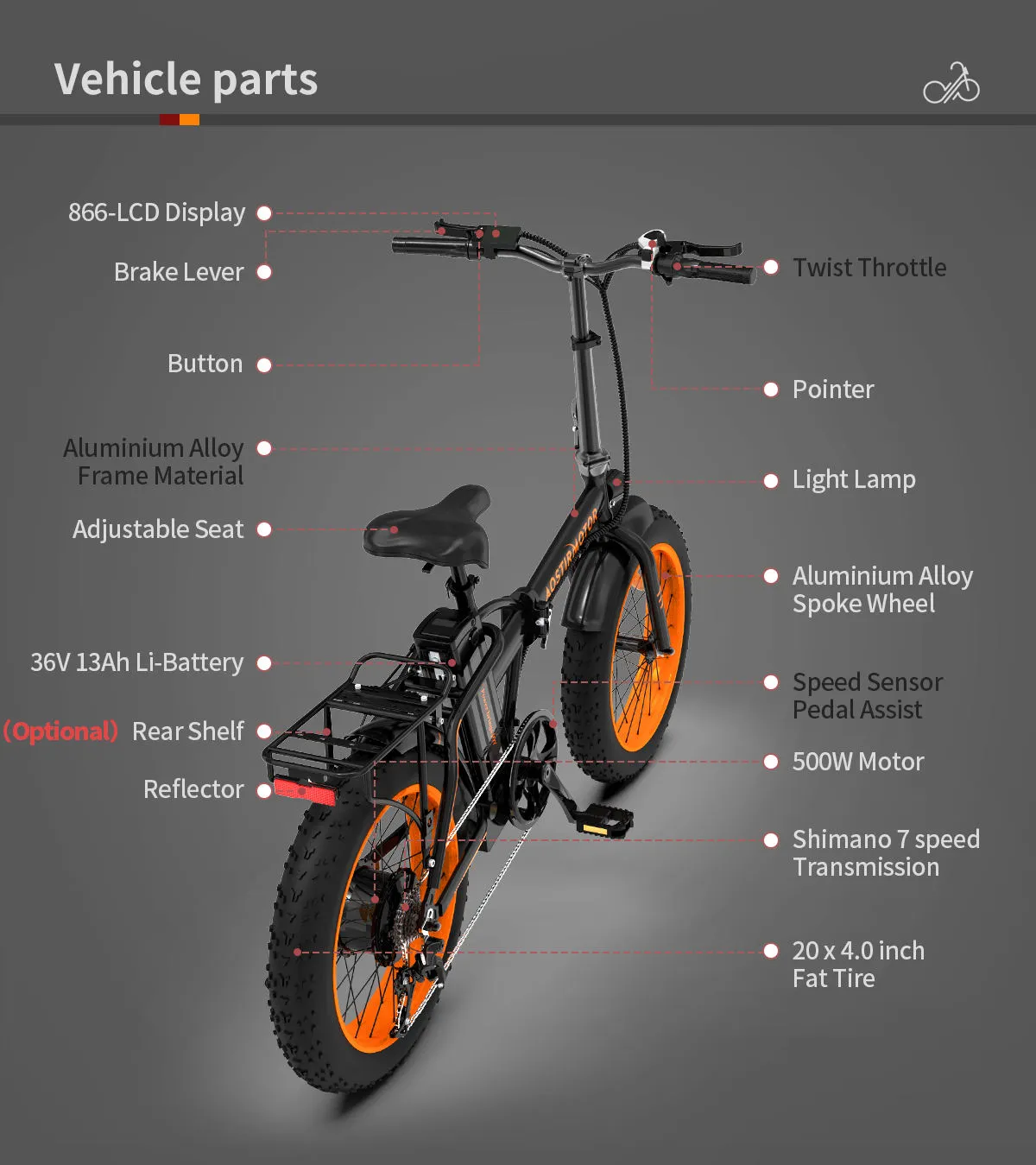

Components | Technical Parameters |

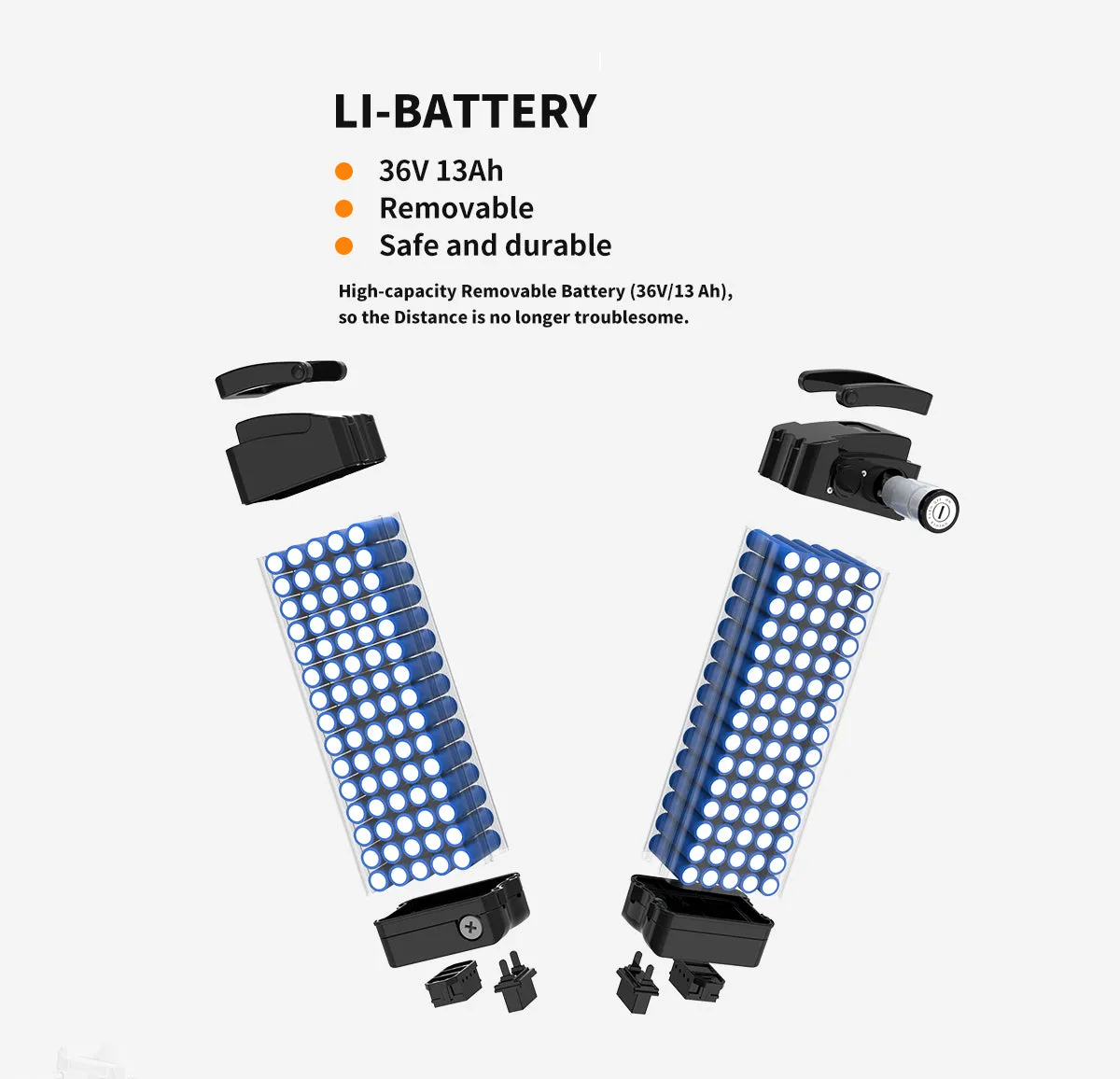

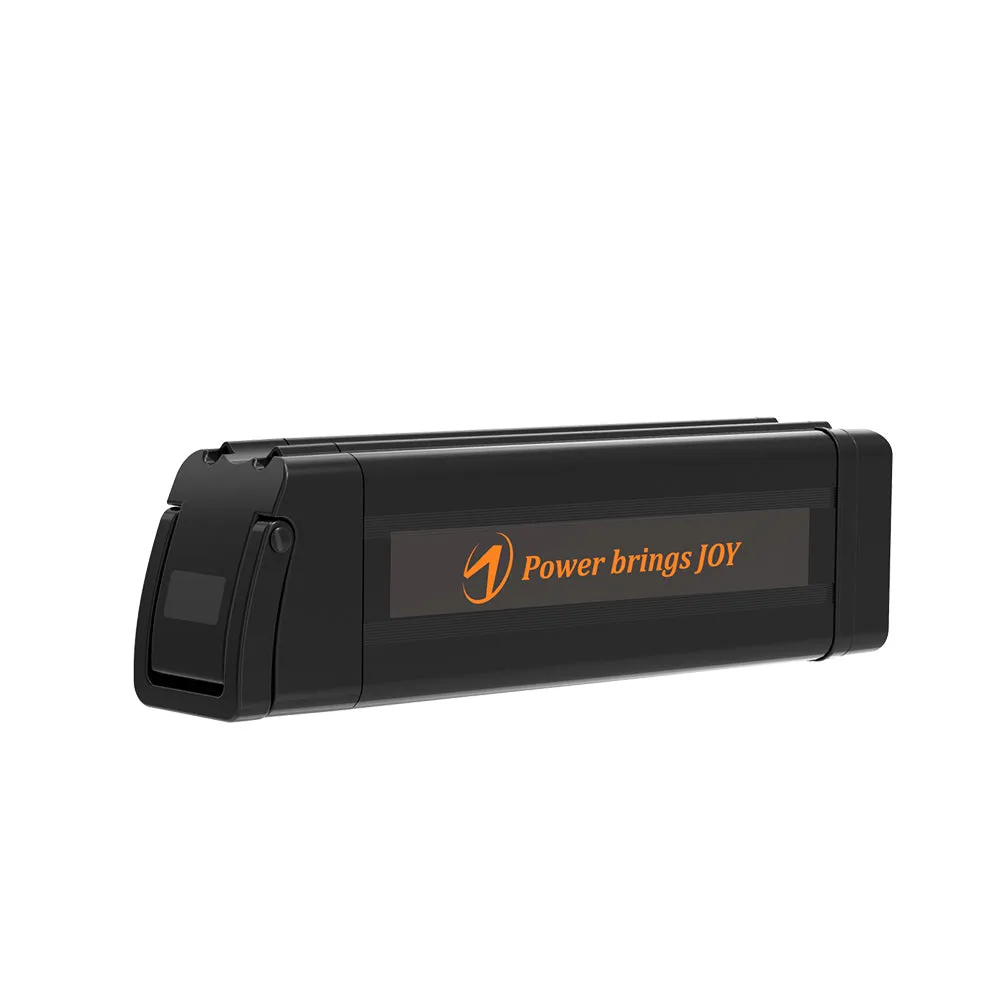

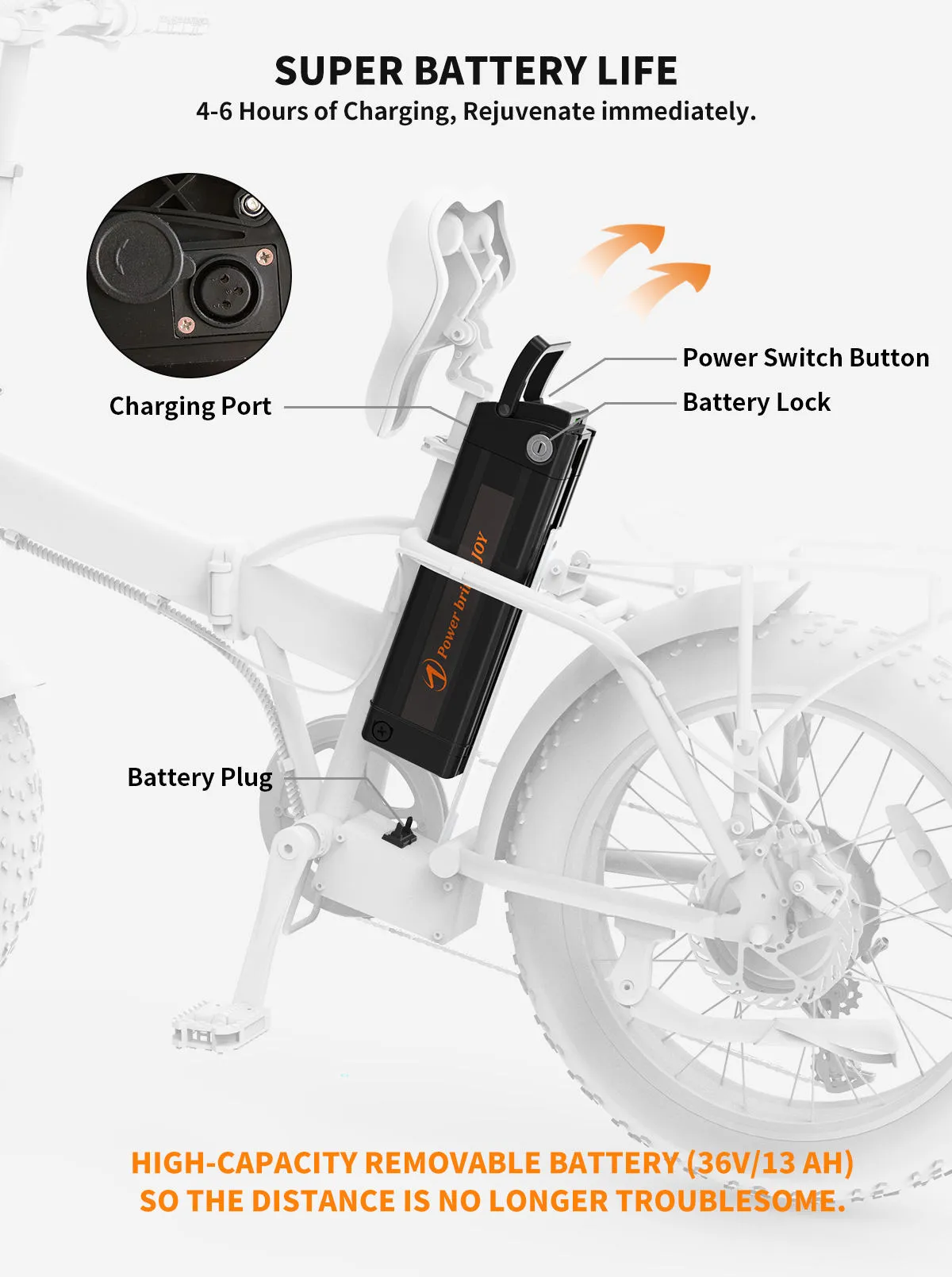

Battery | 36V 13Ah Lithium Battery |

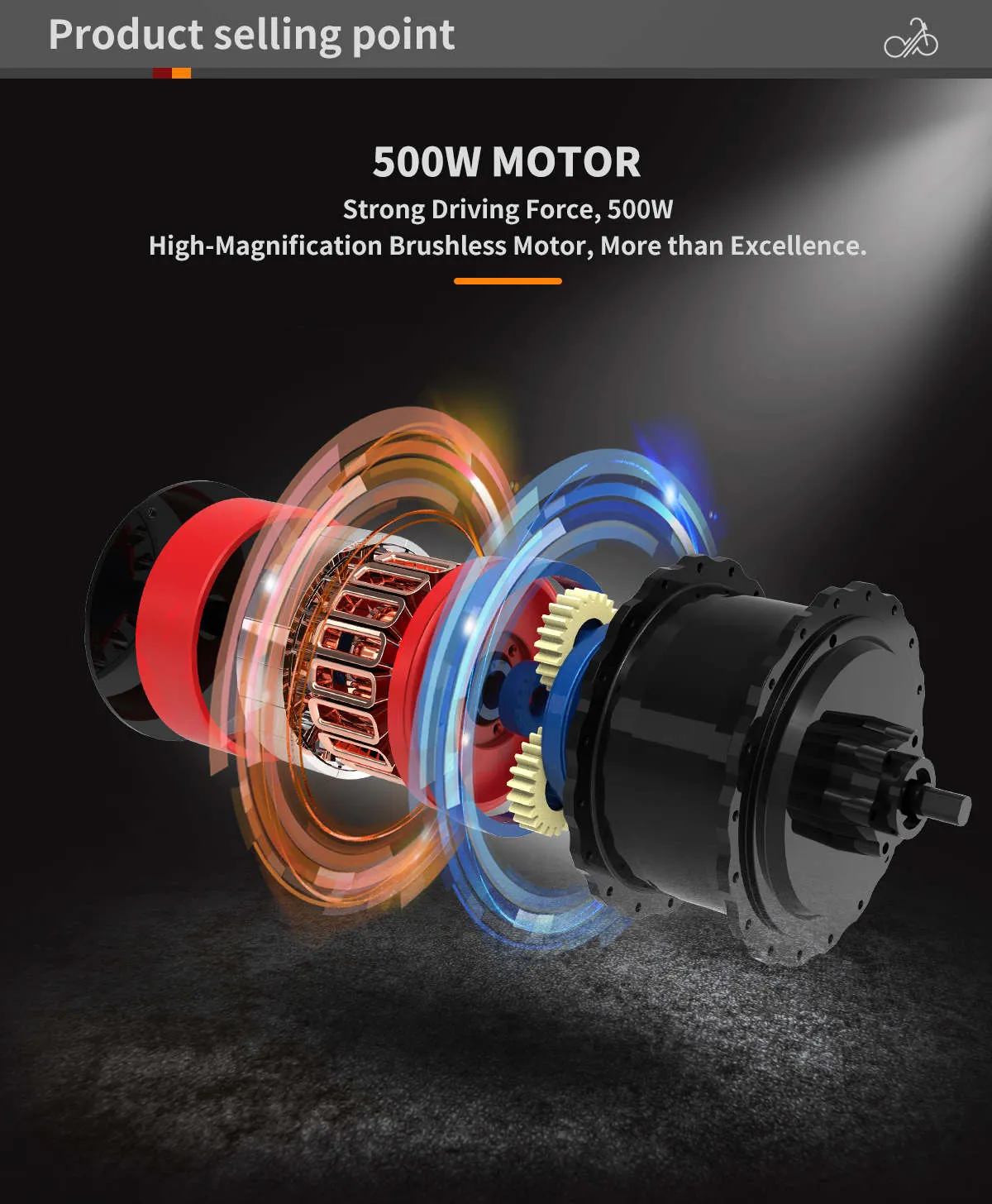

Motor | 500W Motor (Brand: TRUCK, Refer to Bafang Quality) |
Controller | 36V 22A |
Charger | 110-220V（US/Europe） |
Display | 866-LCD |
Turn-Handle | Rotary |
Power sensor | PAS intelligent pedal assistant system |
Charge Time | 4-6 hours （Recharge regularly to extend the life of battery） |
Fork | Aluminum Alloy Rigid Fork |

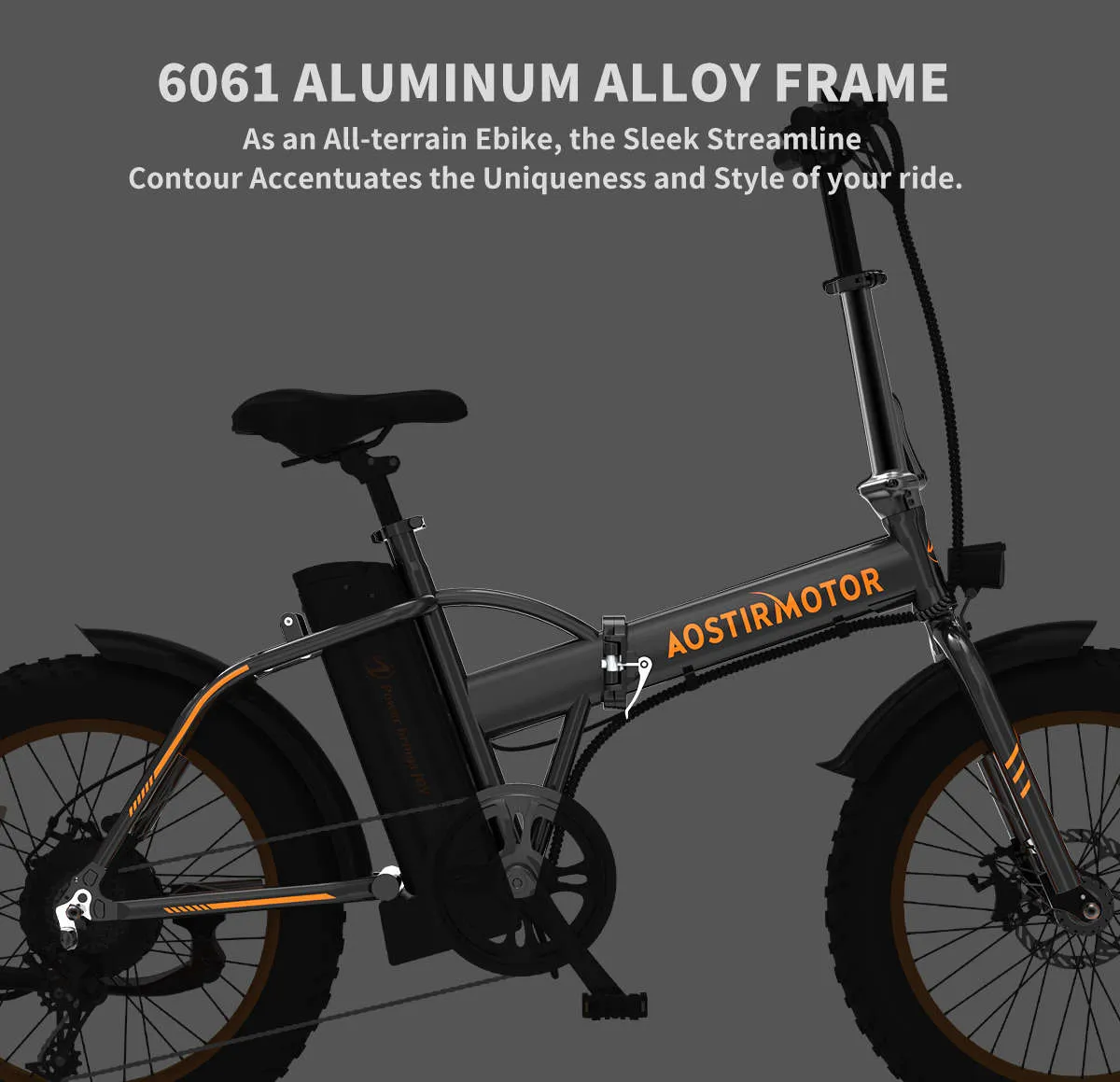

Frame | 6061 Aluminum Alloy |
Handlebar | 31.8*660mm |
Stem | 28.6*31.8*110mm |
Rear Rack | NO (Optional) |
Brake | F/R Mechanical Brake （With 4pcs Brake Pads） |
Disc Brake | Front 180 & Rear 160 |
Brake lever | Universal |
Rim form | Spoke wheel |
Rim Material | Aluminum alloy |

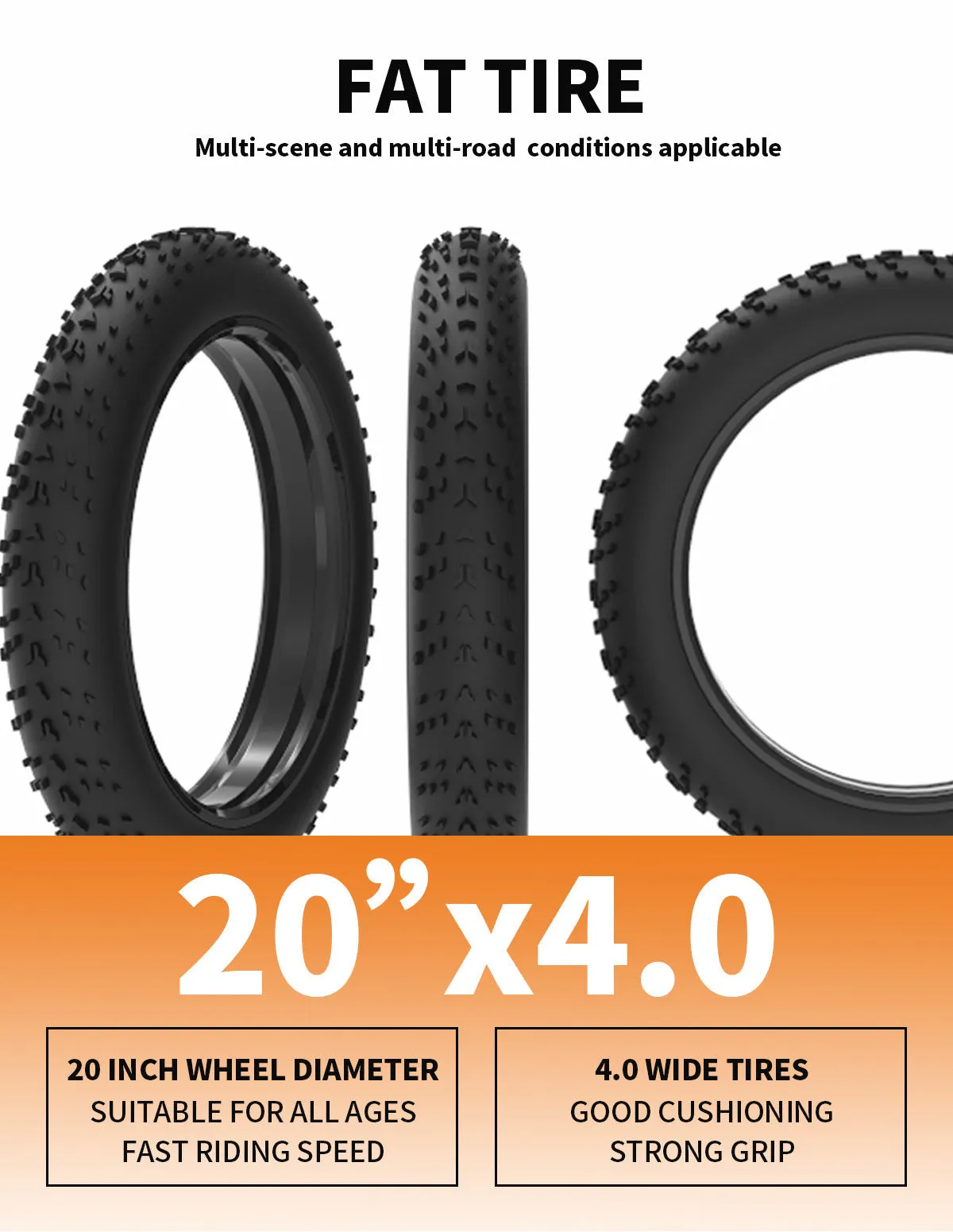

Tire | 20x4.0 inch Fat Tire |

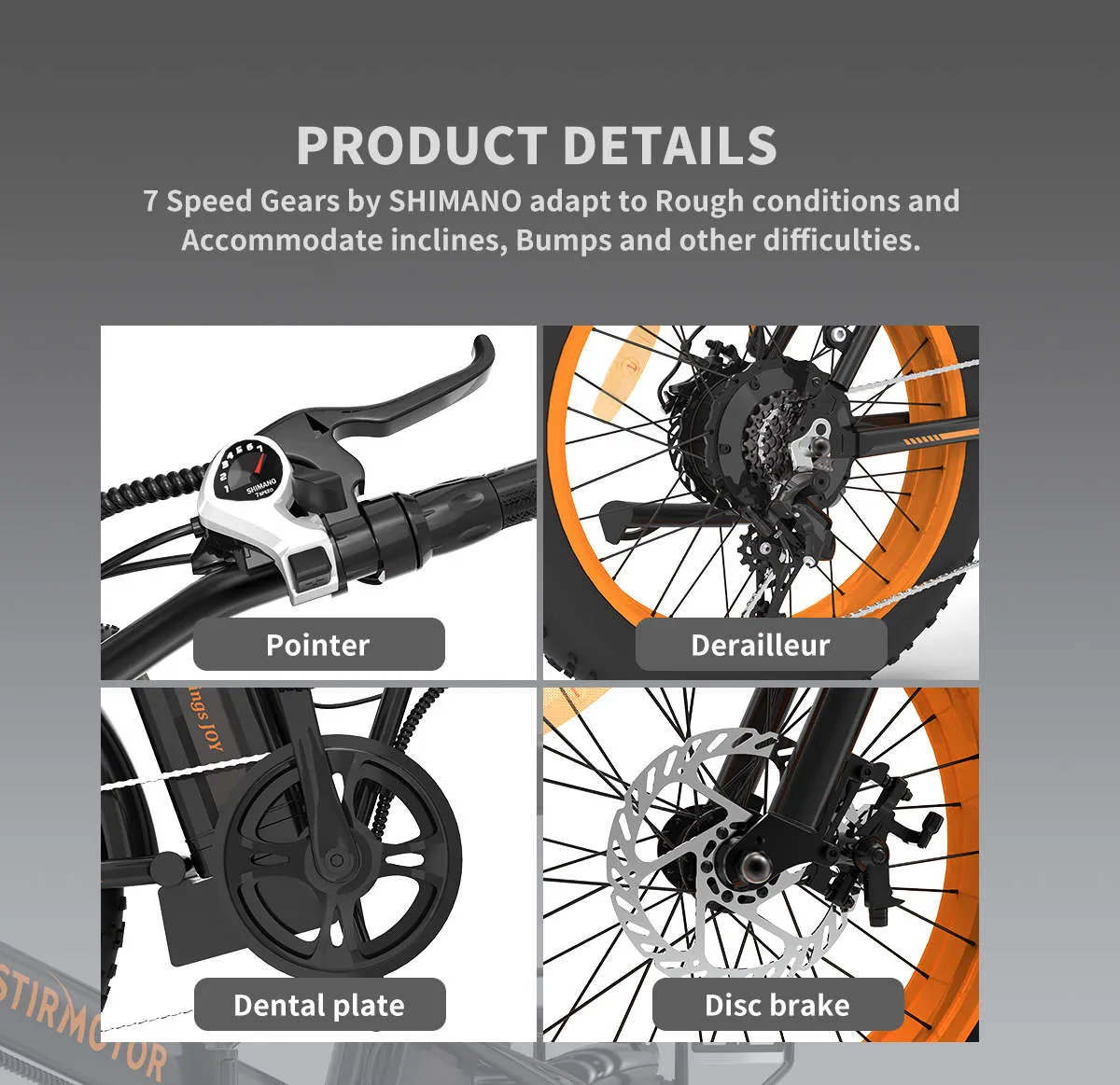

Gear Shift Lever | 7 Speed Dial SHIMANO/Sunrace |
Derailleur | 7 Speed SHIMANO/Sunrace |
Throttle | With |
Front suspension | NO |
Rear suspension | NO |
Structure shock absorption | Lightweight Aluminum Alloy Frame |
Saddle | Folding Saddle |
AL6061 T4T6 | |
27.2*250mm | |
Tube Clamp | D1=30mm D2=38mm |
Light | With Front light |
Pedal | Folding Pedal |
Footrest | Dedicated |
Fender | With |
Riding mode | Pedal Mode / Boost Mode / Power Mode |
Range Distance | 25-35 km （Pure Power mode） |
Max Speed | 40 km/h |

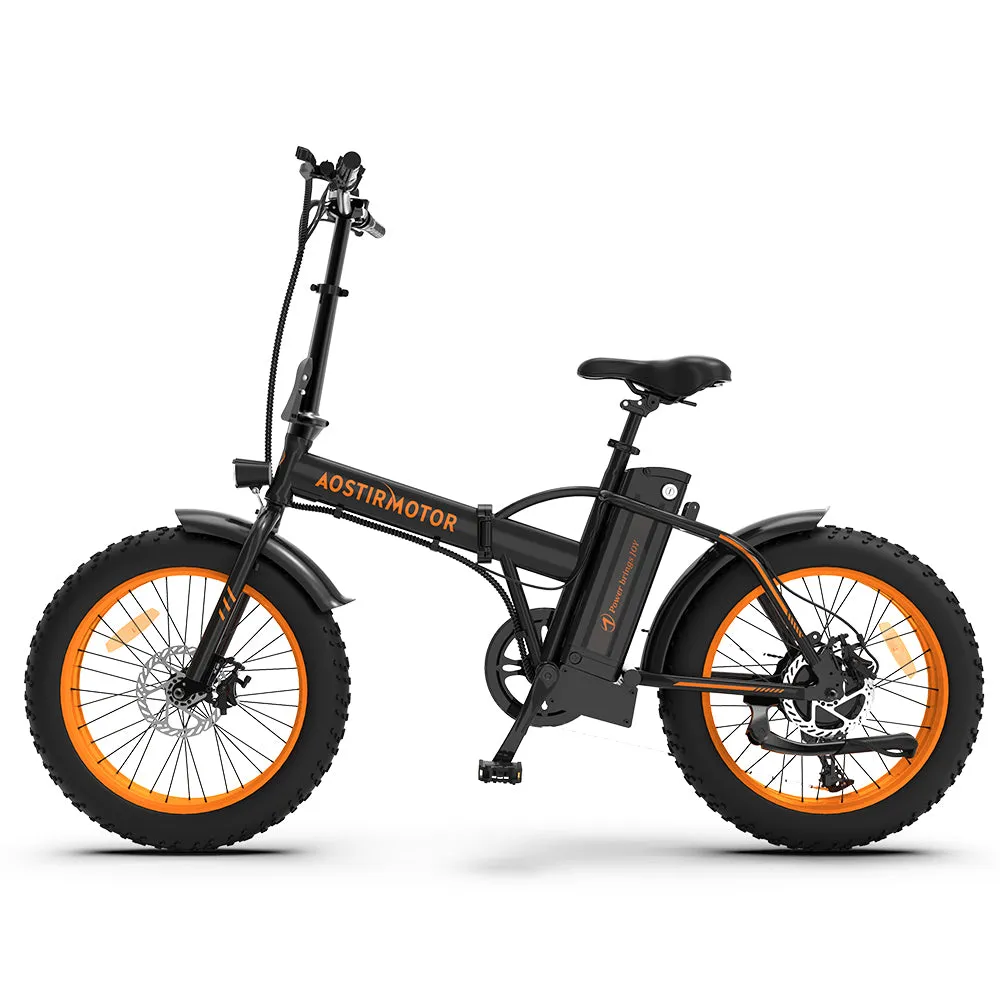

Color | Black / Orange (Rim) |
Net Weight | 29kg |
Gross Weight | 34kg |

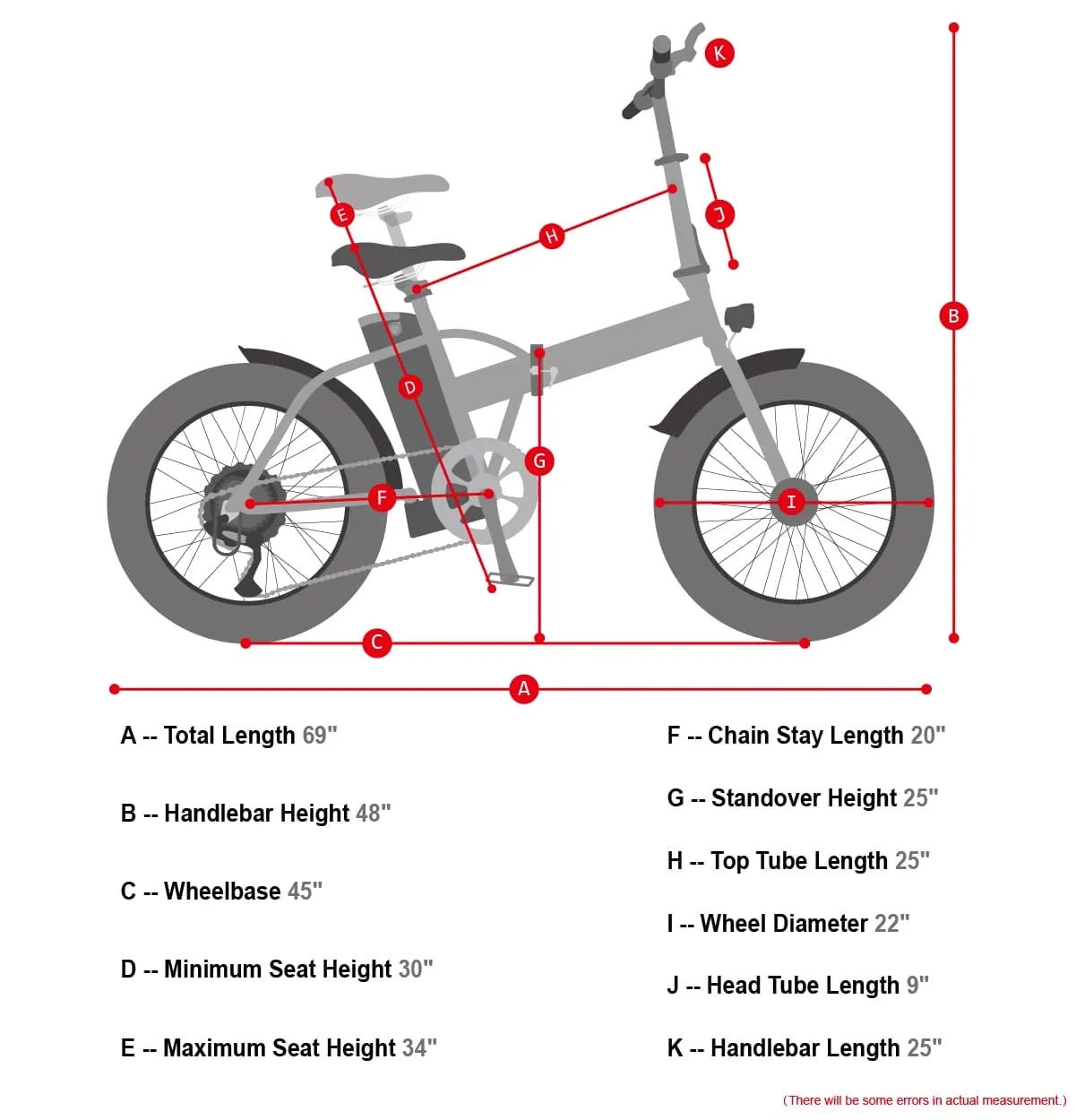

Product Size | 176*122cm |

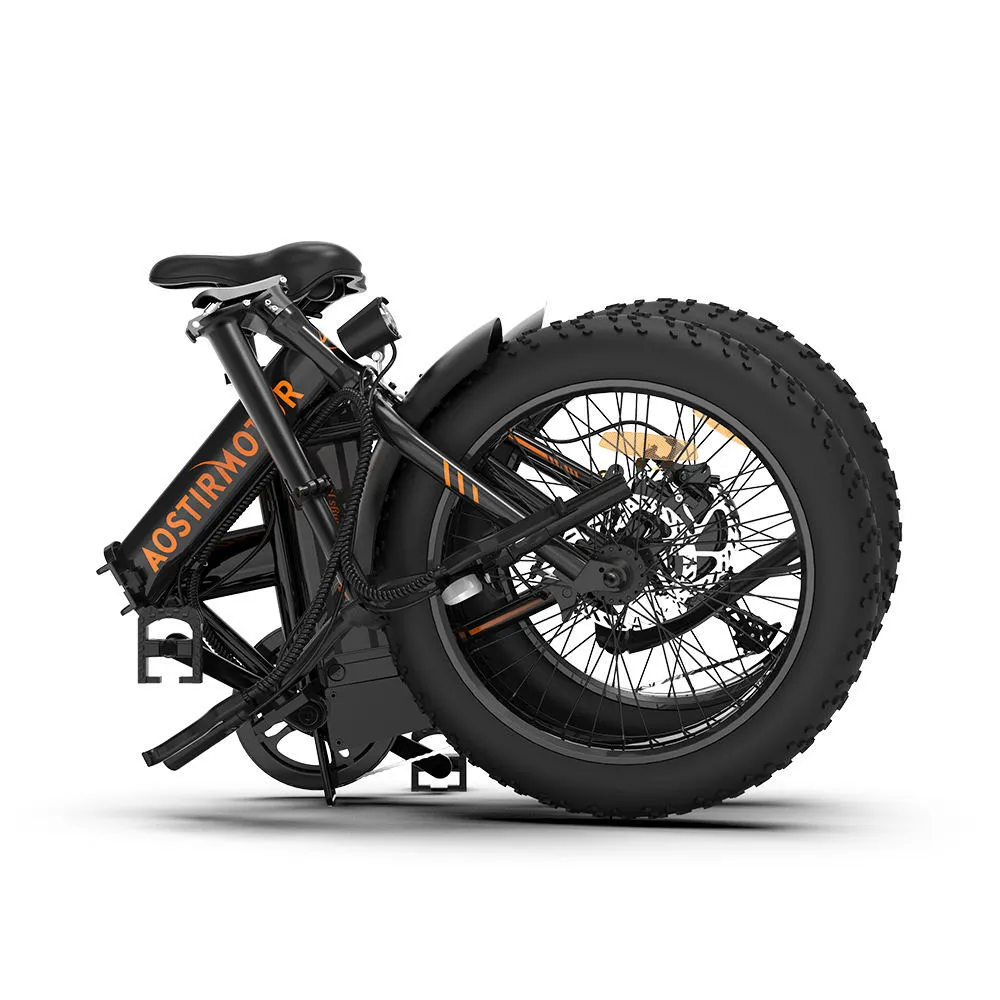

Folding Size | 90*70cm |
Package Size | 140*28*68cm |
Saddle Height | 80-92cm |
Weight Capacity | 300 LB |
Electric Bike | 1 |
Li-ion Battery | 1 |
Tool Kit | 1 |
Manual | 1 |
Charger | 1 |
Pedal | 1 |
