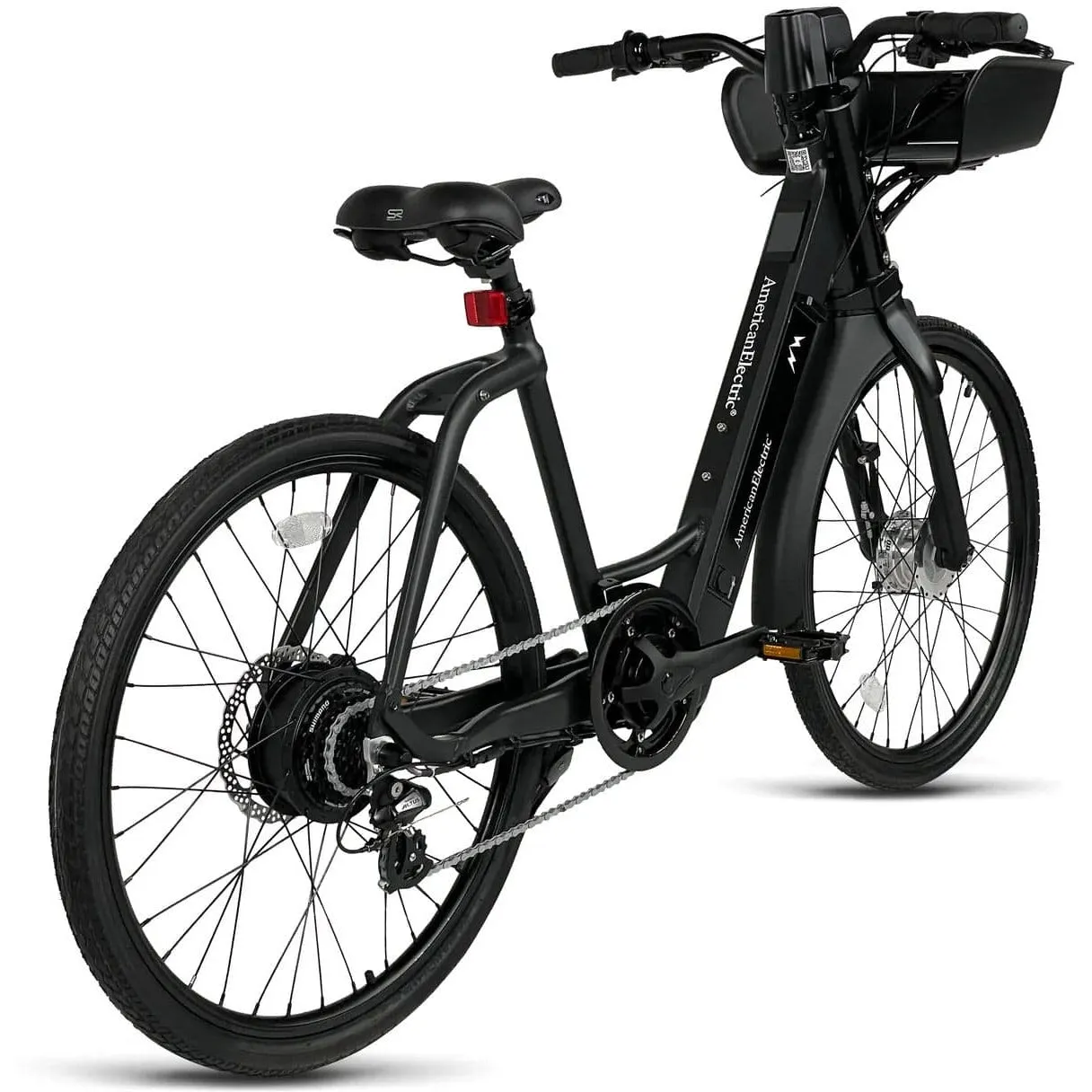

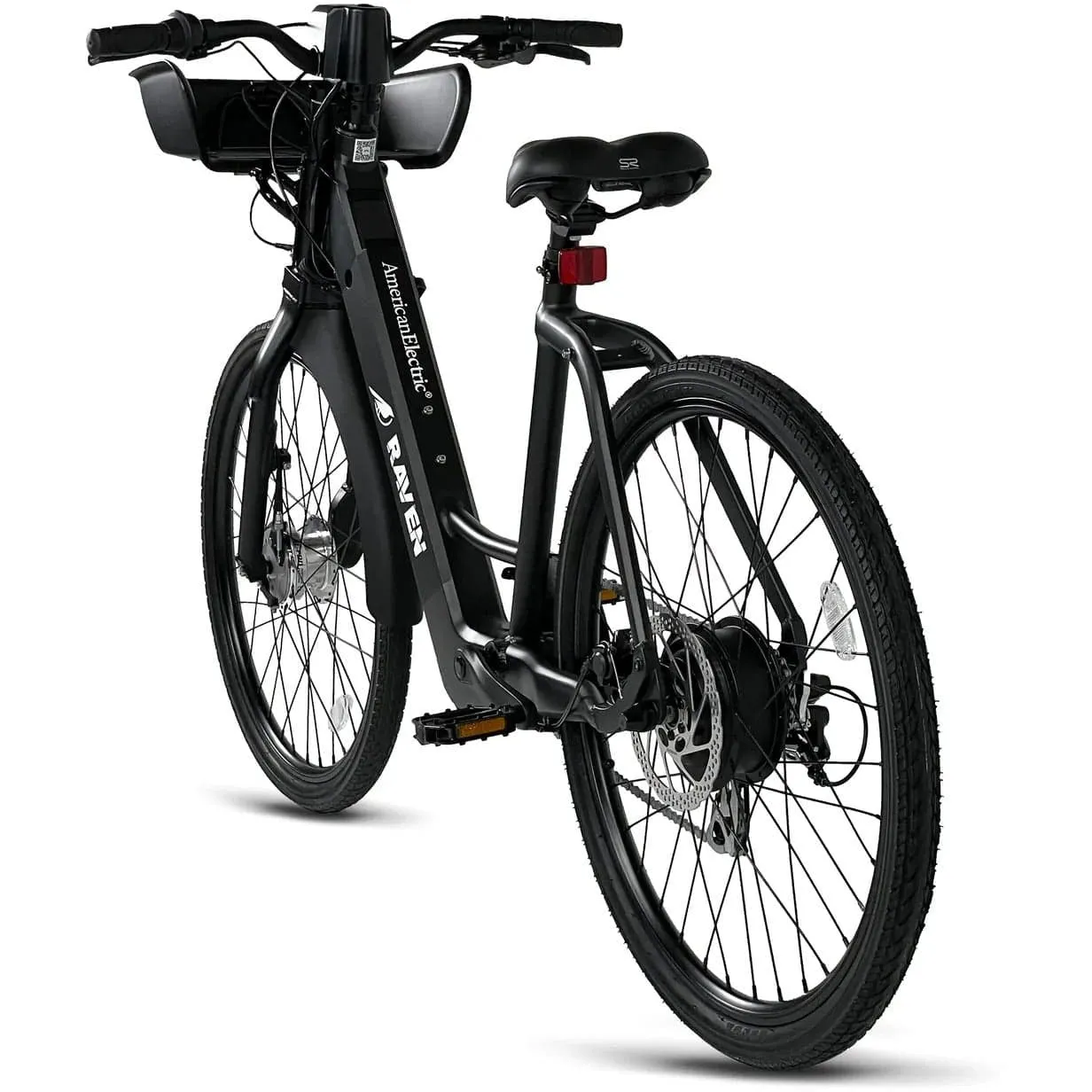

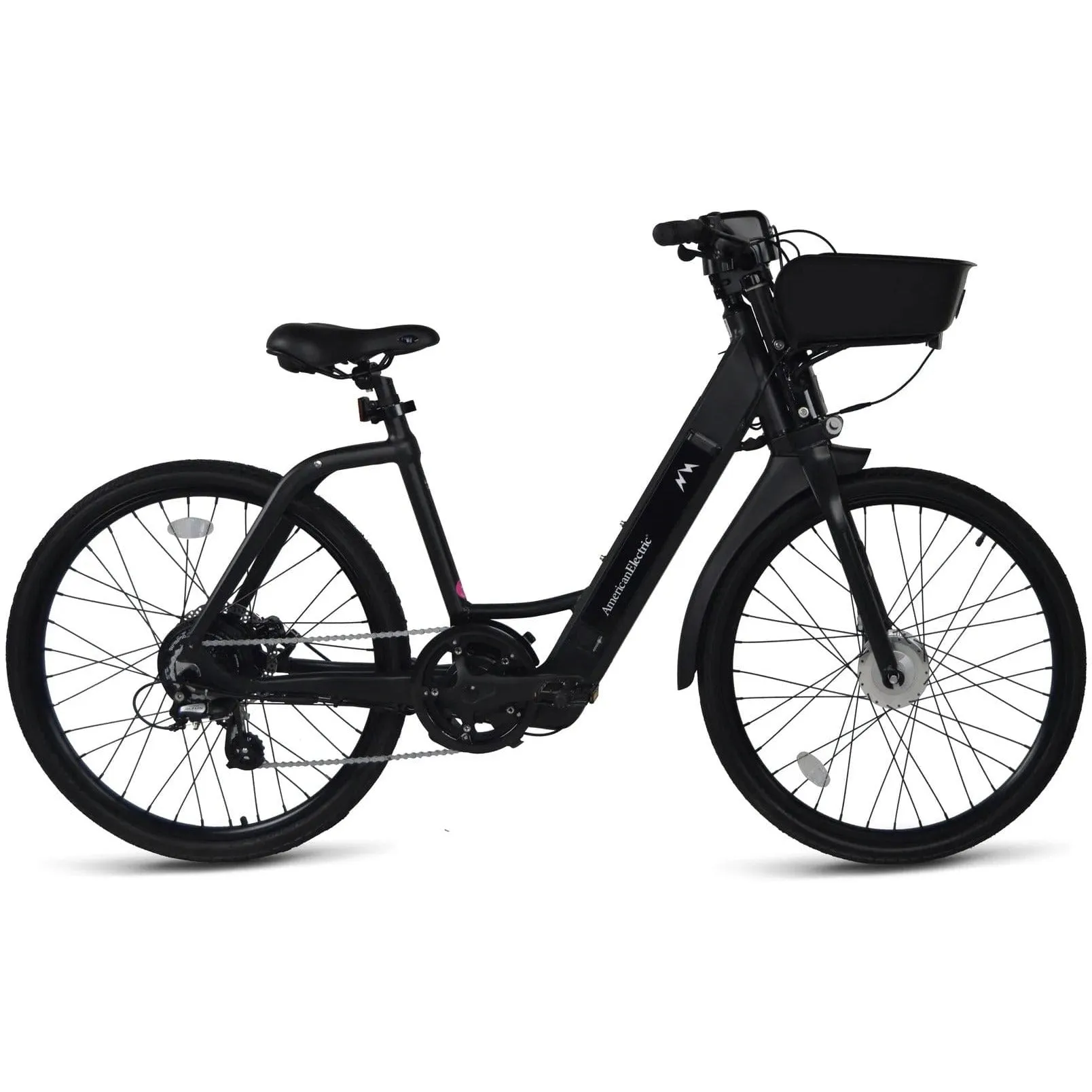

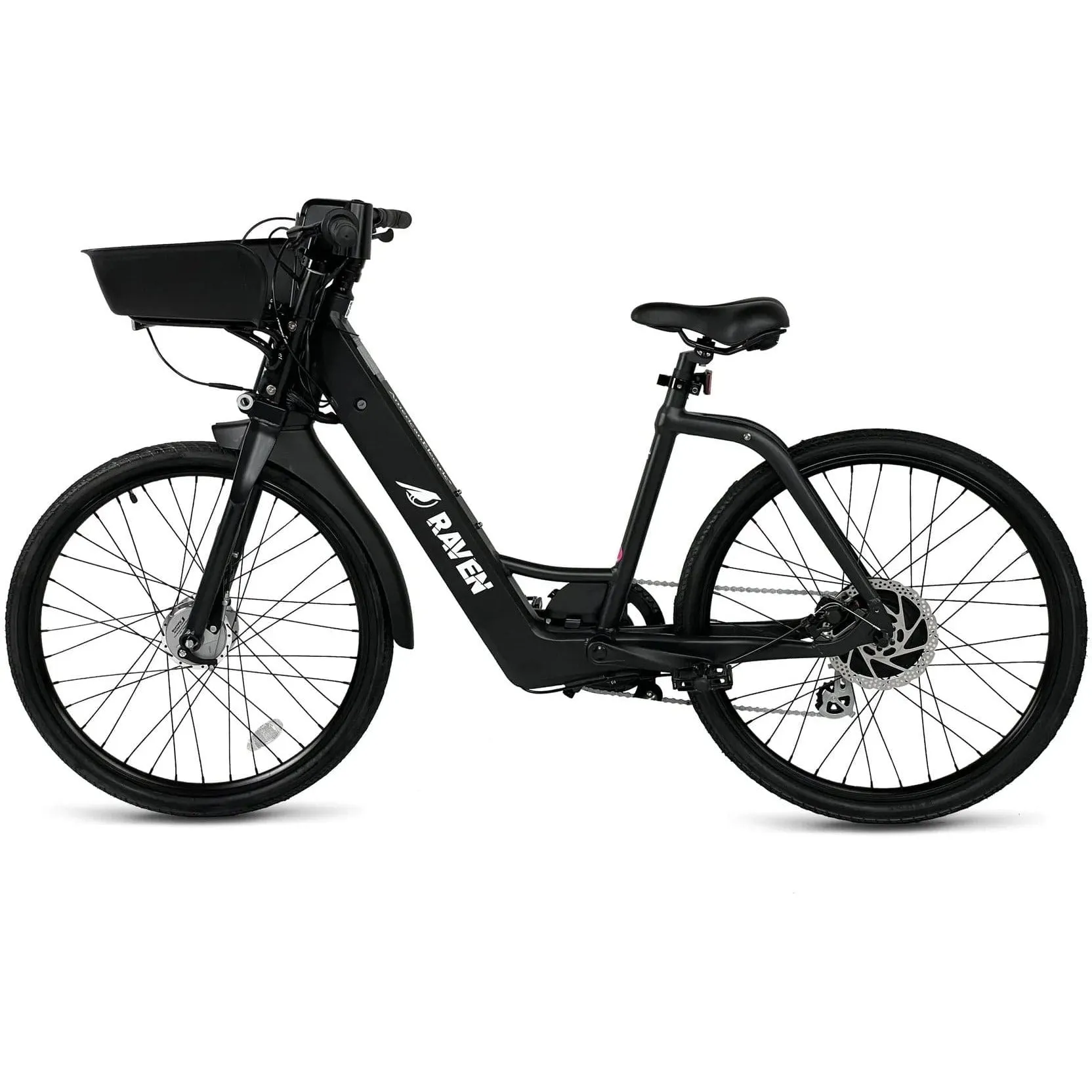

AmericanElectric Raven 36V/10.4Ah 350W Step-Thru Electric Bike
RAVEN 2022
With a sleek design and frame integrated battery, Raven takes your ride experience to the next level.
Raven has a step-thru frame making it comfortable and easy to use. Pedal-assist mode helps you get more mileage from every charge. You can take the battery out for convenient and safe charging.
STAY BALANCED
The integrated battery and balanced frame offer excellent weight distribution. And our rear hub motor gives you a boost from behind, instead of pulling you forward. The backlit LCD screen displays speed, trip distance, odometer, and battery level.
CONTROL YOUR BOOST
Raven e-Bike is available with 350-watt motors. This is the perfect amount of power to coast up hills and steep inclines with less effort and extend your range. Torque-sensing pedal-assist ensures a smooth and even ride as you push forward with each foot. Range of up to 50 miles.
JUICE UP ANYWHERE
Snap the removable and lockable battery in and out for easy charging and security. Plug it into any standard outlet for a boost on the fly. The battery fully charges in just 3.5 hours.
BRING IT ON BOARD
Raven e-bikes are public transit-friendly, making your trip from home or work to the station smooth and hassle-free.
KEEP IT SAFE
The battery is well integrated into the frame, so they’re less prominent to vandals. The battery is also locked, so the key is required to remove it.
SPECIFICATIONS
| Color | Black |
| Material | High-Quality Aluminum 6061 |
| Frame Size | 18' |
| Frame Style | High-Quality Step-Thru |
| Fork Style | Triple tube |

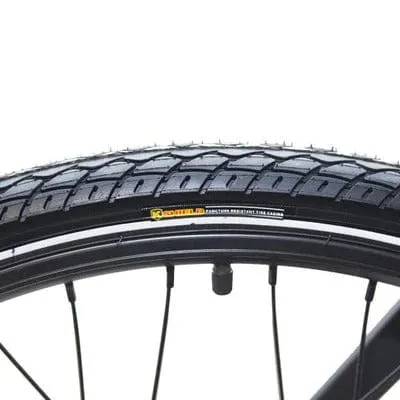

| Tires | 26' x 1.75' |
| Tubes | 26' x 1.75' |
| Rims | 26' x 18mm |
| Spokes | 13G Black Steel |

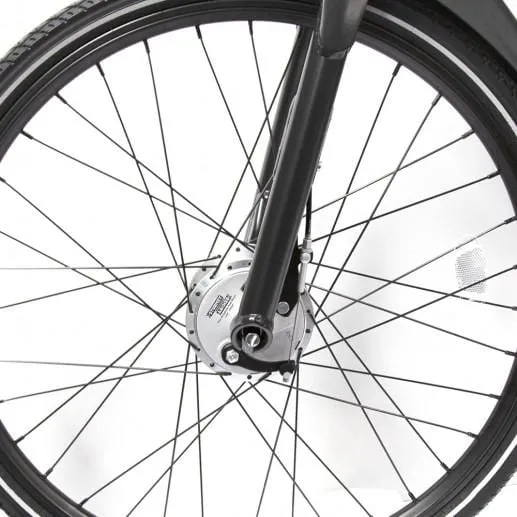

| Front Hub | Silver Dynamo Hub |
| Handlebar | Aluminum |
| Stem | Custom Triple Clamp |
| Headset | Sealed cartridge Bearing |
| Seatpost | Aluminum adjustable 8' |
| Seat Clamp | Aluminum, quick release |

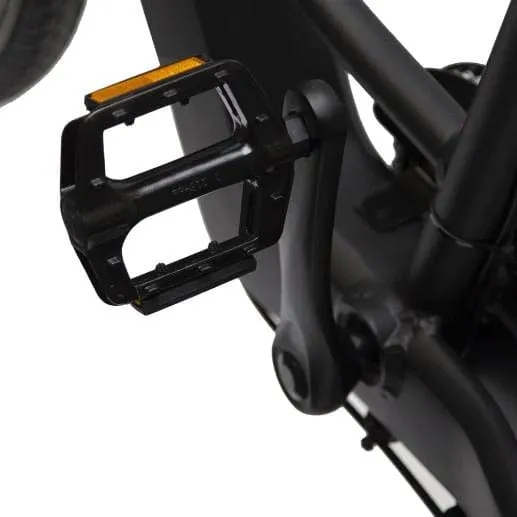

| Pedals | Black |
| Side Kickstand | Atran Velo |
| Brakes | Shimano rear calipers |

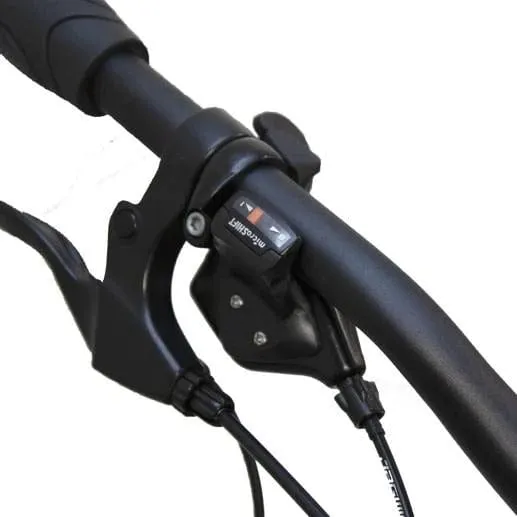

| Shifter | Microshift 8-speed Thumb Shift |
| Motor | 350W Hub Motor |
| Controller | 18 Motor Controller |
| Pedal Assist | Intelligent Pedal assist with a magnet cadence sensor |

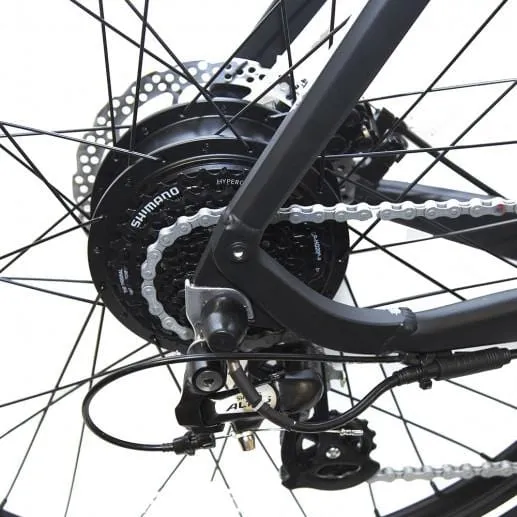

| Derailleur | Shimano Altus 8 Speed |
| Display | Frame integrated LCD color display with a charge indicator, speedometer, and auto-reset odometer |
| Charger |
36V, 2Ah Smart trickle charger. Operates on 100V - 120V AC power outlets. |
| Battery | 36V, 10Ah Lithium-Ion |
| Sensor | Torque Sensor in Crank Assembly |
| Weight | 48 lbs / 22 Kg |
| Load Capacity | 300 lbs / 136 kgs |
| Top Speed | 15 mph |
|
Distance/Range |
25 miles range |
Basket and Front fender Included
WARRANTY
- 1 YEAR ON THE FRAME
- 1 YEAR ON THE MOTOR
- 1 YEAR ON THE BATTERY
- 1 YEAR ON THE DRIVE TRAIN
